Configure Apache Knox authentication for AD/LDAP

Knox authentication configurations for LDAP and AD in Cloudera Manager.

SSO authentication for AD/LDAP

In the following sample you will see how to change the PAM authentication (which comes default with Knox) to LDAP authentication. It is as simple as removing the default PAM related configuration in ShiroProvider and add LDAP related properties (e.g. with demo LDAP server configuration):
role=authentication
authentication.name=ShiroProvider
authentication.param.sessionTimeout=30
authentication.param.redirectToUrl=/${GATEWAY_PATH}/knoxsso/knoxauth/login.html
authentication.param.restrictedCookies=rememberme,WWW-Authenticate
authentication.param.urls./**=authcBasic
authentication.param.main.ldapRealm=org.apache.knox.gateway.shirorealm.KnoxLdapRealm
authentication.param.main.ldapContextFactory=org.apache.knox.gateway.shirorealm.KnoxLdapContextFactory
authentication.param.main.ldapRealm.contextFactory=$ldapContextFactory
authentication.param.main.ldapRealm.contextFactory.authenticationMechanism=simple
authentication.param.main.ldapRealm.contextFactory.url=ldap://localhost:33389
authentication.param.main.ldapRealm.contextFactory.systemUsername=uid=guest,ou=people,dc=hadoop,dc=apache,dc=org
authentication.param.main.ldapRealm.contextFactory.systemPassword=${ALIAS=knoxLdapSystemPassword}
authentication.param.main.ldapRealm.userSearchBase=DC=EXAMPLE,DC=COM
authentication.param.main.ldapRealm.userSearchAttributeName=sAMAccountName
authentication.param.main.ldapRealm.userObjectClass=person
authentication.param.main.ldapRealm.groupSearchBase=OU=Groups,DC=EXAMPLE,DC=COM
authentication.param.main.ldapRealm.groupObjectClass=group
authentication.param.remove=main.pamRealm
authentication.param.remove=main.pamRealm.service

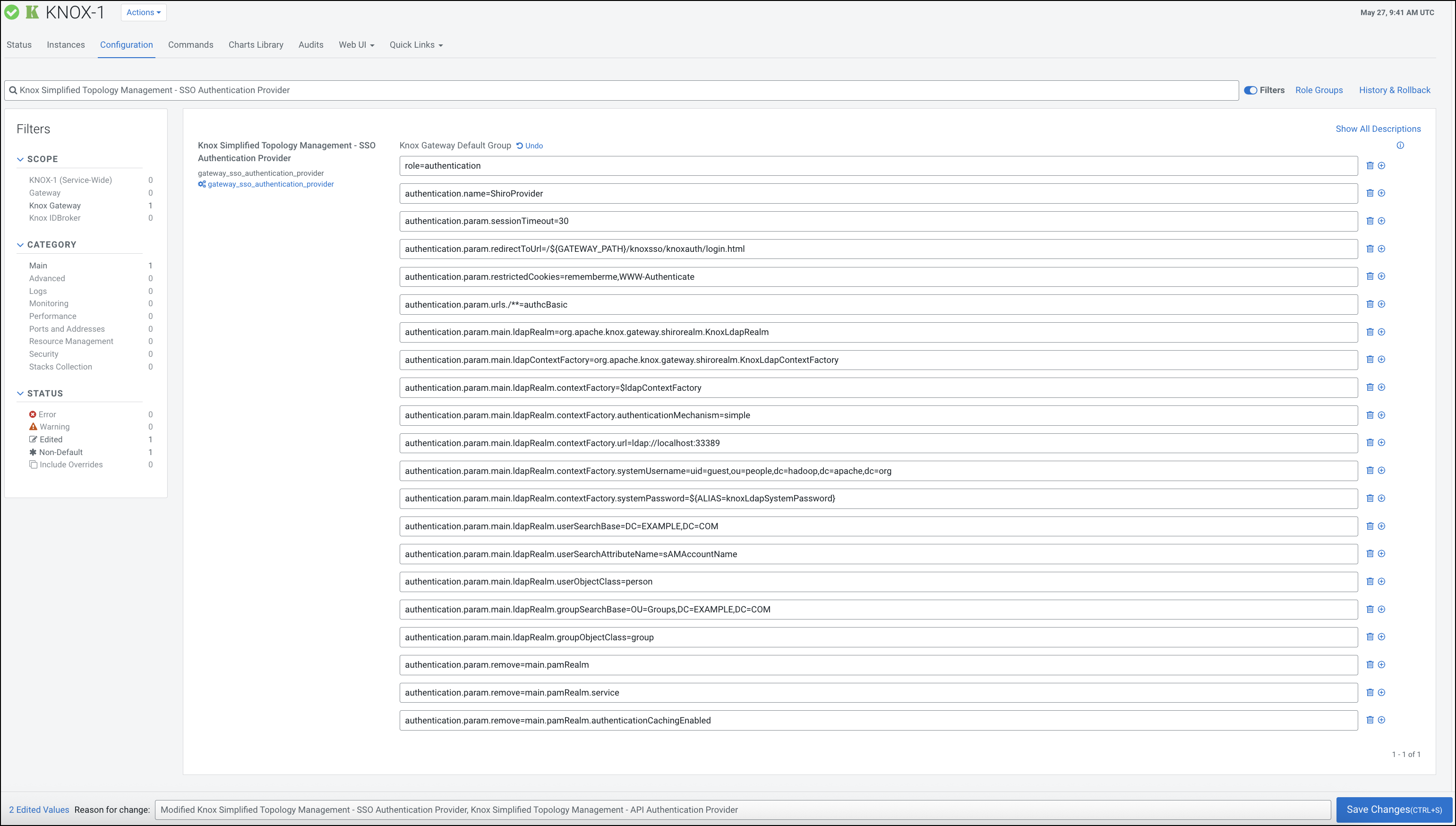

After you finished editing the properties you have to save the configuration changes. This will make the Refresh Needed stale configuration indicator appear. Once the cluster refresh finishes, all topologies that are configured to use Knox SSO will be authenticated by the configured LDAP server.
To verify:
$ curl -ku knoxui:knoxui 'https://johndoe-1.abc.cloudera.com:8443/gateway/admin/api/v1/providerconfig/knoxsso'
...
  }, {
    "role" : "authentication",
    "name" : "ShiroProvider",
    "enabled" : true,
    "params" : {
      "main.ldapContextFactory" : "org.apache.knox.gateway.shirorealm.KnoxLdapContextFactory",
      "main.ldapRealm" : "org.apache.hadoop.gateway.shirorealm.KnoxLdapRealm",
      "main.ldapRealm.contextFactory" : "$ldapContextFactory",
      "main.ldapRealm.contextFactory.authenticationMechanism" : "simple",
      "main.ldapRealm.contextFactory.systemPassword" : "${ALIAS=knoxLdapSystemPassword}",
      "main.ldapRealm.contextFactory.systemUsername" : "uid=guest,ou=people,dc=hadoop,dc=apache,dc=org",
      "main.ldapRealm.contextFactory.url" : "ldap://localhost:33389",
      "main.ldapRealm.userDnTemplate" : "uid={0},ou=people,dc=hadoop,dc=apache,dc=org",
      "redirectToUrl" : "/${GATEWAY_PATH}/knoxsso/knoxauth/login.html",
      "restrictedCookies" : "rememberme,WWW-Authenticate",
      "sessionTimeout" : "30",
      "urls./**" : "authcBasic"
    }

API authentication for AD/LDAP

In the following sample you will see how to change the PAM authentication (which comes default with Knox) to LDAP authentication:
role=authentication
authentication.name=ShiroProvider
authentication.param.sessionTimeout=30
authentication.param.urls./**=authcBasic
authentication.param.main.ldapRealm=org.apache.knox.gateway.shirorealm.KnoxLdapRealm
authentication.param.main.ldapContextFactory=org.apache.knox.gateway.shirorealm.KnoxLdapContextFactory
authentication.param.main.ldapRealm.contextFactory=$ldapContextFactory
authentication.param.main.ldapRealm.contextFactory.authenticationMechanism=simple
authentication.param.main.ldapRealm.contextFactory.url=ldap://localhost:33389
authentication.param.main.ldapRealm.contextFactory.systemUsername=uid=guest,ou=people,dc=hadoop,dc=apache,dc=org
authentication.param.main.ldapRealm.contextFactory.systemPassword=${ALIAS=knoxLdapSystemPassword}
authentication.param.main.ldapRealm.userSearchBase=DC=EXAMPLE,DC=COM
authentication.param.main.ldapRealm.userSearchAttributeName=sAMAccountName
authentication.param.main.ldapRealm.userObjectClass=person
authentication.param.main.ldapRealm.groupSearchBase=OU=Groups,DC=EXAMPLE,DC=COM
authentication.param.main.ldapRealm.groupObjectClass=group
authentication.param.remove=main.pamRealm
authentication.param.remove=main.pamRealm.service
Every change here goes directly into admin, metadata, and cdp-proxy-api topologies.
