Overview

Instead of using a basic username/password pair, you can improve security by generating Knox Gateway tokens. Tokens are more secure than plaintext username/password because they are signed, anonymized from the source data, and have a specified lifetime (by default, one hour).

About Knox gateway tokens

Before Cloudera Data Platform 7.1.9, Knox on Cloudera on premises had two default topologies: cdp-proxy and cdp-proxy-api. To enable passcode tokens, a third Knox topology was added: cdp-proxy-token. While very similar to cdp-proxy-api, the authentication provider for cdp-proxy-token is configured with the JWTFederation provider, so that newly generated tokens can be used.

View Knox token integration

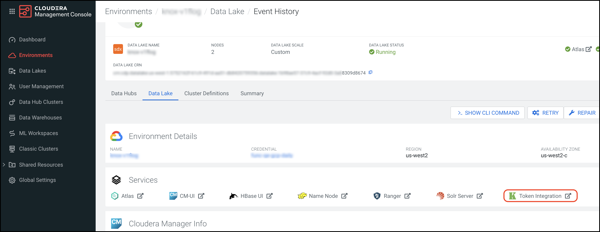

Knox token integration can be accessed via Cloudera Manager or the Knox homepage:

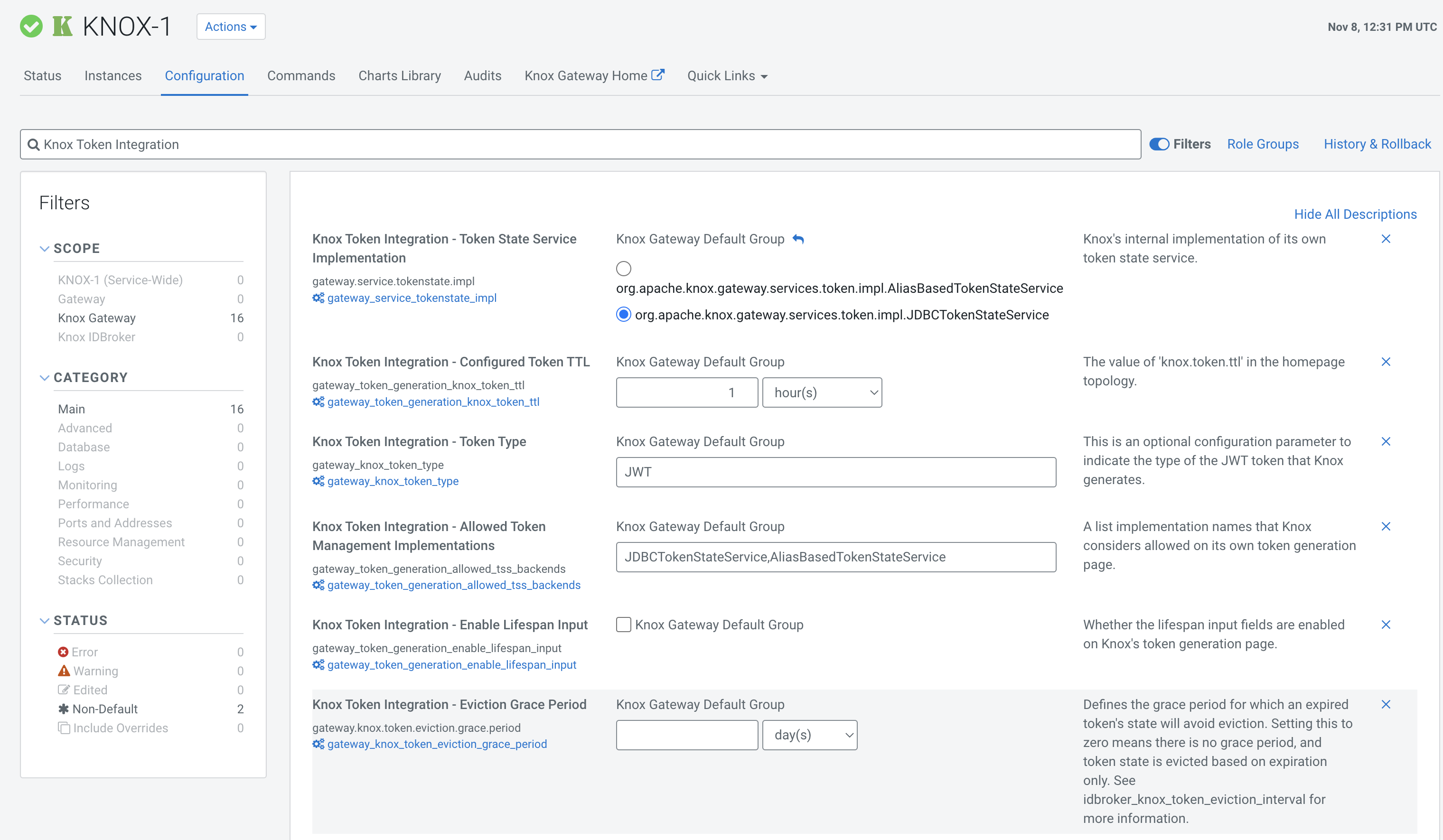

  • (Recommended) Cloudera Manager: Cloudera Manager > Clusters > Knox > Configuration and search for Knox Token Integration.
  • Navigate to Cloudera Manager > Knox. Perform one of the following actions, depending on whether there is one Knox Gateway instance or more than one on the cluster:
    • If only one Knox Gateway instance is installed on the cluster, select Knox Gateway Home.

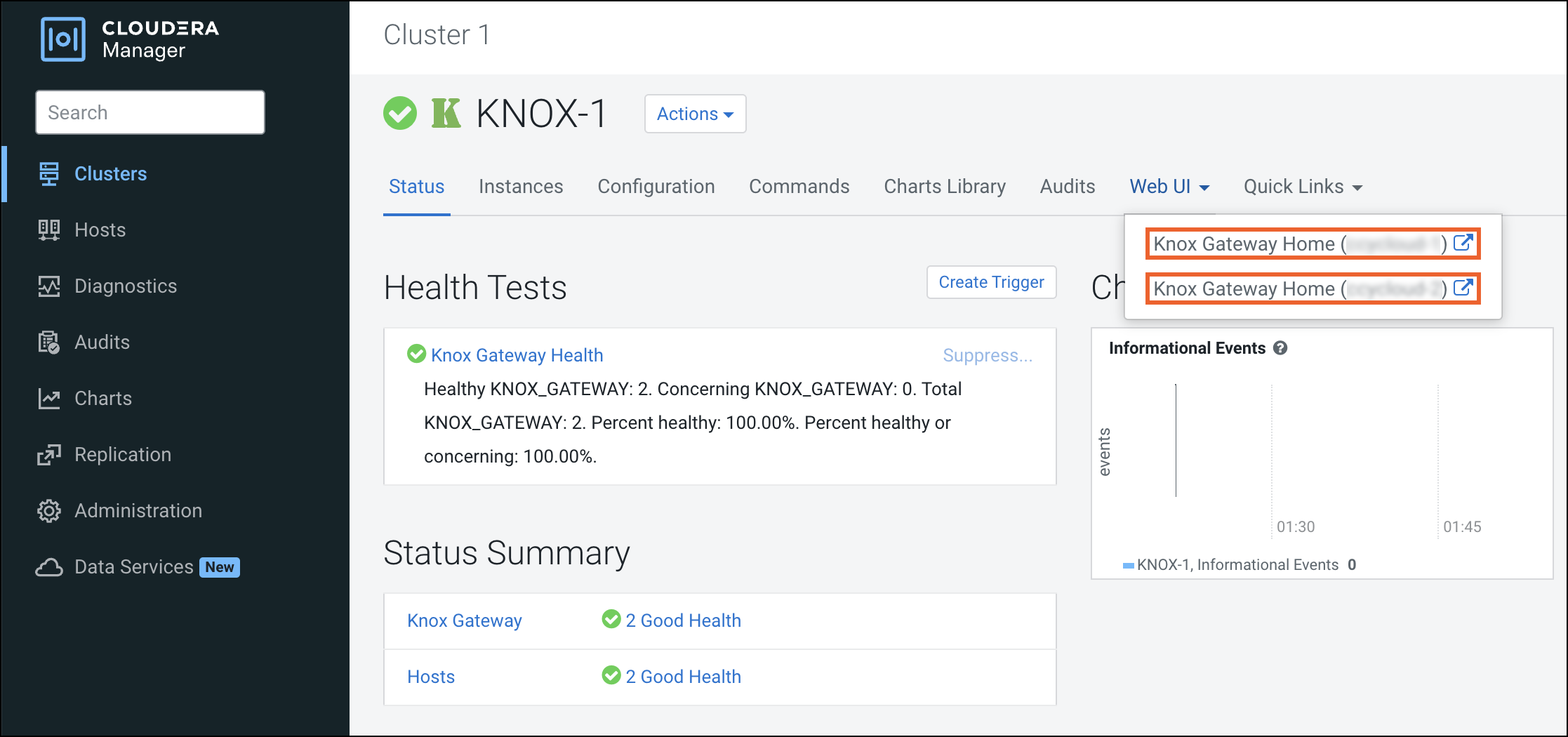

    • If Knox Gateway high availability (HA) is enabled and more than one Knox instance is installed on the cluster, click Web UI, and select any of the Knox Gateway Home links from the drop-down menu.


    This will bring you to the Knox homepage. There are two new links on your Knox homepage: Token Management and Token Generation.

    Knox token integration in Cloudera works out of the box using the Knox Token Generation page. However, the token integration API can be re-used in your own custom topology.
