Migrating HDFS data to Ozone end to end

Deploy Cloudera Migration Assistant, prepare Ozone layout, and run an HDFS to Ozone migration.

This end-to-end workflow combines deployment, platform preparation, discovery, and workload steps. Detailed reference procedures are reused from the Administrator and Migration guides.

Figure 1. Migration flow

Cloudera Migration Assistant migration flow

Verify supported platforms and migration paths in Supported platforms and migration paths before you start.

Phase 1 — Deploy the CMA Master and CMA Agents

    1. Download both CSD files to the /opt/cloudera/csd/ directory on the Server host.
      wget -P /opt/cloudera/csd/ https://archive.cloudera.com/cma/version/csd/CMA_MASTER-version-build.jar
      wget -P /opt/cloudera/csd/ https://archive.cloudera.com/cma/version/csd/CMA_AGENT-version-build.jar
      automatically detects the CSD files.
    2. Change the ownership of the CSD files.
      chown cloudera-scm:cloudera-scm /opt/cloudera/csd/CMA_MASTER-version-build.jar /opt/cloudera/csd/CMA_AGENT-version-build.jar
    3. Restart for the changes to take effect.
      systemctl restart cloudera-scm-server
    4. Log into .
    5. Restart the Cloudera Management Service.
    6. Go to Hosts > Parcels.
    7. Click Parcel Repositories & Network Settings.
    8. Add the Remote Parcel Repository URL for .
      https://archive.cloudera.com/cma/version/parcels/
    9. Click Save & Verify Configuration to commit the change.
    10. Click Close.
      You are redirected to the Parcels page.
    11. Search for , and click Download to download the parcel to the local repository.
    12. After download completes, click Distribute to distribute the parcel to all clusters.

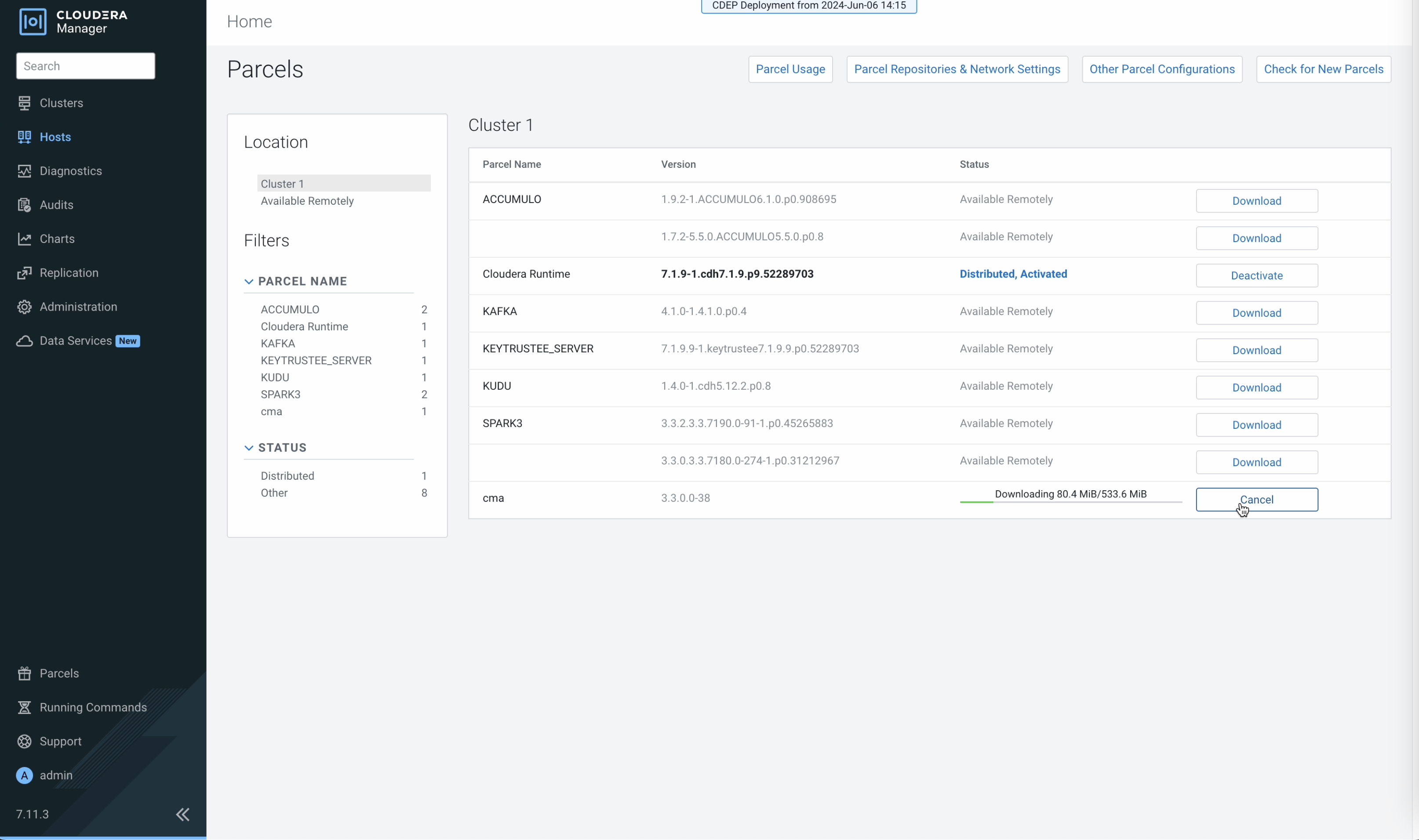

      Figure 2. Distribute the parcel

      Parcels page showing parcel distribution
    13. Click Activate to activate the parcel.
    14. Click OK when confirmation is required.
    15. Click Clusters in the left navigation pane.
    16. Select Add Service from the drop-down menu to the right of your cluster.
    17. From the list, select the service type to add, then click Continue. The single parcel provides two service types: CMA_MASTER (central control node) and CMA_AGENT (cluster-side executor).

      The Add Service wizard opens.

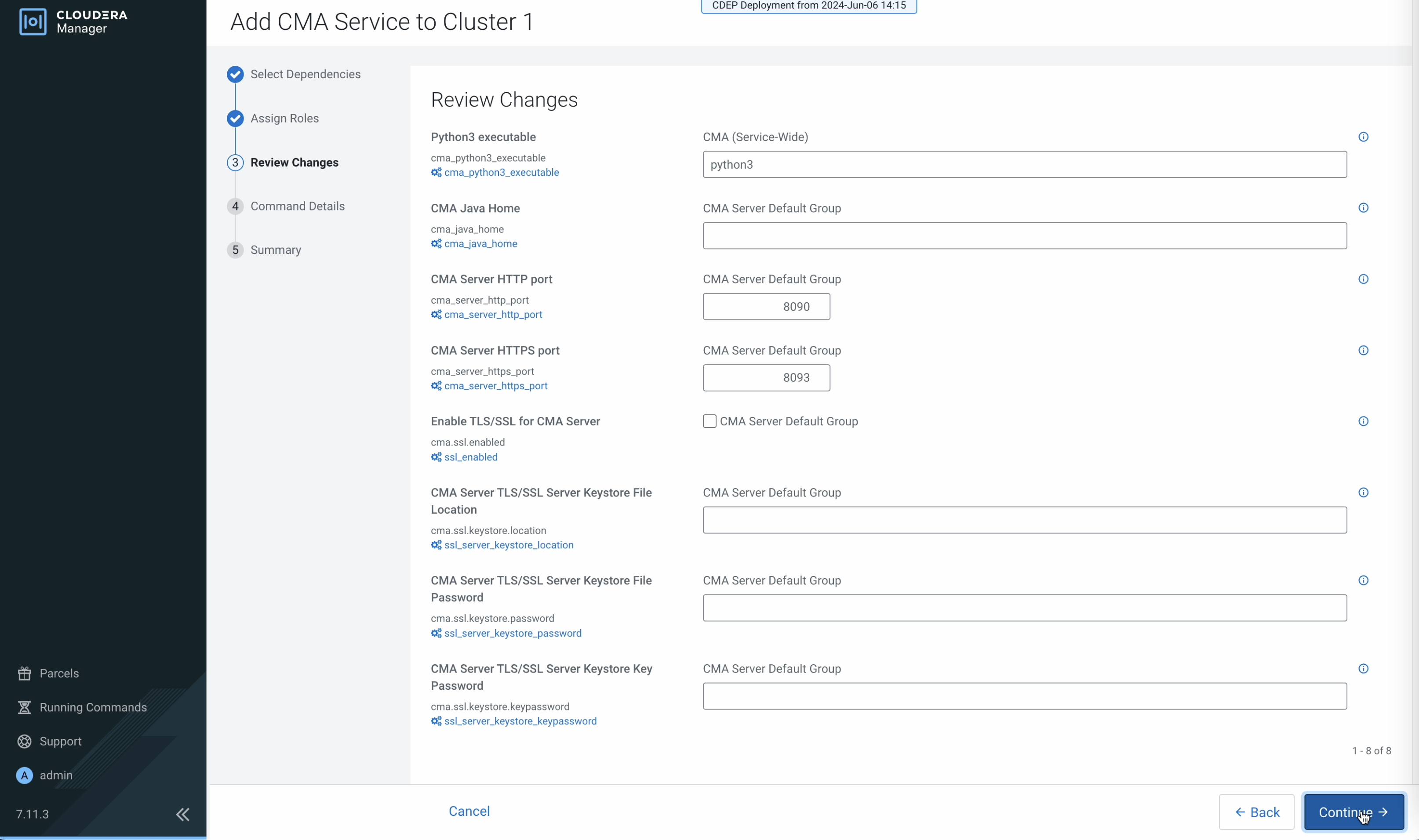

      Figure 3. Add service

      Add Service wizard showing service types
    18. Assign the service roles to the hosts where Python 3.11 and JDK 17+ are installed, and click Continue.
    19. Review service configurations and click Continue. At minimum, set OAuth2 client credentials (cma_client_secret, cma_agent_client_secret). If the is on a different cluster from the , also set Gateway URL (cma_gateway_url).

      The first run of the service starts. When the command finishes, the service is added to the cluster.

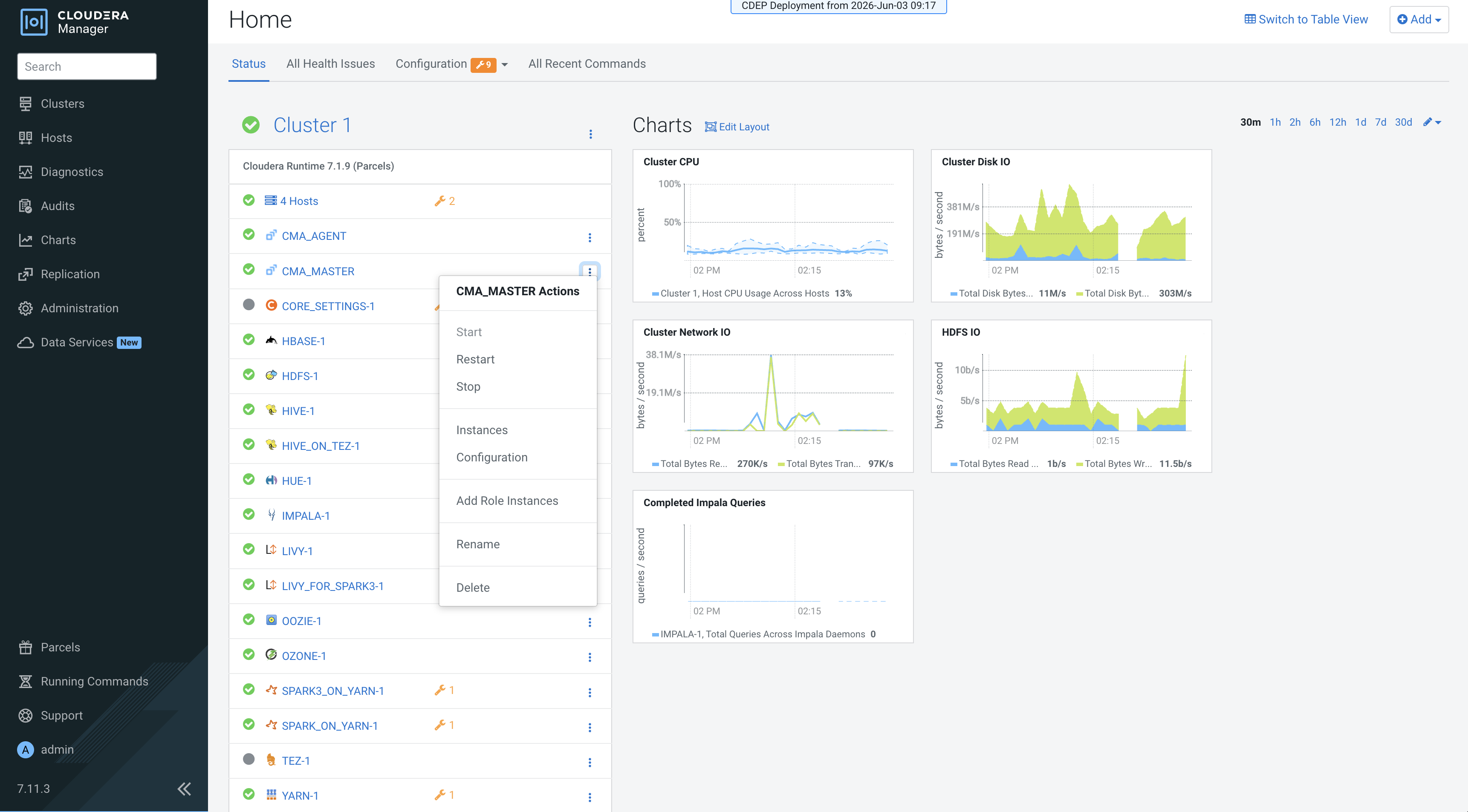

      Figure 4. service started

      showing service first run completed
    20. Repeat steps 16–19 to add the other service type if needed (for example, add CMA_AGENT after CMA_MASTER, or vice versa).
    21. Go back to the cluster homepage, open the service page, and click the Server UI tab to open the UI.

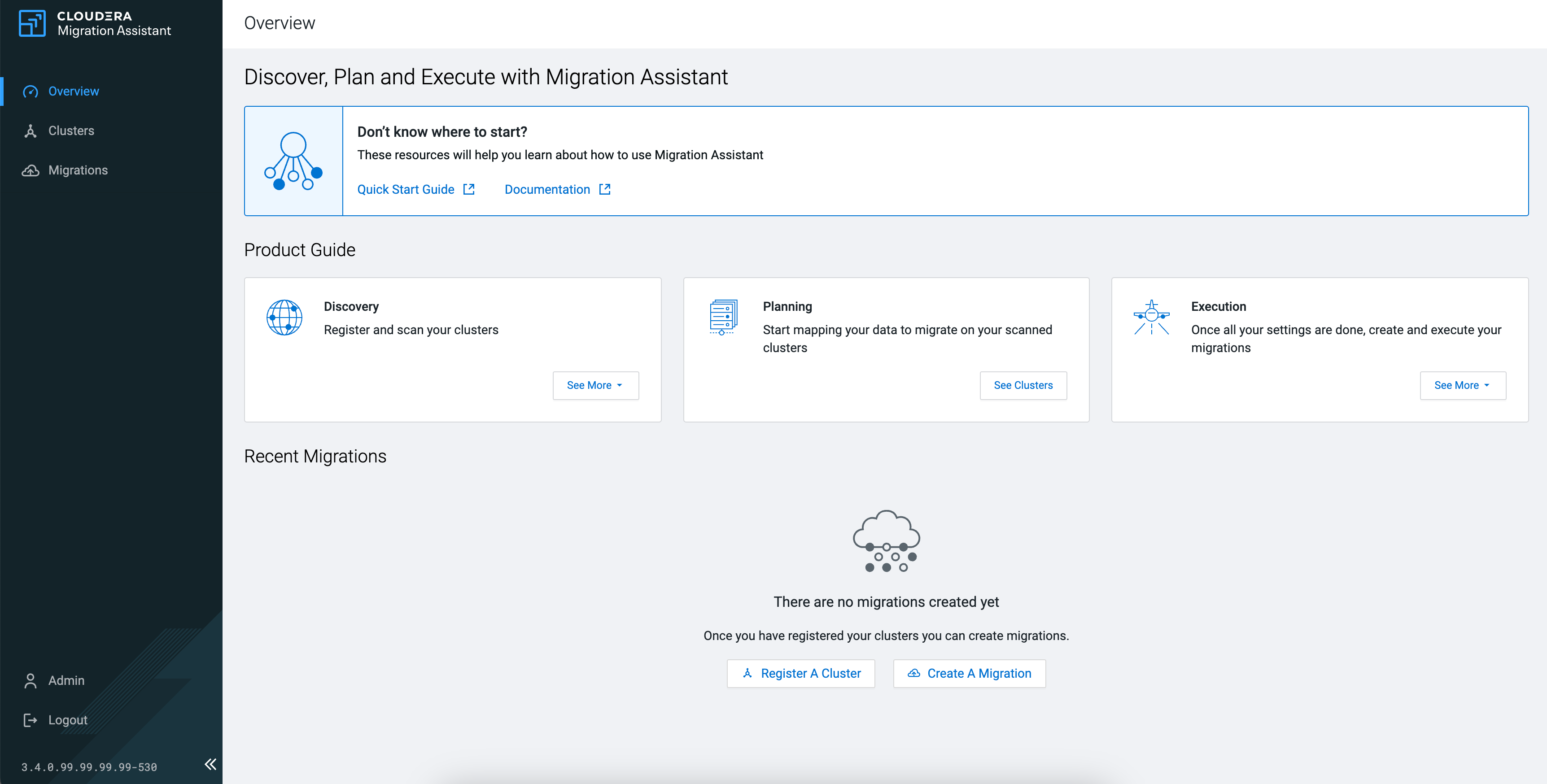

      Figure 5. landing page

      web UI landing page after parcel deployment
    22. Set the service dependency to none in the service configuration in Cloudera Manager because Cloudera Manager cannot discover the Master automatically across clusters.
    23. Set the Gateway URL to cma_gateway_url in the service configuration.
      curl -sk https://<master-host>:8093/api/agent/config

    Phase 2 — Configure Cloudera Replication Manager on the target cluster

      1. Enable the HDFS to Ozone flag on the Server host.
        For HDFS to Ozone migrations, requires the CMF_FF_API_H2O_REPLICATION feature flag to be enabled. Without this flag, the API endpoints for HDFS to Ozone replication are not available.
        1. Append the following line to /etc/default/cloudera-scm-server on the Server host:
          export CMF_FF_API_H2O_REPLICATION=true
        2. Restart the Server.
          sudo systemctl restart cloudera-scm-server
        3. Wait for to become available again on port 7180 before proceeding with the setup.
      2. Register the instance in the UI to allow to locate and communicate with the replication service.
        1. In the Web UI, go to Settings.
        2. Go to the App Access section.
        3. Configure your connection fields using one of the following validation methods:

          • If has already detected a service on one of the registered clusters, select it from the Suggestions drop-down list to auto-fill the form.

          • Manually enter your target replication parameters in the following fields:

            • App URL — The full URL of the REST API, including protocol, host, and port, for example, https://rm-host.example.com:9011.

            • App username — The username for authenticating with the API.

            • App password — The password for authenticating with the API.

        4. Click Save and Push to Agents.

      Prepare Ozone storage on the target (before Phase 6)

        Known limitations

        No input validation

        does not validate layout definitions for volumes, buckets, or quotas.

        No feasibility pre-check

        does not verify whether the specified settings are feasible on the target cluster.

        Limited migration testing

        Ozone Layout Provisioning has not been tested as part of the end-to-end migration workflow.

        Use this feature for evaluation purposes only. Behavior and APIs may change in future releases.

        provides a Storage Layout Editor for designing and deploying Ozone storage structures.

        Both the Storage Layout Editor and the Ozone browser use colors and text styles to indicate the status of volumes, buckets, and folders. The two views display different stages of the same lifecycle.

        The Storage Layout Editor displays both unsaved (local) changes and changes that were saved to the database but not yet deployed to the cluster.

        Table 1. Storage Layout Editor statuses
        Status Color Style Description
        New or locally modified (unsaved) Light red Normal Node was created or edited in the editor but not yet saved to the database.
        Locally deleted (unsaved) Light red Strikethrough Node was deleted in the editor but the deletion has not been saved yet.
        Saved, pending CREATE Red Normal Node was saved to the database and is queued for deployment to the cluster.
        Saved, pending MODIFY Default Italic Node was saved to the database and is queued for deployment to the cluster.
        Saved, pending DELETE Default Strikethrough Node was saved as a deletion and is queued for removal from the cluster.
        Saved, no pending event Default Normal Node is deployed and up to date.

        The Ozone browser only displays nodes that have been saved to the database. Unsaved editor changes are not visible here. If you have unsaved changes in the editor, the browser shows the last saved state of those nodes until you save.

        Table 2. Ozone browser statuses
        Status Color Style Description
        Pending CREATE (saved, not yet deployed) Red Normal Node was created and saved, awaiting deployment to the cluster.
        Pending MODIFY (saved, not yet deployed) Default Italic Node was modified and saved, awaiting deployment to the cluster.
        Pending DELETE (saved, not yet deployed) Default Strikethrough Node is queued for deletion. All children of a pending-delete node are also displayed with strikethrough.
        No pending event Default Normal Node is deployed and up to date.
        1. Plan and deploy an Ozone storage layout using the Storage Layout Editor.
          1. Go to the Layout tab in the cluster view to access the Storage Layout Editor.

            Design the layout structure in the Plan tab and apply the layout to the cluster in the Deploy tab.

            The Plan tab displays the following panels.

            • Left panel (Available Templates) — Contains reusable volume structures you can drag into the editor.

            • Right panel (Editor) — Is the working area where you build the target Ozone structure.

        2. Add volumes and buckets manually.
          1. Select the cluster on the Clusters page.
          2. Go to the Layout tab.
          3. In the Plan tab, click the Add Volume button at the top of the editor panel.
          4. Provide the volume properties in the drawer that opens, then click Create.
          5. To add buckets to a volume, select the volume node and click Add Bucket.
          6. To add folders to a bucket, select the bucket node and click Add Folder.
          7. Click Save Plan in the toolbar to save all pending changes to the database.
        The Available Templates panel on the left displays reusable volume structures. You can use the following template types:

        • System templates — Built-in templates provided by . These cannot be deleted.

        • User templates — Templates you create from volumes in the editor. These can be deleted.

        1. Search and filter templates.

          Use the Search field at the top of the Available Templates panel to filter templates by name. Use the Type drop-down list to filter by template type.

        2. Drag a template into the editor.
          1. In the Available Templates panel, click the template name to expand it and see its volumes, buckets, and folders.
          2. Drag the node you want (volume, bucket, or folder) by its drag handle into the editor panel on the right.

            You can drag any node from a template directly into the editor to add it to the layout. Volumes, buckets, and folders can all be dragged individually using the drag handle (the grip icon on the right side of each node). When you drag a node, the full subtree (all its children) moves with it.

        3. Save a volume as a template.

          You can save any volume in the editor as a template to reuse it later. Saving a volume as a template stores the entire volume structure, including its buckets and folders, in the Available Templates panel.

          1. In the editor, hover over the volume node you want to save.
          2. Click Add to Template that is the download icon that is displayed on hover.
          3. Provide a name for the template.
          4. Click Save.

            The template is displayed in the Available Templates panel and is stored in the database.

        4. Delete a user template.
          1. In the Available Templates panel, hover over the template name.
          2. Click the Delete icon next to the template name.
          3. Click Delete to confirm the deletion.
        5. Import a layout from YAML or JSON.

          You can define a complete Ozone storage structure in a YAML or JSON file and import it into the editor.

          This example shows a YAML file defining volumes, buckets, and folders in a hierarchical structure.
          volumes:
          - name: "my-volume"
            namespace-quota: 100
            space-quota: "10TB"
            user: "admin"
            buckets:
              - name: "my-bucket"
                create-snapshot: true
                namespace-quota: 1000
                space-quota: "1TB"
                user: "admin"
                layout: "FILE_SYSTEM_OPTIMIZED"
                replication-type: "RATIS"
                replication: "THREE"
                bucketkey: "my-encryption-key"
                enforcegdpr: false
                folders:
                  - name: "data"
                    folders:
                      - name: "raw"
                      - name: "processed"
                  - name: "logs"
          1. In the Plan tab, click Import Structure in the toolbar.
          2. Upload the YAML or JSON file or paste the YAML or JSON content.
          3. Click Upload.

            validates the structure and loads the volumes, buckets, and folders into the editor. Validation errors are displayed if the YAML or JSON is malformed or contains invalid values.

          4. Click Save Plan to save the imported structure to the database.
        6. Deploy the layout to the cluster.
          1. Click the Deploy tab in the Layout page.

            The Deployment Queue table displays all saved volumes, buckets, and folders that have pending changes. The CREATE, MODIFY, or DELETE events are not yet applied to the cluster.

          2. Review the pending changes in the Volumes, Buckets, and Folders tables.
          3. Click Deploy to Ozone.
          sends the deploy command to the on the cluster. Monitor progress in the Commands tab on the cluster view. The agent processes the changes in the following order:
          1. Create, update, or delete volumes.
          2. Create, update, or delete buckets.
          3. Create, update, or delete folders.

        Phase 3 — Register source and target clusters

          1. In on the source cluster, select Add Service and select CMA_AGENT.
          2. Configure the required properties.
            Table 3. configuration properties
            Property Description
            cma_gateway_url URL of the Gateway, for example, https://master-host:8093. Required when the is on a different cluster than the . The agent uses this URL to discover the Master host, gRPC port, and Auth Server URI automatically through the discovery endpoint (GET /api/agent/config). When connecting from a different cluster, set the service dependency to none in .
            cm_username administrator user name.
            cm_password administrator password.
            cma_user_home Home directory for the cma-agent user, for example, /var/lib/cma-agent.
          3. Set cma_gateway_url when the is on a different cluster than the .
          4. Start the service.
          5. Wait for the agent to connect to the and finish the registration automatically.

          Phase 4 — Scan clusters

            1. Navigate to the Clusters page and click the cluster you want to scan.

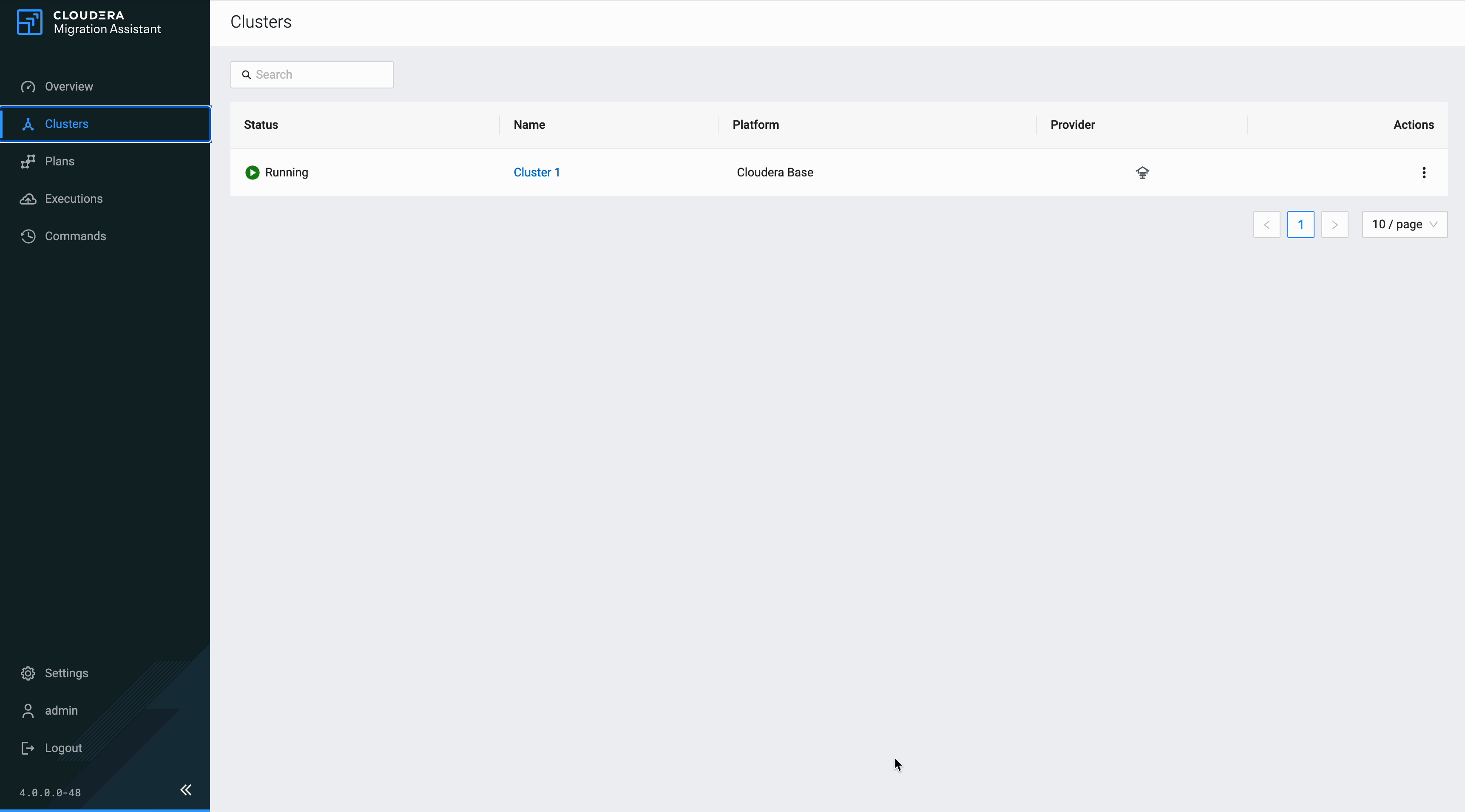

              Figure 6. Clusters page

              Clusters page
            2. On the cluster detail page, find the Scanning section, which lists the available scan types for your cluster. Click the configuration icon on the right side of the scan type you want to trigger.

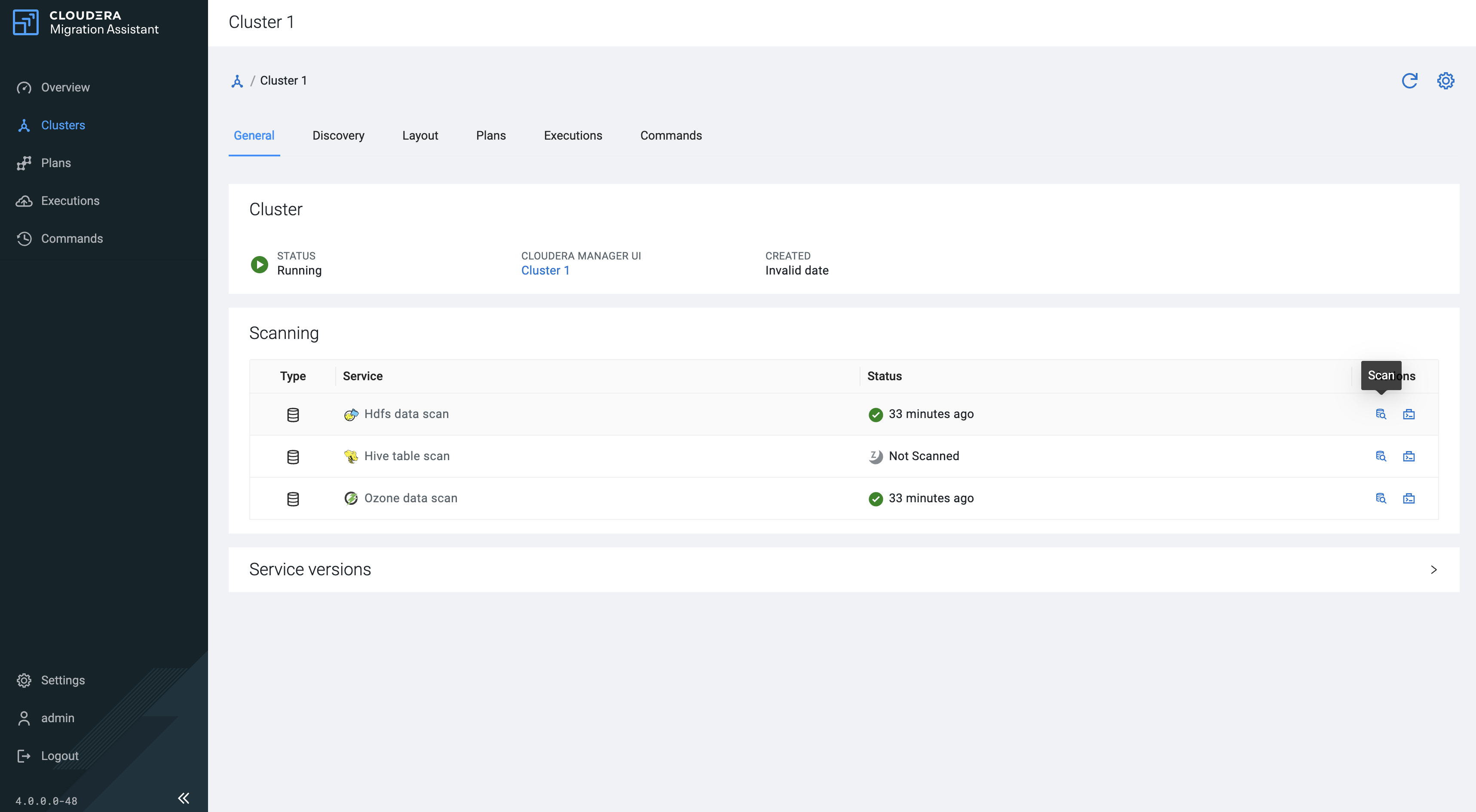

              Figure 7. cluster scanning

              cluster scanning
            3. In the scan configuration drawer, configure the scan parameters (for example, scan path, scan type, scan depth) and click Scan Selected.

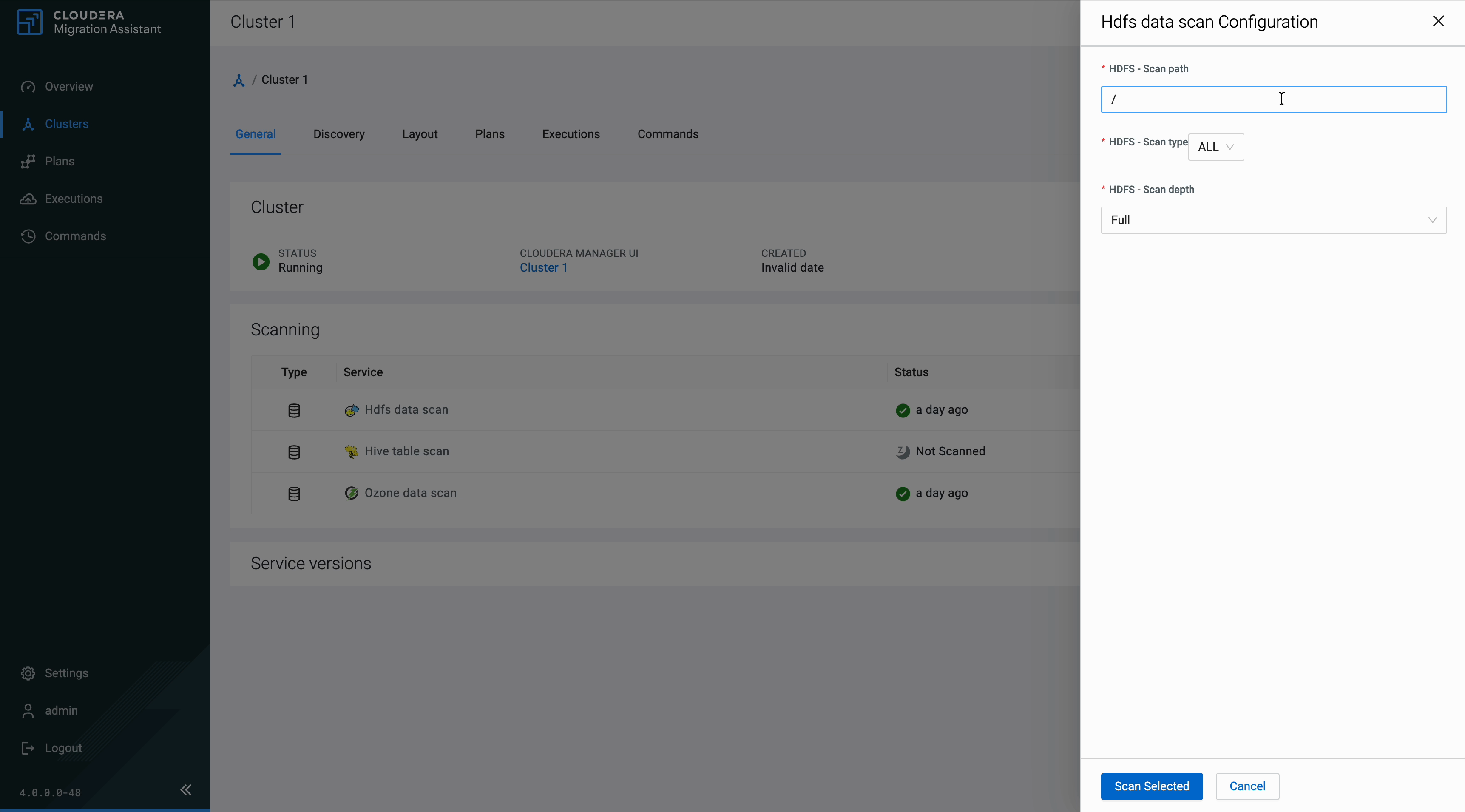

              Figure 8. scan configuration

              scan configuration
            4. The scan starts and the status changes to Initializing. Track scan progress by clicking the Commands tab, which shows a badge with the number of active commands.

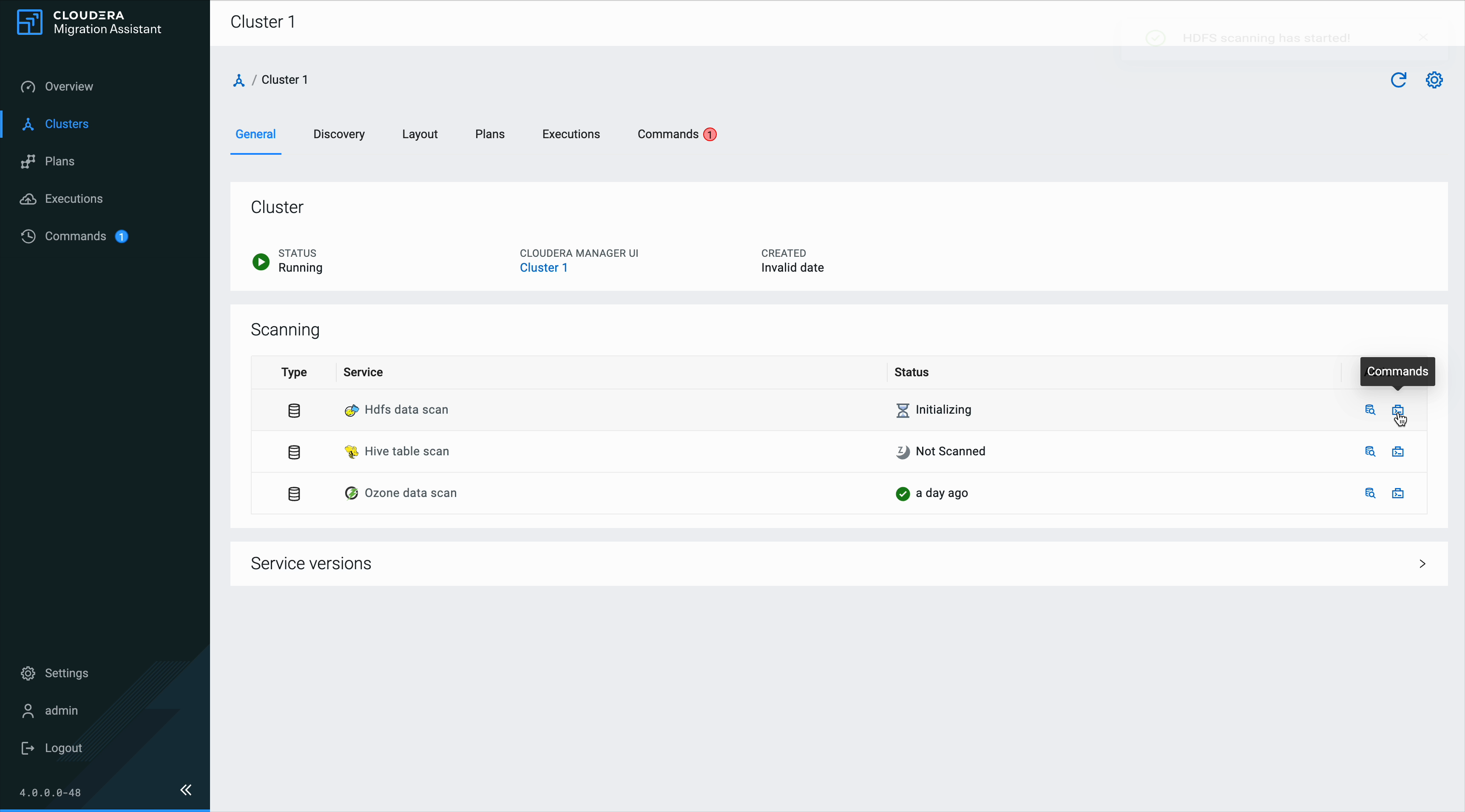

              Figure 9. scan in progress

              scan in progress
            5. On the Commands tab, expand a command to view its Output Log, Error Log, and Configuration.

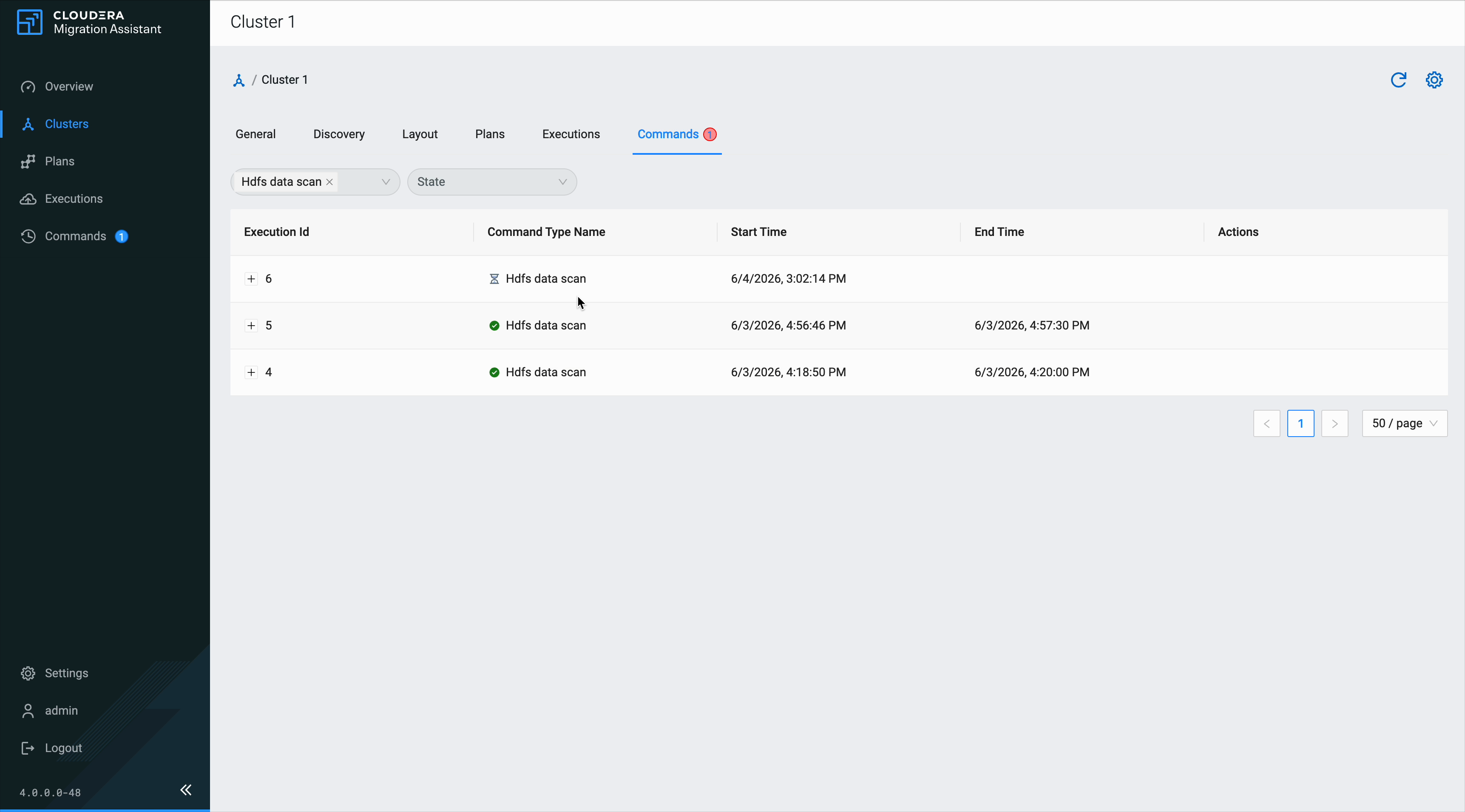

              Figure 10. scan commands

              scan commands

            Phase 5 — Create collections (optional)

              1. Click the + icon next to Collections in the sidebar.
              2. In the Collection Details drawer, enter a Collection name and select a Color for identification.

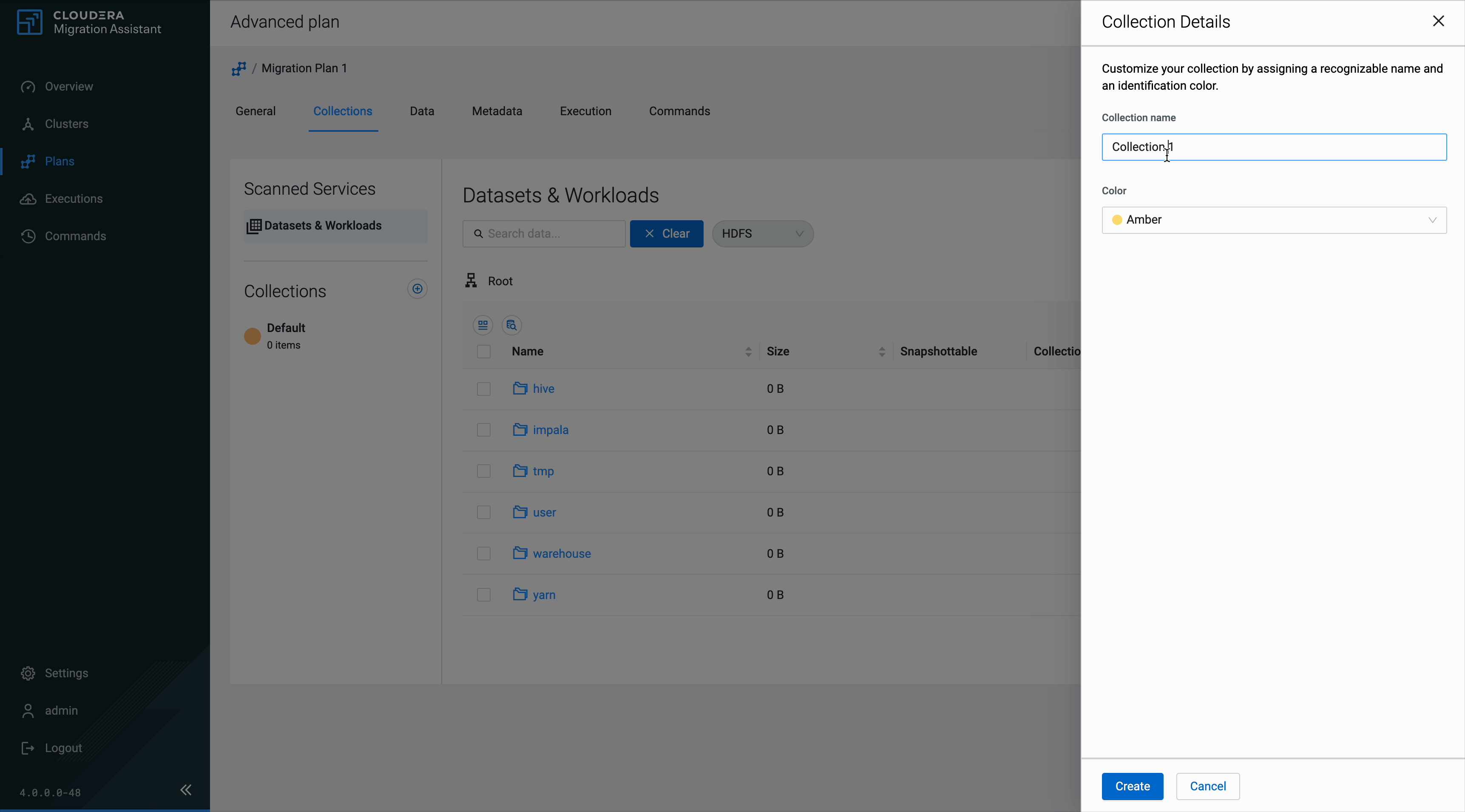

                Figure 11. create collection

                create collection
              3. Click Create.

                The new collection appears in the sidebar with 0 items.

              4. Browse the data tree to find the items you want to migrate. Click folder names to navigate deeper into the hierarchy.
              5. Select items using the checkboxes next to each item.
              6. Click the collection icon that appears on the selected item row.
              7. In the Add/Remove Collections popup, check the collections you want to assign the item to.
              8. Click Apply.

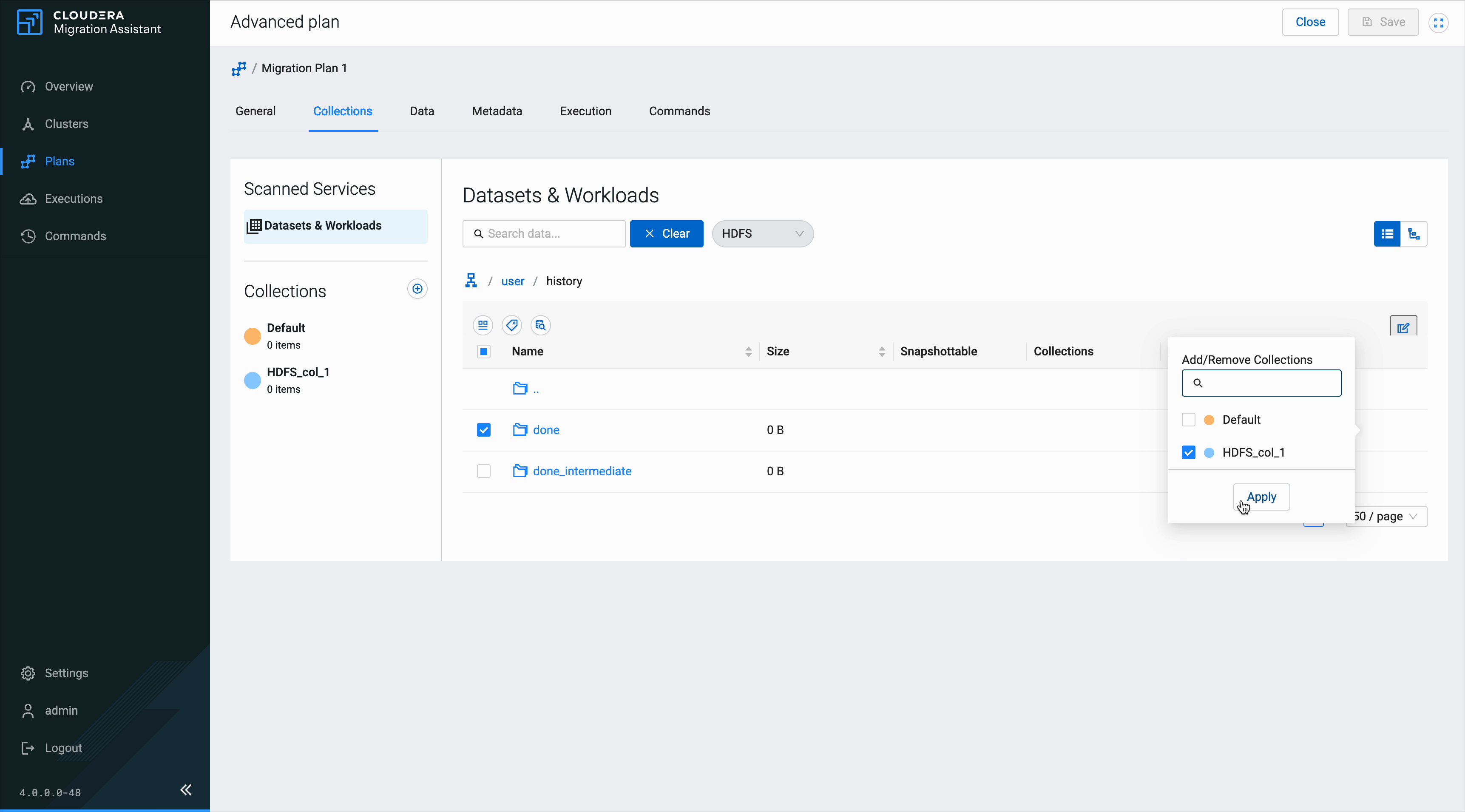

                Figure 12. assign to collection

                assign to collection

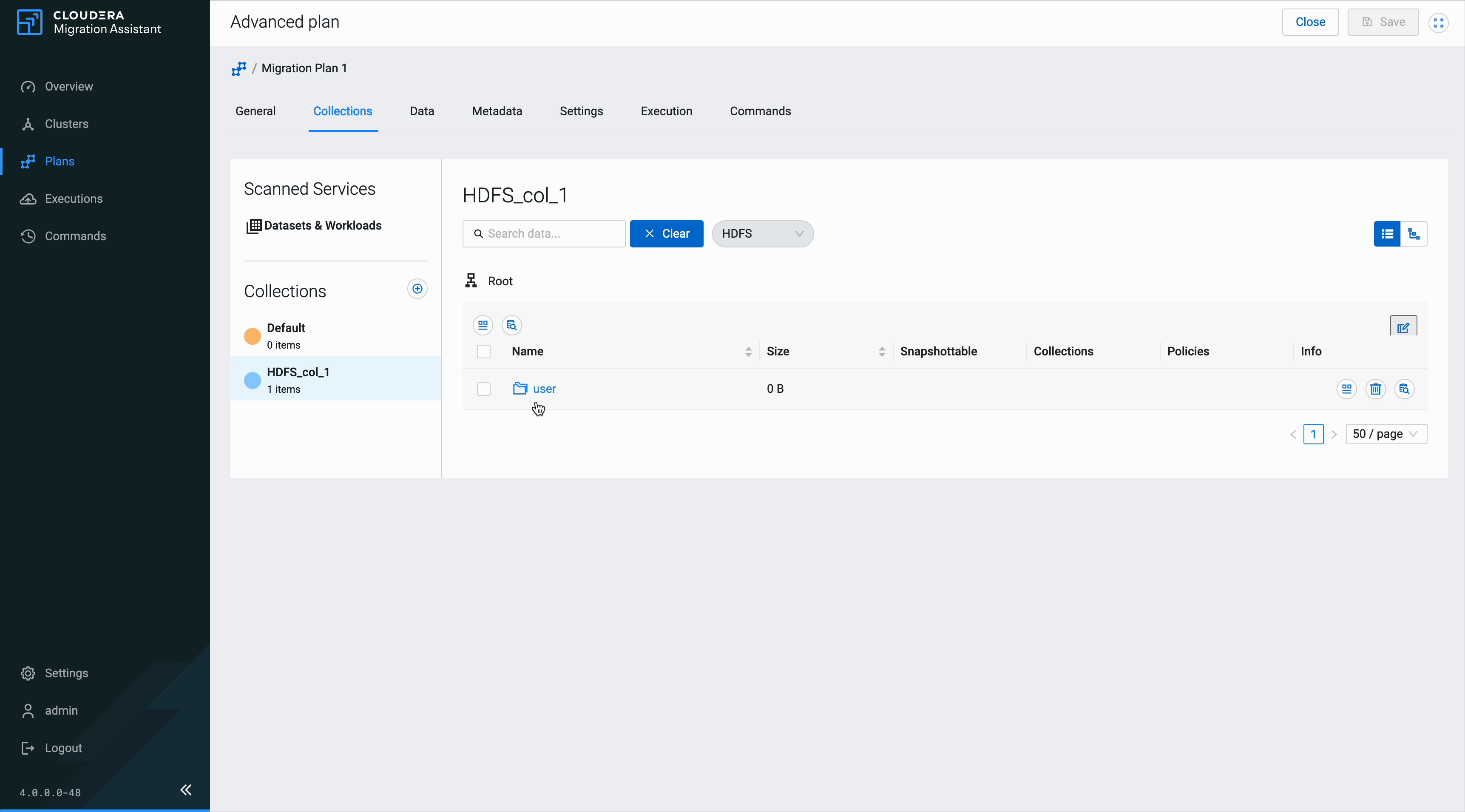

              9. Click a collection name in the sidebar to view its contents. The data browser switches to show only the items assigned to that collection.
                Figure 13. view collection

                view collection

              Phase 6 — Run the migration workload

                Step 1 — Scan the source cluster (HDFS)

                1. Open Clusters, then select the source cluster.
                2. Click Start Scanning.
                3. Select Hdfs data scan.
                4. Optional: Constrain the scan path, for example, /tmp or /user, to shorten runs on massive namespaces.
                5. Click Scan selected and watch the progress drawer until completion.

                  After success, Discovery lists HDFS trees with sizing and ownership snapshots.

                Step 2 — Scan the target cluster (Ozone)

                1. Confirm Apache Ozone is healthy in before scanning.
                2. From Clusters, open the target cluster.
                3. Click Start Scanning.
                4. Select Ozone data scan.
                5. Click Scan selected and wait until the status turns green.

                  Ozone hierarchies populate inside Discovery afterward.

                Step 3 — Create a migration plan

                1. Go to Plans.
                2. Click Create Plan.
                3. Set Name, select the source HDFS cluster, and the target Ozone cluster.
                4. Complete the wizard (Create) and land on the plan detail surface.

                Step 4 — Map HDFS directories to Ozone paths on the Data tab

                The Data tab displays source HDFS on the left and target storage on the right.

                1. Go to Plan > Data.
                2. Switch the target browser mode from HDFS to Ozone using the service picker.
                3. Go to your target volume, bucket, and folder staging area.
                4. On the source side, go to the parent directory that contains data you want to migrate.
                5. Hover the directory and click Copy. persists a structural mapping.
                6. Switch to the Review view any time to view a list of your current structure mappings.
                7. Optional: When Ozone misses a folder UI-side, create it before copying structures.
                  1. In the target browser, go to the parent bucket or folder.
                  2. Click Create Folder.
                  3. Provide the folder name and confirm creation.

                  updates its metadata immediately and executions push the filesystem change during processing.

                8. Repeat the mapping workflow for additional directories whenever you broaden scope.

                  You can map each directory to separate buckets or combine them into shared buckets. The layout must meet the requirements for your tenancy model.

                Step 5 — Create and run an execution

                1. Open Execution.
                2. Select Create Execution.
                3. Complete the steps in the configuration wizard (General, Scope, Review), and then click Finish.
                4. Open the execution dashboard and trigger Run All.

                  During execution the following stages occur:

                  • Policy creation – registers policies mapping HDFS prefixes to destination Ozone keys.

                  • Data replication – invokes DistCp-style transfers governed by settings.

                  • Verification – tracks step health until completion (COMPLETED or FAILED statuses per step).

                Step 6 — Verify the migration

                1. Confirm that the execution steps display COMPLETED.
                2. Inspect Ozone hierarchies inside Discovery.
                3. Optional: Validate migrated objects using the Ozone CLI.
                  ozone fs -ls ofs://<service-id>/<volume>/<bucket>/<path>
