Downloading diagnostic bundles in Cloudera Data Warehouse on premises

You can download diagnostic bundles for troubleshooting a Virtual Warehouse in Cloudera Data Warehouse on premises. The diagnostic bundles contain log files for the sidecar containers that support Hive or Impala components and for the components themselves. These diagnostic bundles are stored on HDFS in the form of ZIP files.

The log files are generated when you run some workloads on your Virtual Warehouse.
  1. Log in to the Cloudera Data Warehouse service as a PowerUser.
  2. Go to the Virtual Warehouses, locate the Virtual Warehouse from which you want to collect diagnostic data, and click > Collect Diagnostic Bundle.
    Diagnostic Bundle

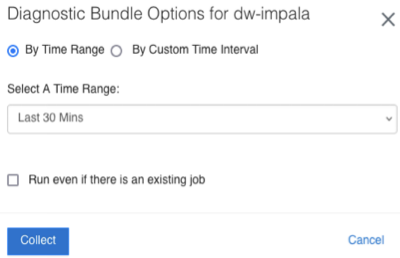

  3. Select the time period for which you want to generate the logs.
    • Select the By Time Range option to generate logs from last 30 minutes, one hour, 12 hours, or 24 hours.
    • Select By Custom Time Interval option to generate logs for a specific time period based on your requirement.
  4. Optional: Select the Run even if there is an existing job option to trigger another diagnostic bundle creation when one job is running.
  5. Click Collect.
    The following message is displayed: Collection of Diagnostic Bundle for compute-1651060643-c97l initiated. Please go to details page for more information.
  6. Go to the Virtual Warehouses details page by clicking > Edit.
  7. Go to the DIAGNOSTIC BUNDLE tab.
    The jobs that have been triggered for generating the diagnostic bundles are displayed, as shown in the following image:

    Image showing the DIAGNOSTIC BUNDLE tab from which you can download the logs and see the status of the job for generating the diagnostic bundle.
  8. Click on the link in the Location column to download the diagnostic bundle to your computer.
