Checking data provenance

  • Make sure that you have DFDeveloper permission to perform this task. For information on account and resource roles, see Cloudera Data Flow Authorization.
  • This feature will not provide provenance data if provenance events have not been generated. For provenance events to be generated, you need an active test session.

Data provenance provides a searchable historical record of every data object (FlowFile) as it moves through your flow. It can help you debug and audit issues with your flows by understanding the changes (events) that occurred to data as it was being processed by each processor.

  • To view data provenance events in Flow Designer, go to Flow Options > Data Provenance
  • Find provenance events relevant to your use case.

    • To locate all events related to a component, Search by component name.

    • You can filter for events by Event Type and Component Type.
    • To further narrow your search, click Advanced search.

      Advanced search allows you to include or exclude the following types of properties from your search:

      • Event Type
      • FlowFile UUID
      • Filename
      • Component ID
      • Relationship
      You can also select the timeframe within which to search and the size of the FlowFile using the following:
      • Date Range
      • Start Time
      • End Time
      • Minimum File Size
      • Maximum File Size
    • To clear all selected filtering options, click Clear all.

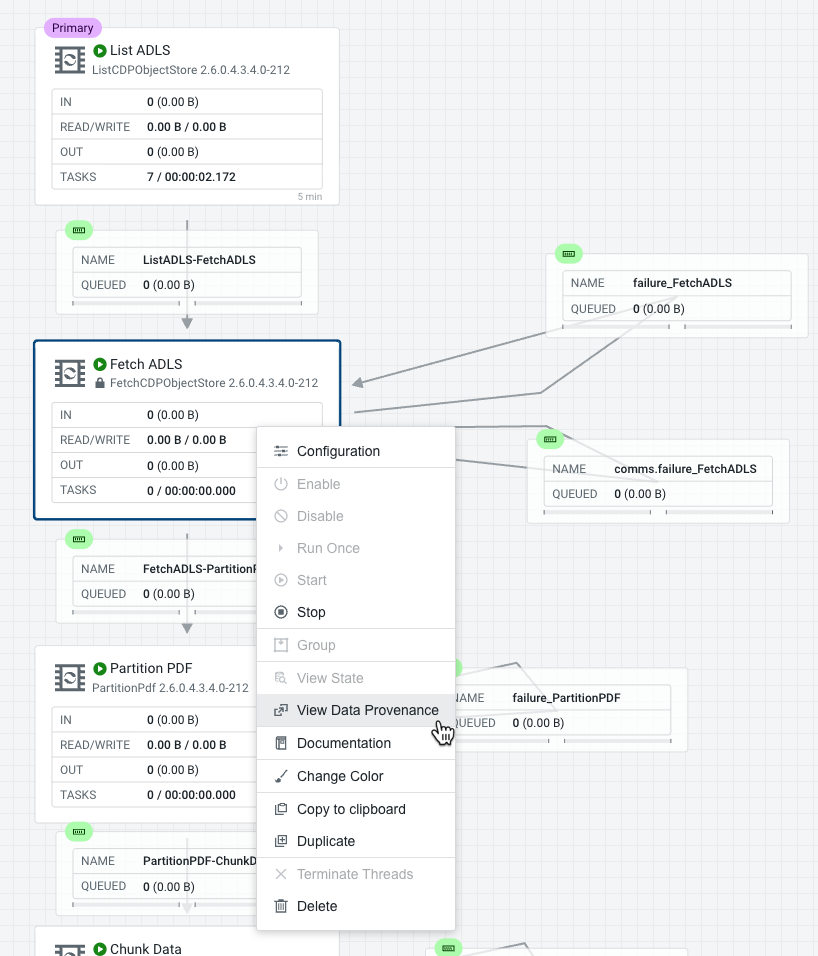

  • You can directly access data provenance of a specific processor by right clicking a processor and selecting View Data Provenance from the context menu.

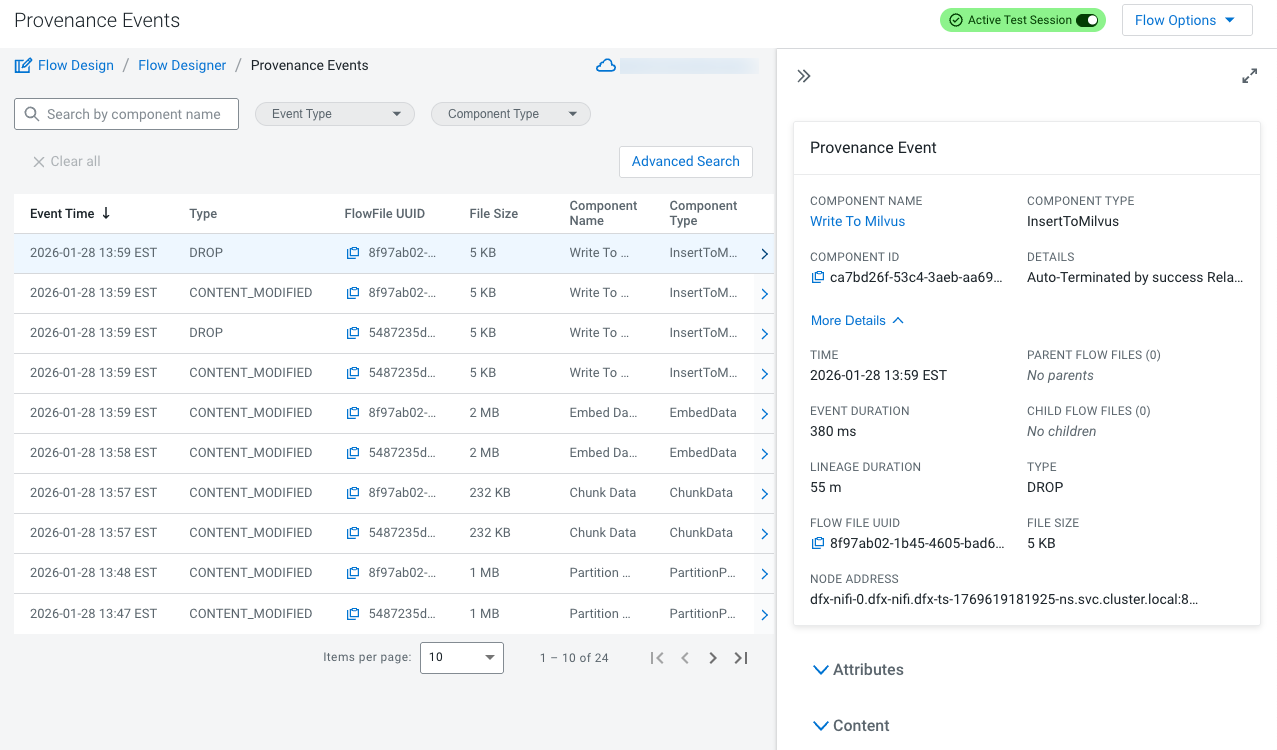

  • To view event details click the [Event Details] icon on the right of an event row.

    It opens the Provenance Event details pane that also includes the Attributes and Content sections.

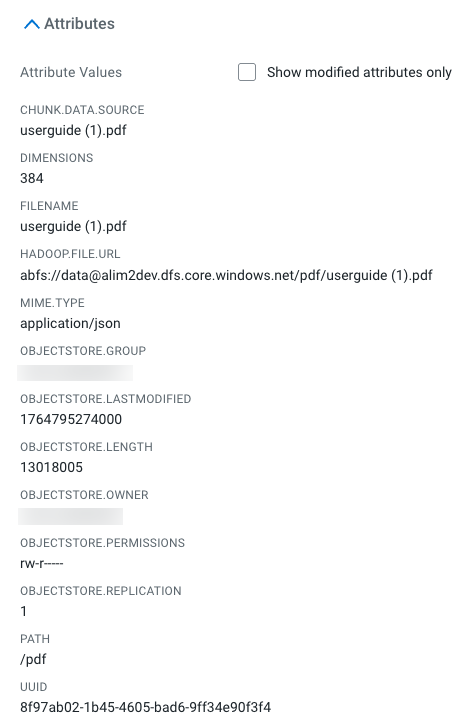

    The Attributes section shows the attributes that exist on the FlowFile as of that point in the flow. To only view the attributes that were modified as a result of the processing event, select the Show modified attributes only checkbox.

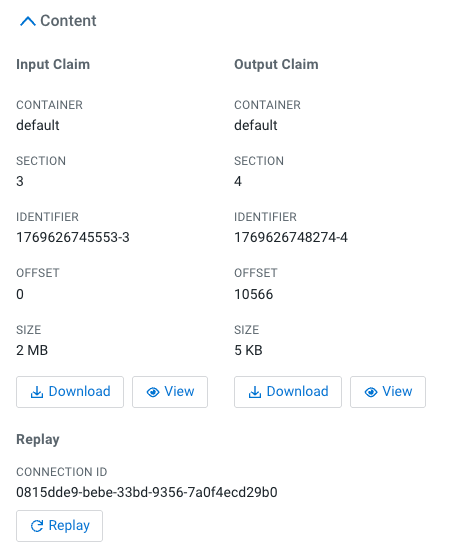

    The Content section shows information about the FlowFile’s content, such as its location in the Content Repository and its size.
    • Click the Download button to download a copy of the FlowFile’s content as it existed at this point in the flow.
    • Click the Replay button to replay the FlowFile at this point in the flow.

      Upon clicking Replay, the FlowFile is sent to the connection feeding the component that produced this processing event. To inspect the contents of a FlowFile at some point in the flow to ensure that it is being processed as expected. If it is not being processed properly, you may need to make adjustments to the flow and replay the FlowFile again. You can achieve this from the Content section of the Provenance Event pane.
