Editing tools

Edit a tool in Agent Studio.

  1. In the Cloudera console, click the Cloudera AI tile. The Cloudera AI Home page is displayed.
  2. Click on the name of the workbench. The Cloudera AI Workbench Home page is displayed.
  3. In the left navigation pane, click AI Studios. The AI Studios page is displayed.
  4. On the Agent Studio tile, click the Open button. The Agent Studio page is displayed.
  5. Select Tools Catalog. All the existing tools are displayed.
  6. Click the Edit icon for the tool you want to modify. The Edit Tool window opens.

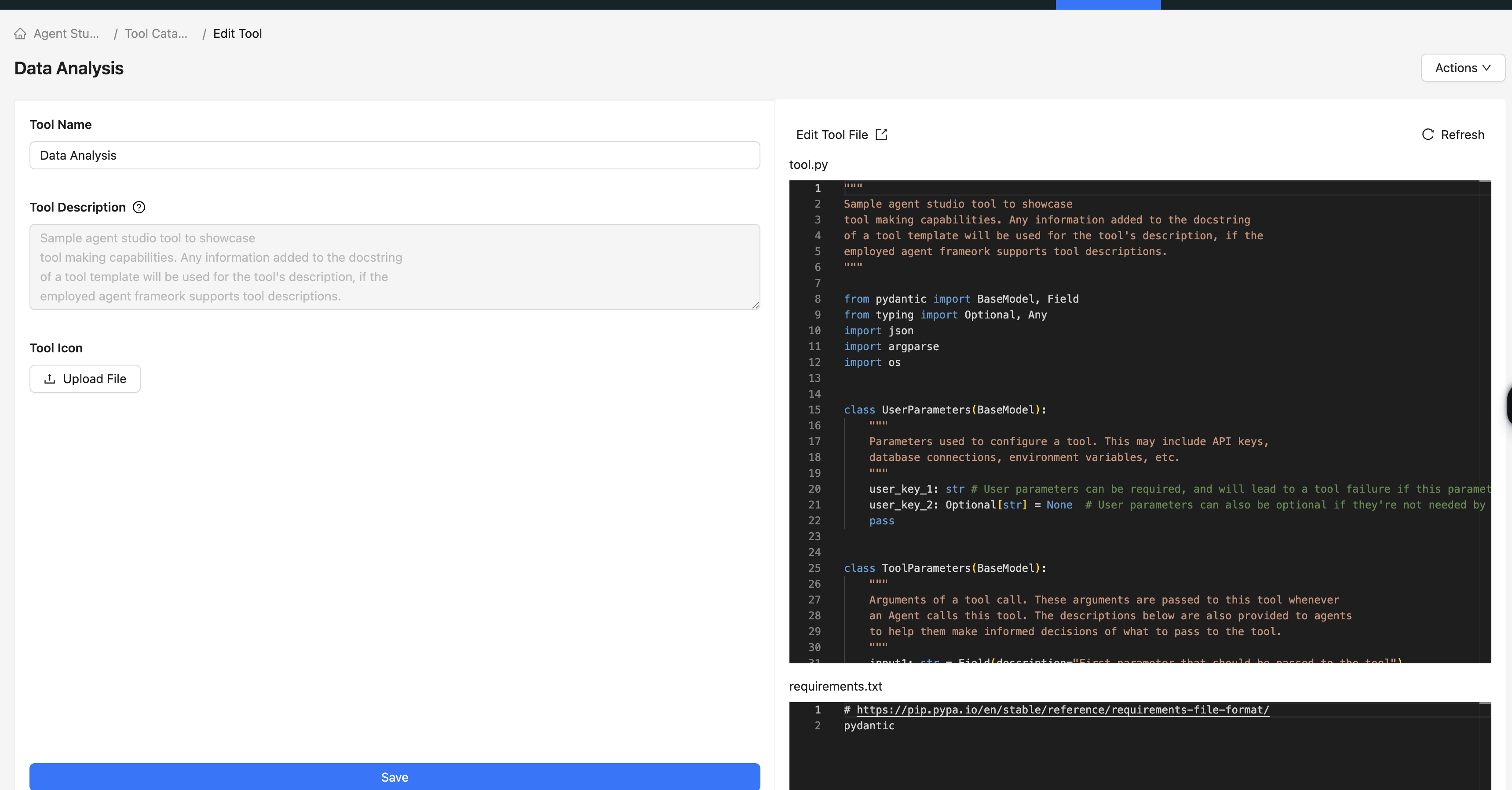

Figure 1. Edit Tool page with the Edit Tool File section
  1. Edit to the following parameters:
    1. Tool Name – Name of the tool.
    2. Tool Description – The read-only description of the tool that is picked up from the description variable in the class <tool-name> block.
    3. Tool Icon – An uploaded image file representing the tool in the Agent Studio interface. Click Upload File to add an icon.
  2. Click the Save button.
