The sandboxed environment restricts access to host filesystem paths, meaning tools that
previously accessed files using absolute paths (for example,
/home/cdsw/my-project/data.csv) or traversed the CML project directory
structure will no longer function.

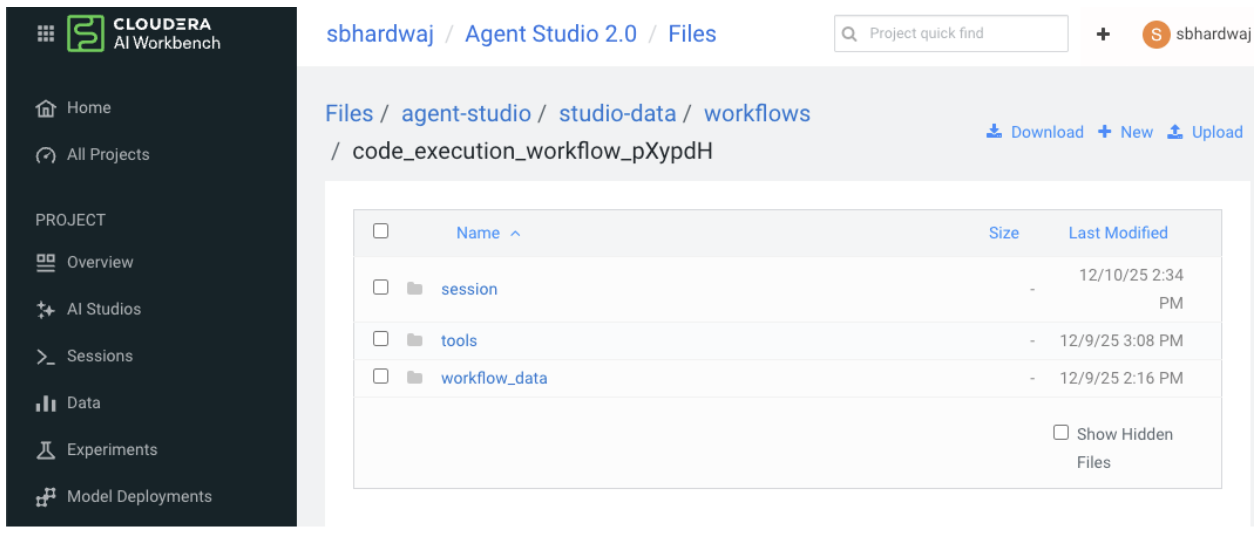

To resolve this issue, tools are required to utilize the /workflow_data
directory, which is a read-only mount point containing project files.
Old Approach (Now Obsolete):
import pandas as pd
import os
def run_tool(config, args):
# ❌ This will fail - absolute paths outside sandbox are inaccessible
file_path = "/home/cdsw/my-project/data/input.csv"
df = pd.read_csv(file_path)
# ❌ This will also fail - cannot traverse project directory
project_root = "/home/cdsw/my-project"
for root, dirs, files in os.walk(project_root):
# Process files...
pass
# Process data
result = df.groupby('category').sum()
# ❌ This will fail - cannot write outside /workspace
output_file = "/home/cdsw/my-project/data/output.json"
with open(output_file, 'w') as f:
json.dump(result.to_dict(), f)
After (New Approach -
Required):
import pandas as pd
import json
import os
def run_tool(config, args):
# ✅ Get workflow data directory from environment variable
workflow_data_dir = os.environ.get('WORKFLOW_DATA_DIRECTORY', '/workflow_data')
# ✅ Access project files from workflow data directory
input_file = os.path.join(workflow_data_dir, 'data', 'input.csv')
if not os.path.exists(input_file):
return {
"status": "error",
"message": f"Input file not found at {input_file}. "
f"Please ensure the file is in the workflow_data directory."
}
df = pd.read_csv(input_file)
# ✅ List files in workflow_data directory (replaces os.walk on project root)
if os.path.exists(workflow_data_dir):
project_files = []
for root, dirs, filenames in os.walk(workflow_data_dir):
for filename in filenames:
rel_path = os.path.relpath(os.path.join(root, filename), workflow_data_dir)
project_files.append(rel_path)
print(f"Available project files: {project_files}")
# Process data
result = df.groupby('category').sum()
# ✅ Get session directory for writing output files
session_dir = os.environ.get('SESSION_DIRECTORY', '/workspace')
output_file = os.path.join(session_dir, 'output.json')
with open(output_file, 'w') as f:
json.dump(result.to_dict(), f)
return {
"status": "success",
"message": f"Processing complete. Output saved to {output_file}"
}
Example Workflow Template
The Talk to your SQLite Database workflow template is designed to
illustrate secure practices for working with SQLite database files.
Core Principle: This
template emphasizes the correct method for sandboxed tool execution to access project files. By
using the workflow data directory (/workflow_data) and the
WORKFLOW_DATA_DIRECTORY environment variable, rather than relying on
absolute CML project paths.
Key Demonstrations of the Template:
Workflow Data Directory Access: Shows how tools read SQLite database files from the
designated, read-only workflow data directory.
File Lifecycle: Demonstrates the secure process of uploading database files to the workflow
data directory and subsequently accessing them within sandboxed tools.
