Enhancing Data Connectivity: Cloudera Octopai Universal Connector for Databases & ETLs Tools Guide

The Cloudera Octopai Universal Connector for Databases & ETLs Tools integrate metadata from diverse systems into the Data Intelligence Platform, enabling lineage, data discovery, and full visibility of your data ecosystem.

As data demands evolve, data teams continuously seek a better understanding of their data ecosystem. The need for analysis and visualization of additional systems is growing. As a result, Cloudera Octopai is consistently expanding its extensive coverage of out-of-the-box supported technologies in our Data Intelligence Platform.

However, as your needs progress, it is crucial to provide an overview of the complete data landscape with various systems and data flows.

New data systems often lack automation support, and many organizations rely on custom-built data processes. A lineage tool must cover these processes to deliver a complete and accurate picture.

Therefore, Cloudera Octopai has developed the Universal Connector, empowering you to add your metadata from these types of systems into Cloudera Octopai’s Data Intelligence platform to get the full picture - complete lineage, data discovery and a data catalog.

You get unlimited ingestion capabilities to enrich the platform with additional lineage, allowing you to add the final piece of the puzzle and get full visibility of your data ecosystem.

This flexibility allows you to adapt quickly to your changing data landscape, and consistently get a complete view regardless of what data systems you’re using.

How it is done

Use the Cloudera Octopai templates below to ingest your metadata into the platform. The rest is fully automated.

What Cloudera Octopai offers

This metadata, along with the metadata automatically ingested from out-of-the-box supported systems, is analyzed using machine learning. In turn Cloudera Octopai provides you with end-to-end column-level lineage, inner system lineage, cross system lineage, data discovery and a data catalog of your entire data landscape accessible to all data users in the organization.

The benefits:

• No blind spots – perform changes with confidence.
• Get a clear picture of data transformations.
• Increase visibility of the organization's complete data ecosystem.
• Future-proof your expanding data landscape by providing access to unlimited data systems.
• Add links to our out-of-the-box technologies.

How to use the template files

1. Download the template files:
   • Universal Connector Links
   • Universal Connector Objects
2. Fill in the required fields in the template files using the information provided in the tables below, see Universal Connector Links and Universal Connector Objects.

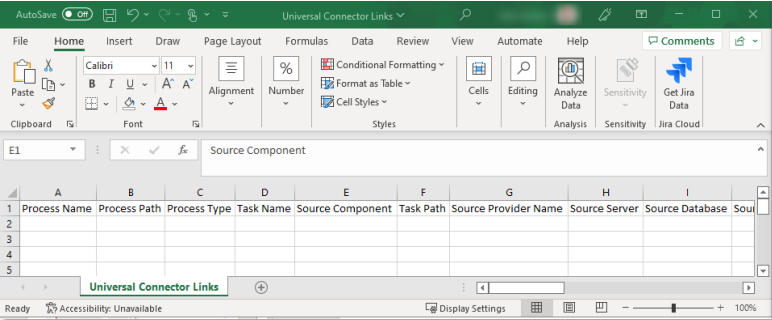

Universal Connector Links

Column Name	Description	Required
Process Name	Name of the process that wraps the task, for example “Workflow” in Informatica or “Package” in SSIS	No
Process Path	Path of the process – for example, the path where the SSIS package is stored, including the package name and suffix (aaa\bbb\ccc\Package Name.dtsx).	No
Process Type	The type of process – job, map, package, and so forth.	Yes
Process Description	Short process description to be identified clearly in the lineages.	No
Task Name	The task name – the atomic unit that holds the data flow within the process.	Yes
Task Path	The path of the task – the location of the atomic unit that runs the process (for example, aaa\bbb\ccc\Package Name\container\Task Name).	No
Source Component	Name of the logic component in the ETL tool. Example: for Informatica, the name of the aggregator in the map. When there is no component, enter the table name.	No
Source Provider Name	Provider of source object (for example, Oracle, SQL Server).	No
Source Server	Server name of the source object.	No
Source Database	Database name of the source object.	Yes
Source Schema	Schema name of the source object.	Yes
Source Object	Name of the source object.	Yes
Source Column	Column name in the source object.	Yes
Source Data Type	Data type of the column.	No
Source Precision	Precision of the column.	No
Source Scale	Scale of the column.	No
Source Object Type	Type of object – table, view, file.	Yes
Target Provider Name	Provider of target object (for example, Oracle, SQL Server).	No
Target Component	Name of the logic component in the ETL tool. Example: for Informatica, the name of the aggregator in the map. When there is no component, enter the table name.	No
Target Server	Server name of the target object.	No
Target Database	Database name of the target object.	Yes
Target Schema	Schema name of the target object.	Yes
Target Object	Name of the target object.	Yes
Target Column	Column name in the target object.	Yes
Target Data Type	Data type of the column.	No
Target Precision	Precision of the column.	No
Target Scale	Scale of the column.	No
Target Object Type	Type of object – table, view, file.	Yes
Expression	Formula or transformation between source column and target column.	No
Link Type	DataFlow or ImpactAnalysis.	No (default = DataFlow)
Link Description	Documentation about the link.	No (default = empty string)

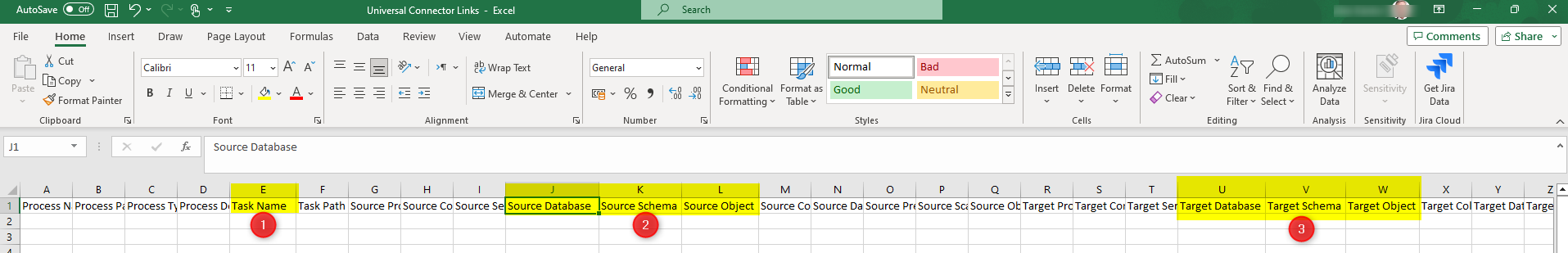

Example for ETL process on cross lineage

The Universal Connector links the source and the target for the task name as the main object.

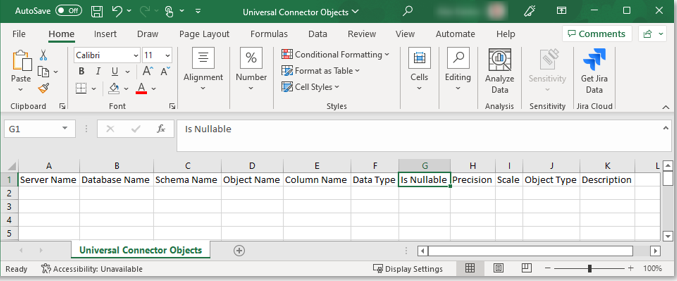

Universal Connector Objects

Column Name	Description	Required
Provider Name	Provider of object – for example, Oracle, SQL Server.	No
Server Name	Server name of the object.	No
Database Name	Database name of the object.	Yes
Schema Name	Schema name of the object.	Yes
Object Name	Name of the source object.	Yes
Object Description	Documentation about the object.	No (default = empty string)
Column Name	Column name in the source object.	Yes
Column Description	Short column description.	No (default = empty string)
Data Type	Data type of the column.	No
Is Nullable	Indicates whether the column accepts null values.	No
Precision	Precision of the column.	No
Scale	Scale of the column.	No
Object Type	Type of object – table, view, file, and so on.	Yes

How to set up the Universal Connector

For step-by-step setup instructions, see Universal Connector.
