Wildcards and macros in resource-based policies

Learn about wildcards and macros in resource-based policies.

Wildcard characters in Ranger authorization resource policy

Wildcard characters can be included in the resource path, the database name, the table name, or the column name:
  • * indicates zero or more occurrences of characters

  • ? indicates a single character

Macros in Ranger policy authoring

In many enterprises, it is customary to create user-accessible data resources (HDFS files/directories, Hive databases/tables, and so on) encoded with the username or some other user-specific attribute value in their names. In such cases, a Ranger administrator needs to author multiple policies addressing these distinct resource names.

USER macro in Ranger provides a generic way to author Ranger policies addressing such relationships between resource names and access permissions for its users to achieve an equivalent access control regime with a single policy or a small number of policies.

Similarly, the OWNER macro in Ranger provides a way to define an access policy for the resources that are owned by the user, thereby restricting others who are not the owner from accessing them unless given specific access.

These two macro definitions make Ranger policy authoring robust and add clarity to the mapping of enterprise-wide and high-level access control regimes to Ranger policy specifications. Fewer policies, in general, lead to significant improvement in capacity and performance in Ranger administration as well as Ranger-enabled components.

USER and OWNER macros in Ranger policy authoring

Learn about USER and OWNER macros and how to use them in Ranger policies to create user-accessible data resources.

USER macro

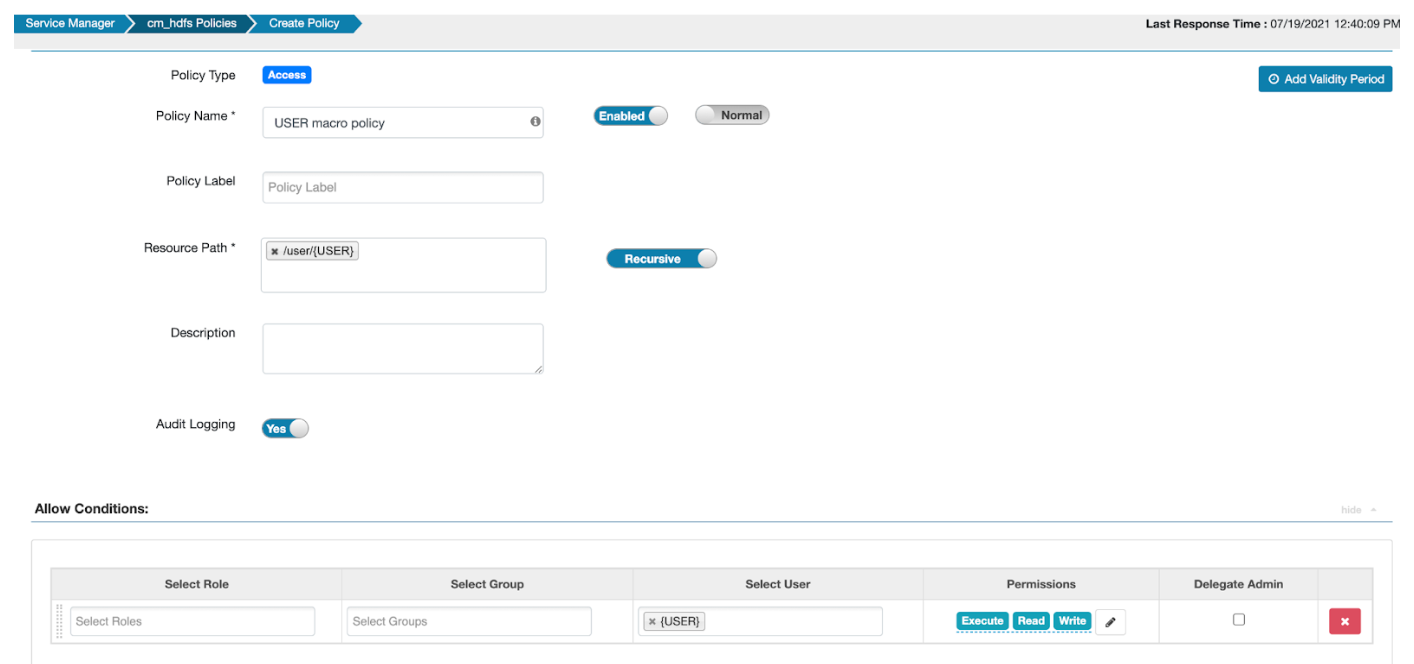

Let us use the following example to understand the usage of USER macro.


In the preceeding example of the USER macro policy in the HDFS service, the policy has /user/{USER} as the Resource Path. This Resource Path has the {USER} macro, which will be replaced by the username when an access request is authorized using this policy. In Allow Conditions, to give Read/Write/Execute access, there is a {USER} macro defined for the user value, and this macro will be expanded to the corresponding user who accesses the resource. Resource Path macro and the corresponding Allow Condition macro will determine the user's access to the particular resource path.

For example, if the user systest is reading data from /user/systest, this USER macro policy will allow read access. If the user systest tries to read data from /user/hive, access will be denied.

By defining this single policy, enterprises can take advantage of controlling access to the user data.

Customizability of USER macro in Ranger

Ranger requires that the {USER} string be used to represent an accessing user as the user in the policy item in a Ranger policy. However, Ranger provides a flexible way of customizing the string that is used as shorthand to represent the accessing user's name in the policy resource specification. By default, Ranger policy resource specification expects the '{' and '}' characters as delimiters for the string USER; however, Ranger supports a customizable way of specifying delimiter characters, escaping those delimiters, and the string USER itself by prefixing it with another user-specified string on a per resource-level basis in the service definition of each component supported by Ranger.

For example, if for a certain HDFS installation, the path names contains '{' or '}' as valid characters, but not the '%' character, then the service definition for HDFS can be specified as follows:
"resources": [
{
      "itemId": 1,
      "name": "path",
      "type": "path",
      "level": 10,
      "parent": "",
      "mandatory": true,
      "lookupSupported": true,
      "recursiveSupported": true,
      "excludesSupported": false,
      "matcher": "org.apache.ranger.plugin.resourcematcher.RangerPathResourceMatcher",
      "matcherOptions": {"wildcard": true, "ignoreCase": false}, "replaceTokens":true, "tokenDelimiterStart":"%", "tokenDelimiterEnd":"%", "tokenDelimiterPrefix":"rangerToken:"}
      "validationRegEx":"",
      "validationMessage": "",
      "uiHint":"",
      "label": "Resource Path",
      "description": "HDFS file or directory
path"
}
]
The corresponding Ranger policy for the use case for HDFS will be written as follows:
 resource: path=/home/%rangerToken:USER%
 user: {USER}
 permissions: all, delegateAdmin=true

The following customizable matcherOptions are available for this feature.

  • replaceTokens: "true" if shorthand for the user in the resource specification needs to be replaced at runtime with the current-user's name; "false" if the resource specification needs to be interpreted as it is. Default value is "true".
  • tokenDelimiterStart: Identifies the start character of shorthand for the current user in the resource specification. Default value is "{".
  • tokenDelimiterEnd: Identifies the end character of shorthand for the current user in the resource specification. Default value is "}".
  • tokenDelimiterEscape: Identifies escape characters for escaping tokenDelimiterStart/tokenDelimiterEnd values in the resource specification. Default value is "\".
  • tokenDelimiterPrefix: Identifies a special prefix which, together with the string USER, makes up shorthand for the current user's name in the resource specification. Default value is "".

Advanced use of USER macro

This feature, at its core, supports general-purpose identification of special patterns in the resource specification and their replacement at runtime with other strings to derive the name of the resource, before matching it with the resource being accessed by the user. Therefore, it is not limited to the replacement of string USER with the current user's name; it is just something that is offered out of the box.

In order for Ranger users to use the underlying core functionality, they need to be familiar with interfaces provided by Ranger for customizing Ranger, such as RangerContextEnricher, RangerAccessRequest, and RangerConditionEvaluator.

The following methods are provided to populate and reference context in the RangerAccessRequest object that represents access requests in the policy evaluation engine:

  • RangerAccessRequestUtil.setTokenInContext(Map<String, Object> context, String tokenName, Object tokenValue);
  • Object RangerAccessRequestUtil.getTokenFromContext(Map<String, Object> context, String tokenName);

An advanced Ranger user needs to provide the following to use the core functionality offered by this feature:

  • Provide an implementation of RangerContextEnricher and include it in the service definition. The implementation of RangerContextEnricher.enrich() method needs to get the context of the RangerAccessRequest provided to it and use the RangerAccessRequestUtil.setTokenInContext() API to populate it with a specific tokenName (such as USER) and its value, derived based on some runtime information and enricher's configuration parameters.
  • Customize the component's service definition with appropriate matcherOptions for each resource definition supported by it as described above in the customizability section.
  • Provide an implementation of RangerConditionEvaluator and include it in the service definition. The implementation of the RangerConditionEvaluator.isMatched() API needs to retrieve the value of the tokenName from the request’s context using the RangerAccessRequestUtil.getTokenFromContext() API, and return the appropriate result.
  • Author a Ranger policy with the resource specification containing the tokenName to implement appropriate access control for the resource name built at runtime by Ranger.

OWNER macro

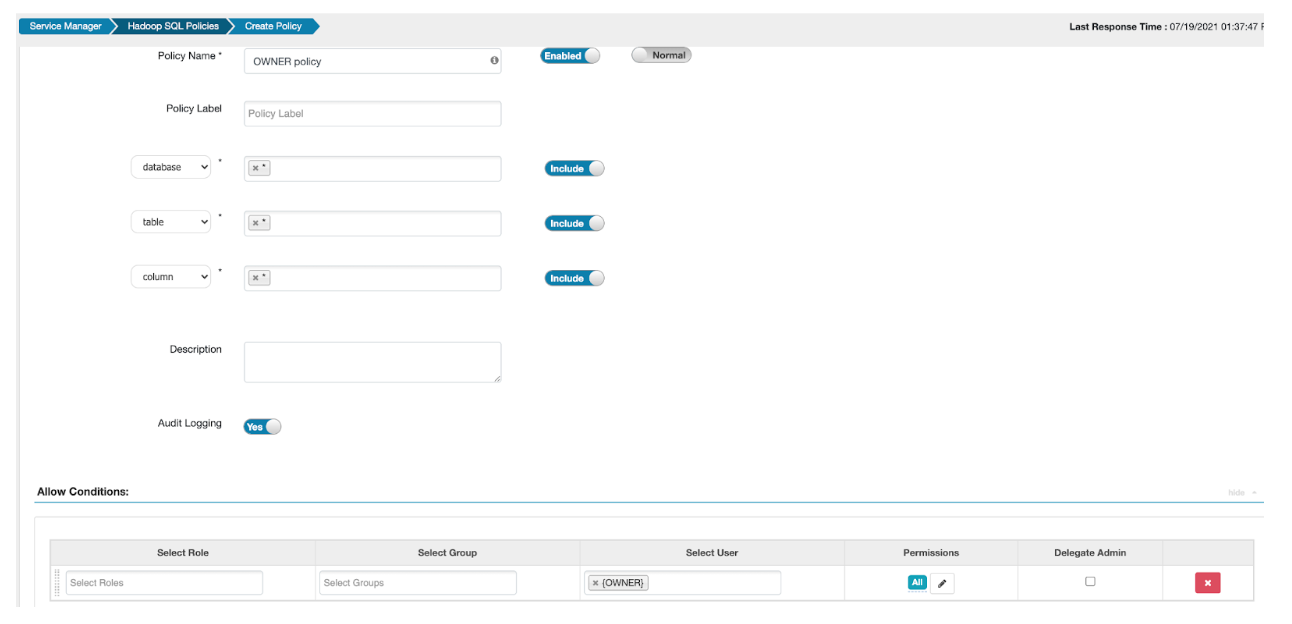

Let us use the following example to understand the usage of OWNER macro.



When resources are created in respective services (HDFS, Hive, HBase, and so on), those resources are marked with the owner information. When the resource's owner accesses those resources, the owner should have all permissions on those resources.
  • In the Allow Conditions Ranger policy, for the user entry, the {OWNER} macro is used with the permission All.
  • This Owner policy gives the necessary permission to the resources (database/table/column) that the user owns.
  • Other resources which are not owned by the user are not allowed to be accessed.
  • This single policy gives the flexibility to provide access to the owner of the resources.
