Matching parameter contexts to shared parameter groups

If the migrated NiFi 1.x flow had multiple parameter contexts, you have the option to match those with shared parameter groups before opening the migrated NiFi 2.x flow in Flow Designer.

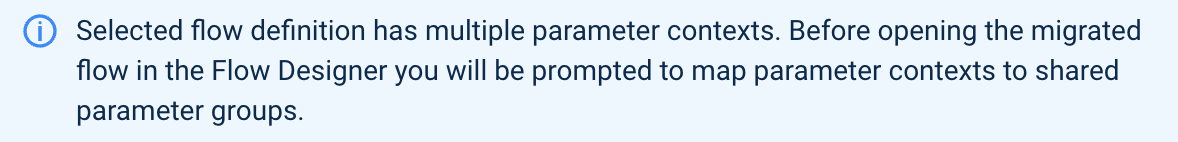

In a previous step, the Migration Tool threw this message:

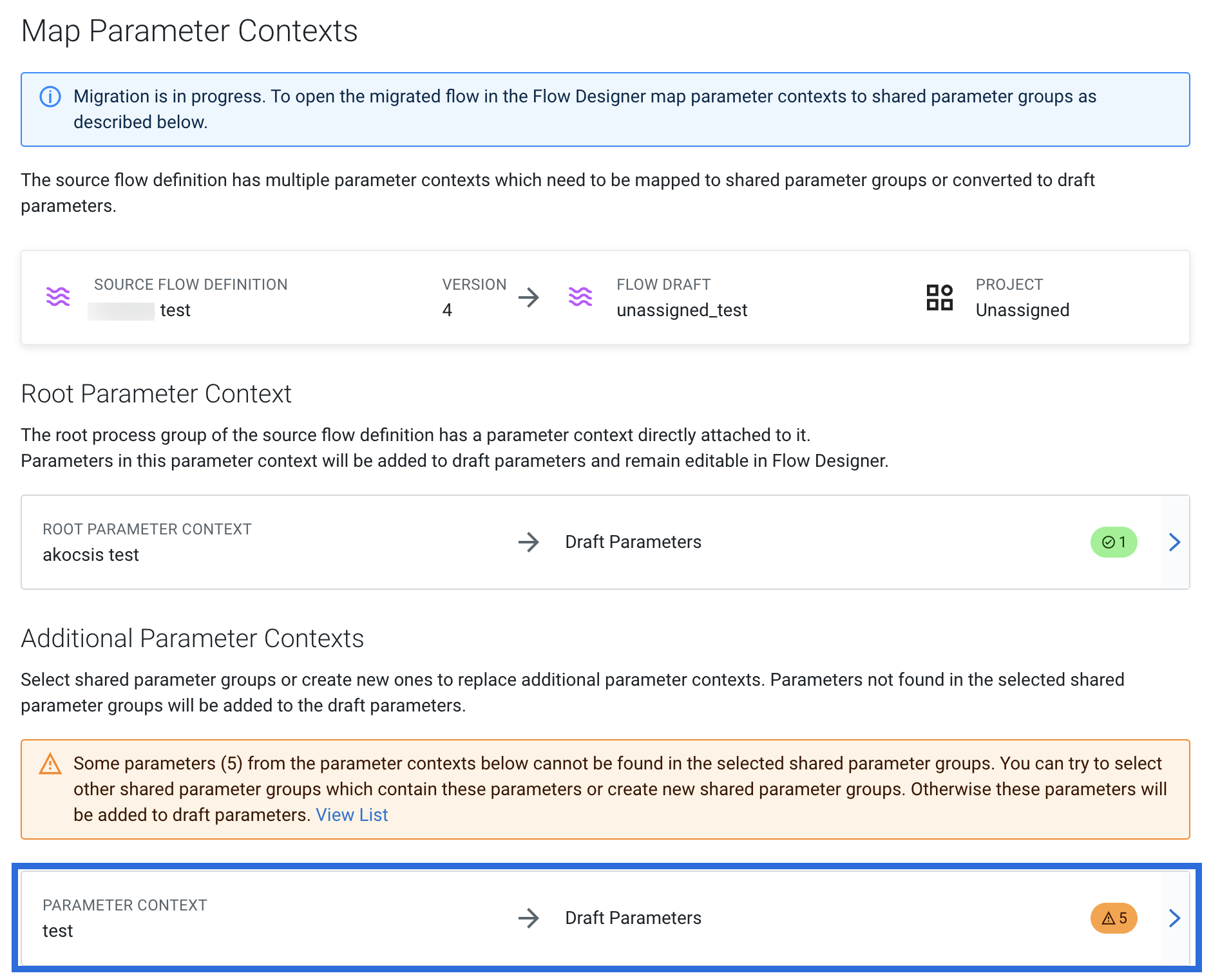

At this point, you can either start matching parameter contexts, click Create Migrated Flow Draft to skip matching and create the flow draft with draft parameters, or click Cancel to abort migration and discard all changes.
  • Click on the PARAMETER CONTEXT you want to interact with.
  • From the Select a Shared Parameter Group drop-down select the group you want to match with the selected parameter context.
    • A green badge with icon shows the number of matching parameters in the parameter context.
    • An orange badge with icon shows the number of parameters that have no match in the parameter context.
    Only shared parameters that match a context parameter are imported to your NiFi 2.x flow draft.
  • When you are done with matching, click Create Migrated Flow Draft.
