Managing exporters using API

Configure and manage OpenTelemetry Collector Gateway exporters and metrics services using the web configuration options.

  1. Log in to Cloudera Manager
  2. Navigate to Hosts > Hosts Configuration tab
  3. In the search bar, search for OpenTelemetry Collector Gateway Exporter for metrics (otelcol_gateway_external_metrics_exporter)
  4. Append the configuration block in YAML format for your new exporter

    Exporter YAML example:

    prometheusremotewrite/my-exporter:
  endpoint: "https://receive.example.com/api/v1/receive"
  retry_on_failure:
    enabled: true
    initial_interval: 10s
    max_interval: 40s
    max_elapsed_time: 300s
  auth:
    authenticator: cdpauth/gateway
    otlp/secure:
  endpoint: "api.your-observability-backend.com:4317"
  headers:
    "api-key": "your-secret-api-key"
  tls:
    insecure: false
  5. Click Save Changes

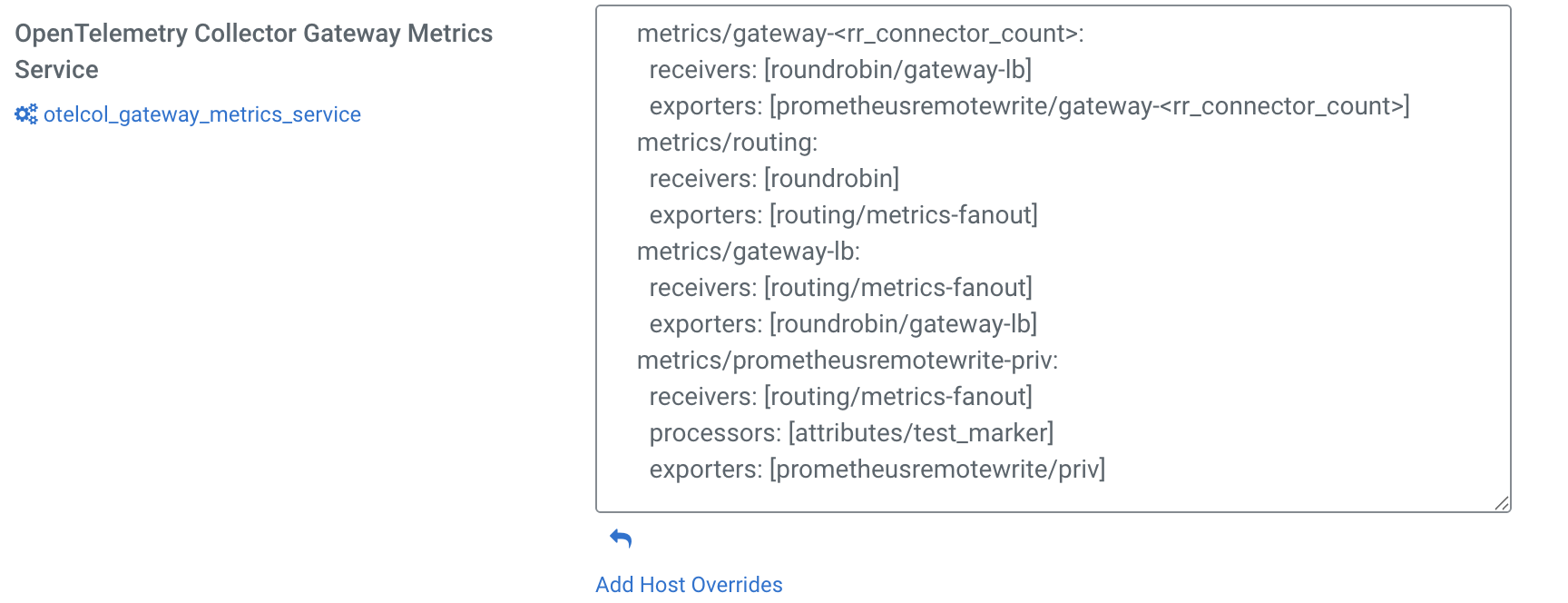

  6. In the search bar, search for the OpenTelemetry Collector Gateway Metrics Service (otelcol_gateway_metrics_service)
  7. Edit the list of exporters in the exporters section to include the name of the new exporter

    Updated metrics service YAML example:

     metrics/gateway-<rr_connector_count>:
      receivers: [roundrobin/gateway-lb]
      exporters: [prometheusremotewrite/gateway-<rr_connector_count>]
    metrics/routing:
      receivers: [roundrobin]
      exporters: [routing/metrics-fanout]
    metrics/gateway-lb:
      receivers: [routing/metrics-fanout]
      exporters: [roundrobin/gateway-lb]
    metrics/prometheusremotewrite-priv:
      receivers: [routing/metrics-fanout]
      processors: [attributes/test_marker]
      exporters: [prometheusremotewrite/priv]
  8. Click Save Changes

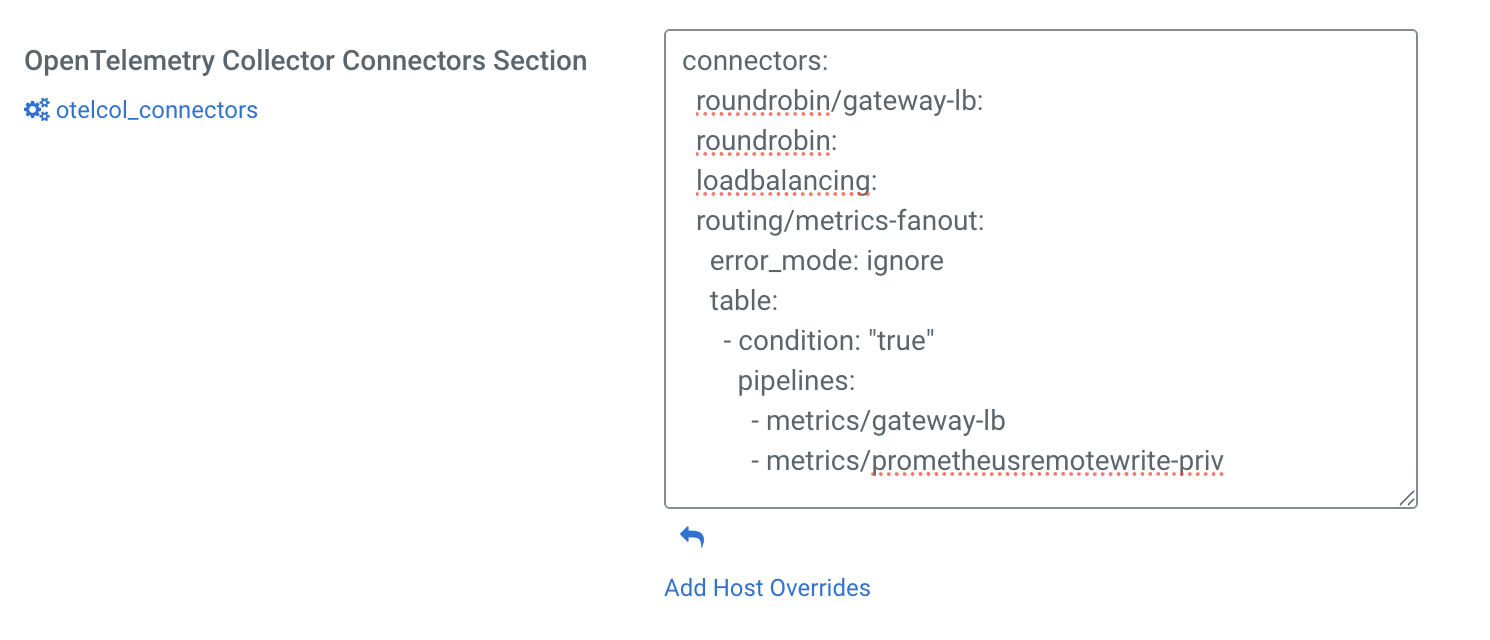

  9. In the search bar, search for the OpenTelemetry Collector Connectors (otelcol_connectors)
  10. Append the list of pipelines for the exporter you configured

    Connector YAML example:

    connectors:
  roundrobin:
  loadbalancing:
  roundrobin/gateway-lb:
  routing/metrics-fanout:
    error_mode: ignore
    table:
      - condition: "true"
        pipelines:
          - metrics/gateway-lb
          - metrics/prometheusremotewrite-priv
  11. Click Save Changes
