Spark lineage

Atlas collects metadata from Spark to represent the lineage among data assets.

The Atlas lineage graph shows the input and output processes that the selected entity participated in, specifically relationships modeled as inputToProcesses and outputFromProcesses. Entities are included if they were inputs to processes that lead to the current entity or they are output from processes for which the current entity was an input.

In the context of Spark, a Spark job is modeled as a spark_application entity. Each application entity includes relationships to one or more processes that were executed in the job. The spark_process entities are automatically named execution-n, where n is a counter that starts at 0 for each Spark application and increases for every query that Spark runs, including internal queries and queries that do not produce lineage. As a result, the numbers in Atlas are not always consecutive. For example, in the following figures, the two CREATE TABLE AS SELECT statements of a single job appear as execution-2 and execution-4.

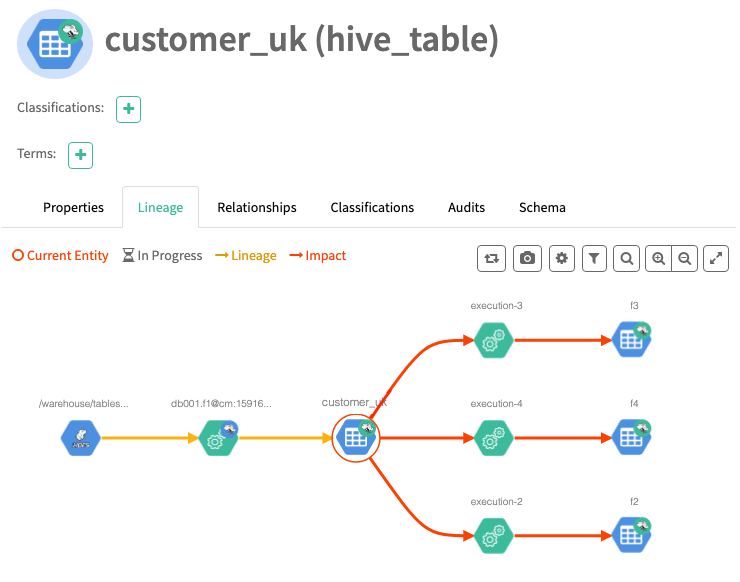

To view the lineage of an entity, open the entity details page and select the Lineage tab.

Figure 1. Spark lineage in the New User Interface

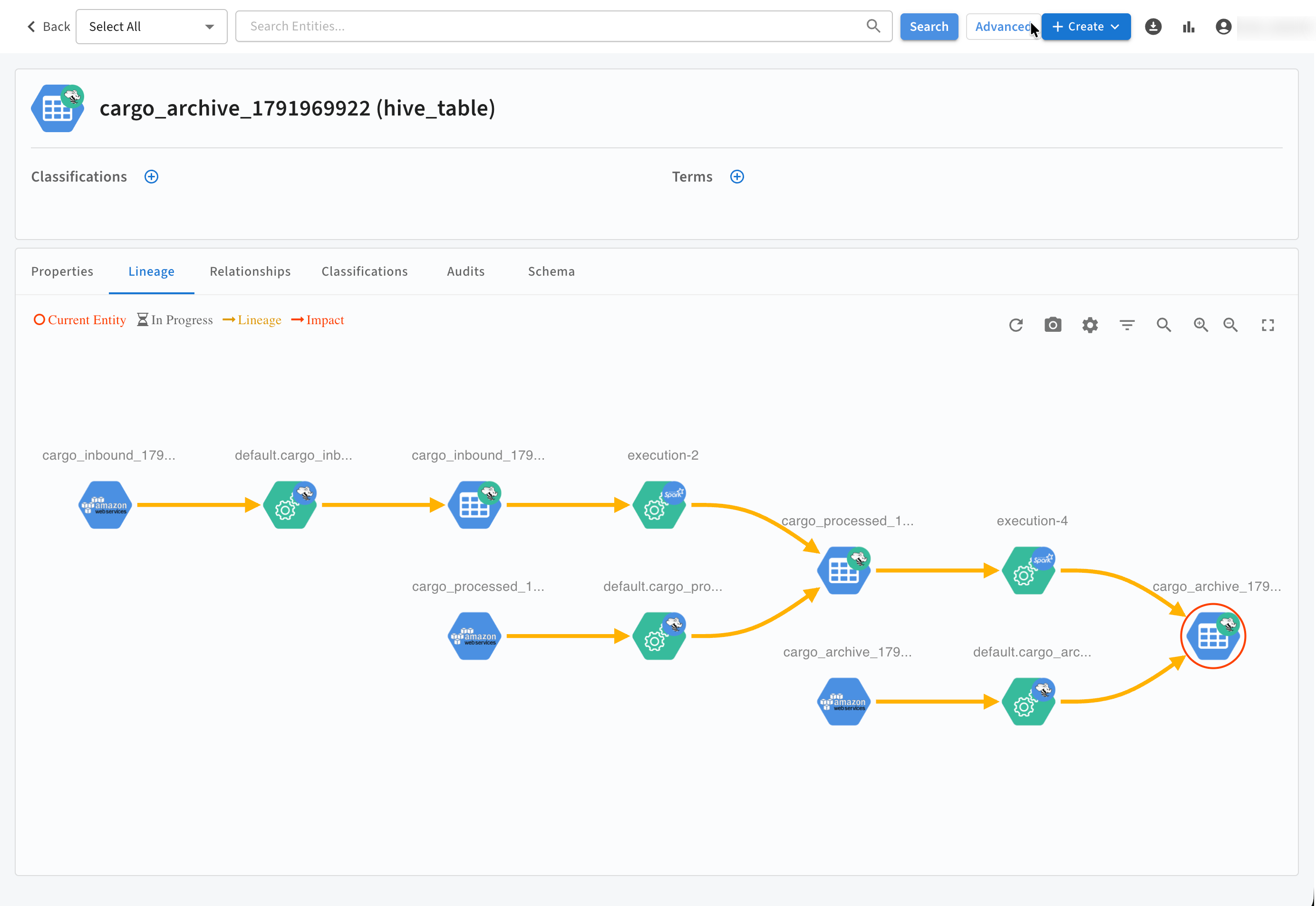

Lineage tab of the cargo_archive hive_table entity in the New User Interface. The cargo_inbound table feeds the cargo_processed table through the Spark process execution-2, and the cargo_processed table feeds the cargo_archive table through the Spark process execution-4. Each table is linked to its storage directory through a Hive process.

The Lineage tab of the cargo_archive hive_table entity in the New User Interface. The cargo_inbound table feeds the cargo_processed table through the Spark process execution-2, and the cargo_processed table feeds the cargo_archive table through the Spark process execution-4. Each table is linked to its storage directory through a Hive process.

Figure 2. Spark lineage in the Classic User Interface

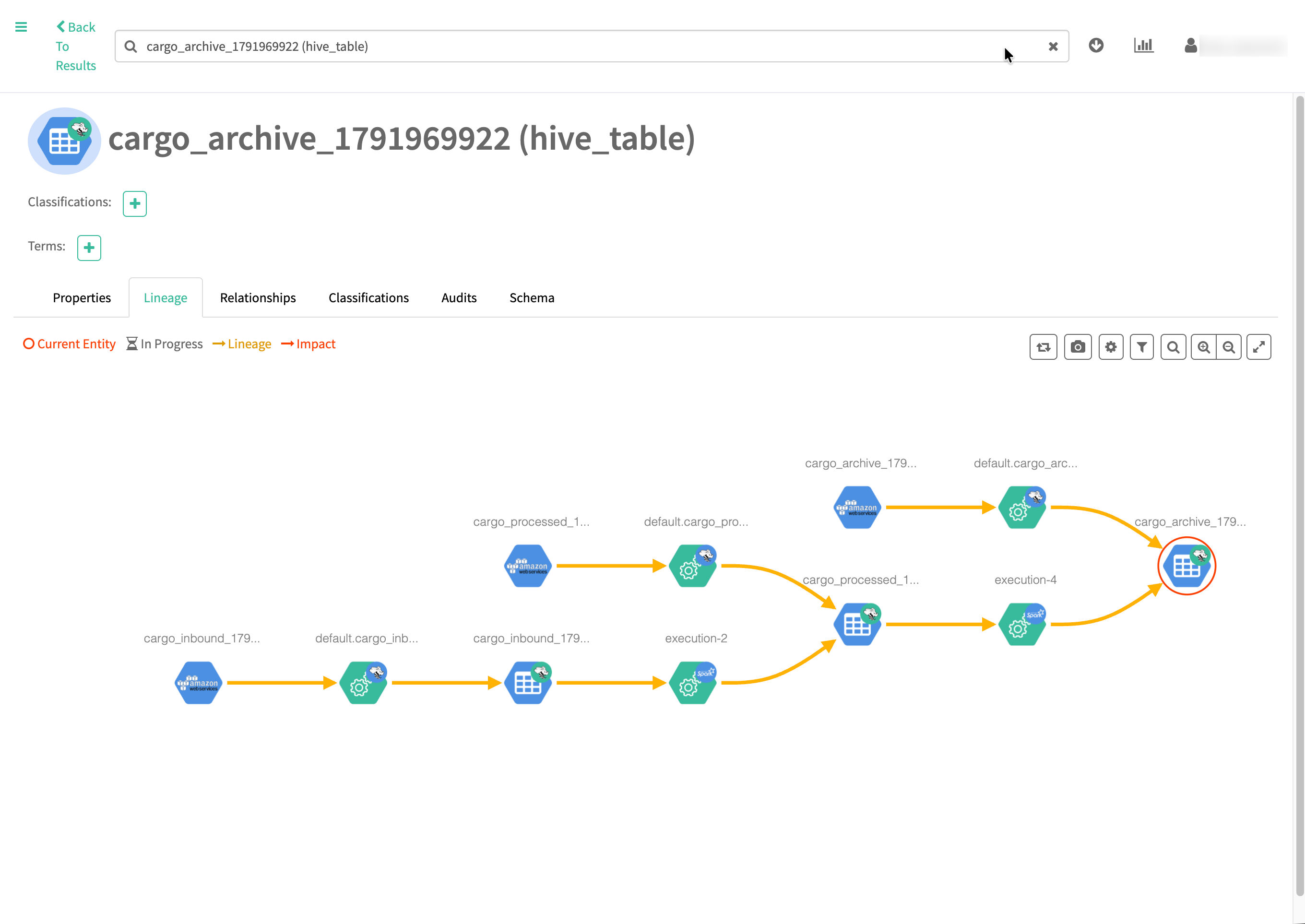

Lineage tab of the cargo_archive hive_table entity in the Classic User Interface. The cargo_inbound table feeds the cargo_processed table through the Spark process execution-2, and the cargo_processed table feeds the cargo_archive table through the Spark process execution-4. Each table is linked to its storage directory through a Hive process.

The Lineage tab of the cargo_archive hive_table entity in the Classic User Interface. The cargo_inbound table feeds the cargo_processed table through the Spark process execution-2, and the cargo_processed table feeds the cargo_archive table through the Spark process execution-4. Each table is linked to its storage directory through a Hive process.

The lineage graph can also contain Hive process nodes, for example default.cargo_inbound_... in the figures. The Hive Metastore hook creates these nodes to link the storage location of a table to the table entity. They are not Spark processes.
