Deploying the CMA server with parcels

Install Cloudera Migration Assistant CSDs and parcels through Cloudera Manager, add CMA_MASTER and CMA_AGENT services on the right hosts, and configure OAuth and Gateway discovery for production clusters.

CMA is deployed as a parcel-based add-on service in Cloudera Manager and requires 1.5 GB of extra memory on the host. For architecture and network requirements, see Cloudera Migration Assistant deployment.

Dependencies

Ensure these components are installed on the CMA host:

  • Python 3.11

  • JDK 17+ with JAVA_HOME set

CMA automatically downloads required Python packages (Ansible, cryptography, database drivers, and others) at startup. In airgapped environments, pre-bundle packages in the CMA extras tarball.

Custom PyPI repository

By default, CMA downloads Python packages from the public PyPI index. In corporate environments with internal PyPI mirrors, set PyPI Index URL (cma_pip_index_url) in the CMA Master or CMA Agent service configuration — for example https://nexus.corp.com/repository/pypi/simple/. When a custom index URL is configured, CMA passes --trusted-host to pip automatically.

If JDK 17+ is not installed, download and install it on the host before deploying the service. When Java is on a default path (/usr/java/jdk-17, /usr/lib/jvm/java-17, or similar), you can omit Cloudera Migration Assistant Java Home.

For general instructions on adding an add-on service, see Extending Cloudera Manager — Add-on Services.

Download URLs

Cloudera Migration Assistant CSDs and parcels are published at https://archive.cloudera.com/cma/version/, where version is the Cloudera Migration Assistant release version (for example, 4.0.0.0).

To find the exact file names for your version, browse the archive:

  • CSDs: https://archive.cloudera.com/cma/version/csd/

  • Parcels: https://archive.cloudera.com/cma/version/parcels/

Table 1.
File Description
CMA_MASTER-version-build.jar CSD for the CMA Master service
CMA_AGENT-version-build.jar CSD for the CMA Agent service
  1. Download both Cloudera Migration Assistant CSD files to the /opt/cloudera/csd/ directory on the Cloudera Manager Server host.
    wget -P /opt/cloudera/csd/ https://archive.cloudera.com/cma/version/csd/CMA_MASTER-version-build.jar
    wget -P /opt/cloudera/csd/ https://archive.cloudera.com/cma/version/csd/CMA_AGENT-version-build.jar
    Cloudera Manager automatically detects the CSD files.
  2. Change the ownership of the CSD files.
    chown cloudera-scm:cloudera-scm /opt/cloudera/csd/CMA_MASTER-version-build.jar /opt/cloudera/csd/CMA_AGENT-version-build.jar
  3. Restart Cloudera Manager for the changes to take effect.
    systemctl restart cloudera-scm-server
  4. Log into Cloudera Manager.
  5. Restart the Cloudera Management Service.
  6. Go to Hosts > Parcels.
  7. Click Parcel Repositories & Network Settings.
  8. Add the Remote Parcel Repository URL for Cloudera Migration Assistant.
    https://archive.cloudera.com/cma/version/parcels/
  9. Click Save & Verify Configuration to commit the change.
  10. Click Close.
    You are redirected to the Parcels page.
  11. Search for CMA, and click Download to download the parcel to the local repository.
  12. After download completes, click Distribute to distribute the parcel to all clusters.

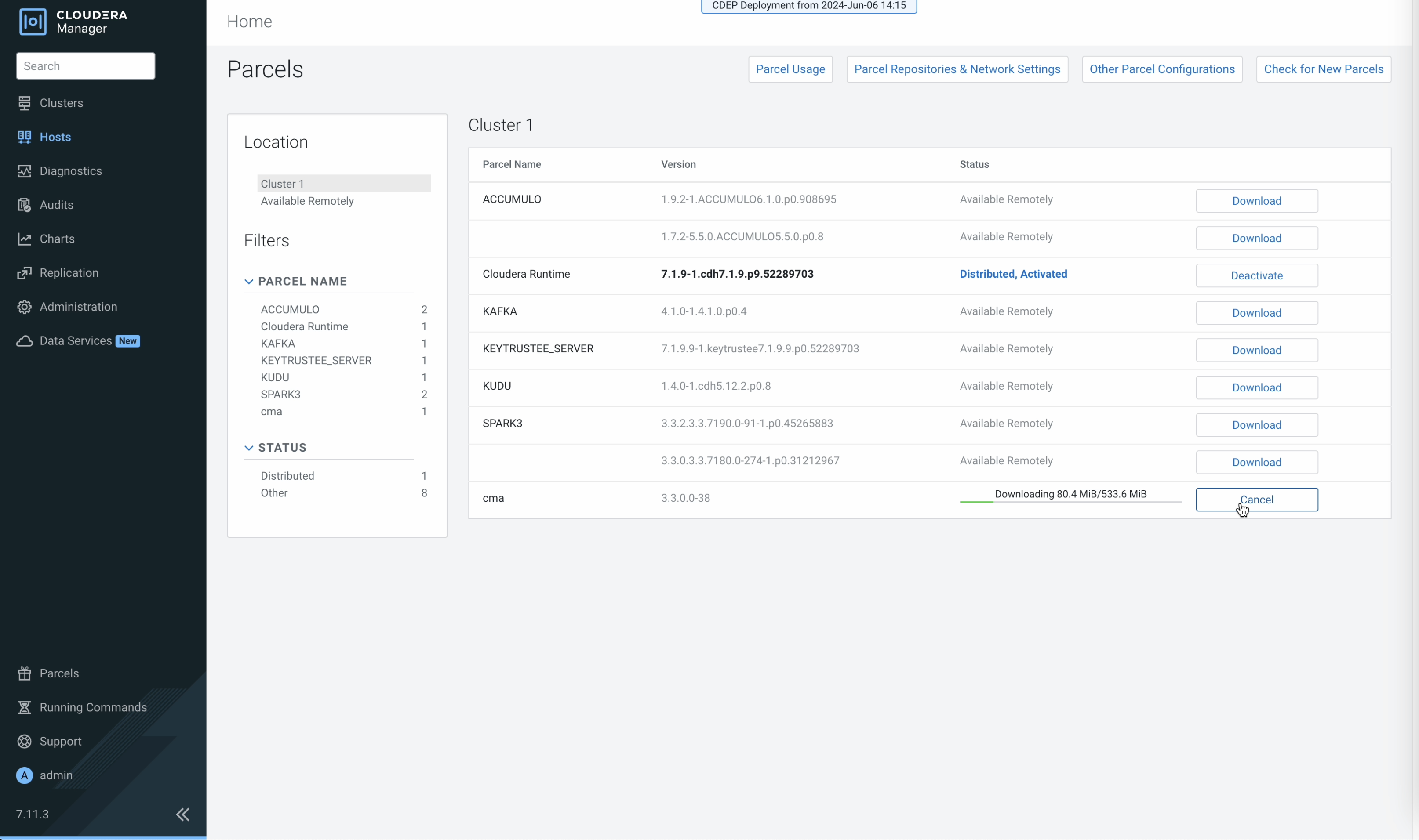

    Figure 1. Distribute the CMA parcel

    Cloudera Manager Parcels page showing Cloudera Migration Assistant parcel distribution
  13. Click Activate to activate the parcel.
  14. Click OK when confirmation is required.
  15. Click Clusters in the left navigation pane.
  16. Select Add Service from the drop-down menu to the right of your cluster.
  17. From the list, select the CMA service type to add, then click Continue. The single CMA parcel provides two service types: CMA_MASTER (central control node) and CMA_AGENT (cluster-side executor).

    The Add Service wizard opens.

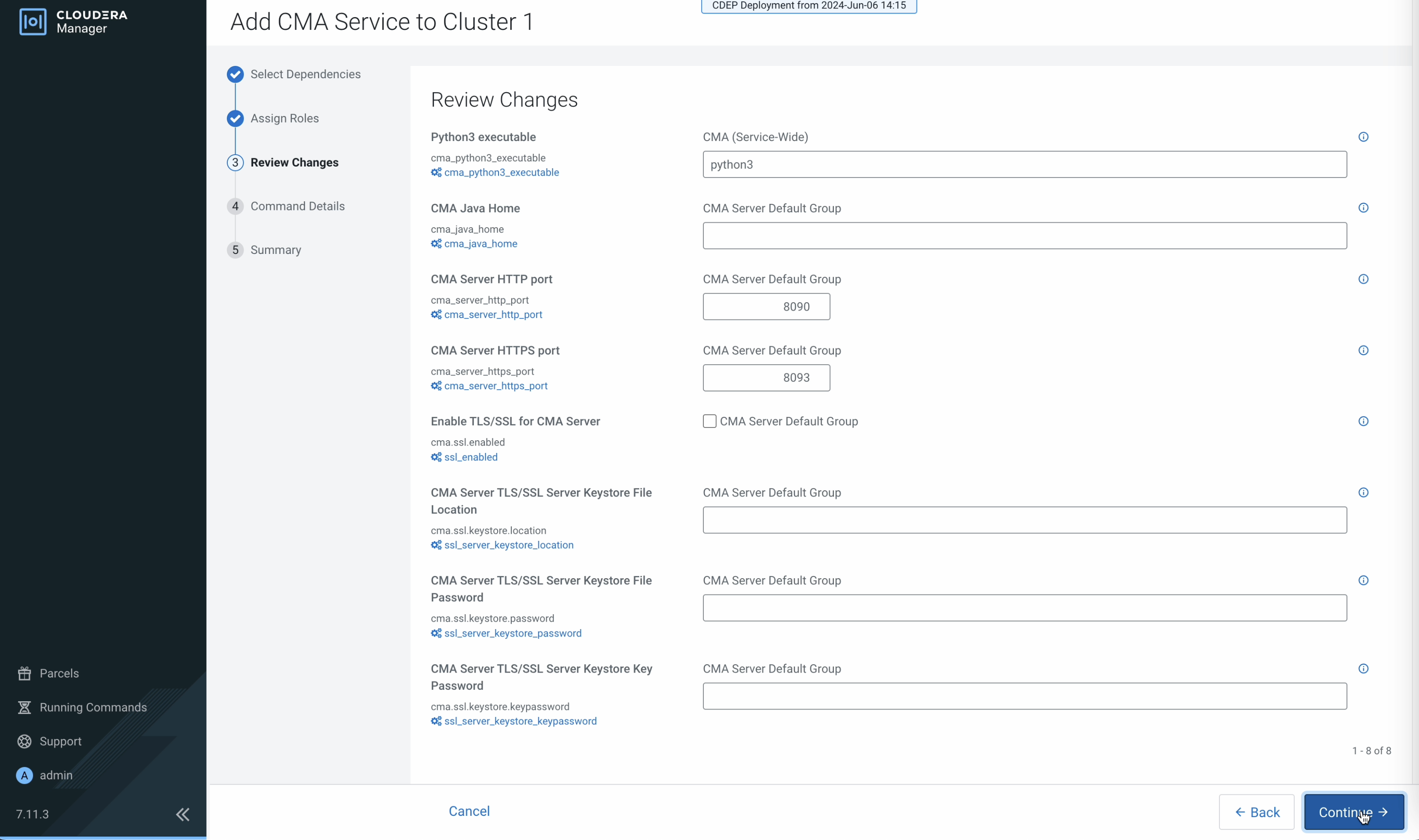

    Figure 2. Add CMA service

    Cloudera Manager Add Service wizard showing Cloudera Migration Assistant service types
  18. Assign the service roles to the hosts where Python 3.11 and JDK 17+ are installed, and click Continue.
  19. Review service configurations and click Continue. At minimum, set OAuth2 client credentials (cma_client_secret, cma_agent_client_secret). If the CMA Agent is on a different cluster from the CMA Master, also set Gateway URL (cma_gateway_url).

    The first run of the service starts. When the command finishes, the service is added to the cluster.

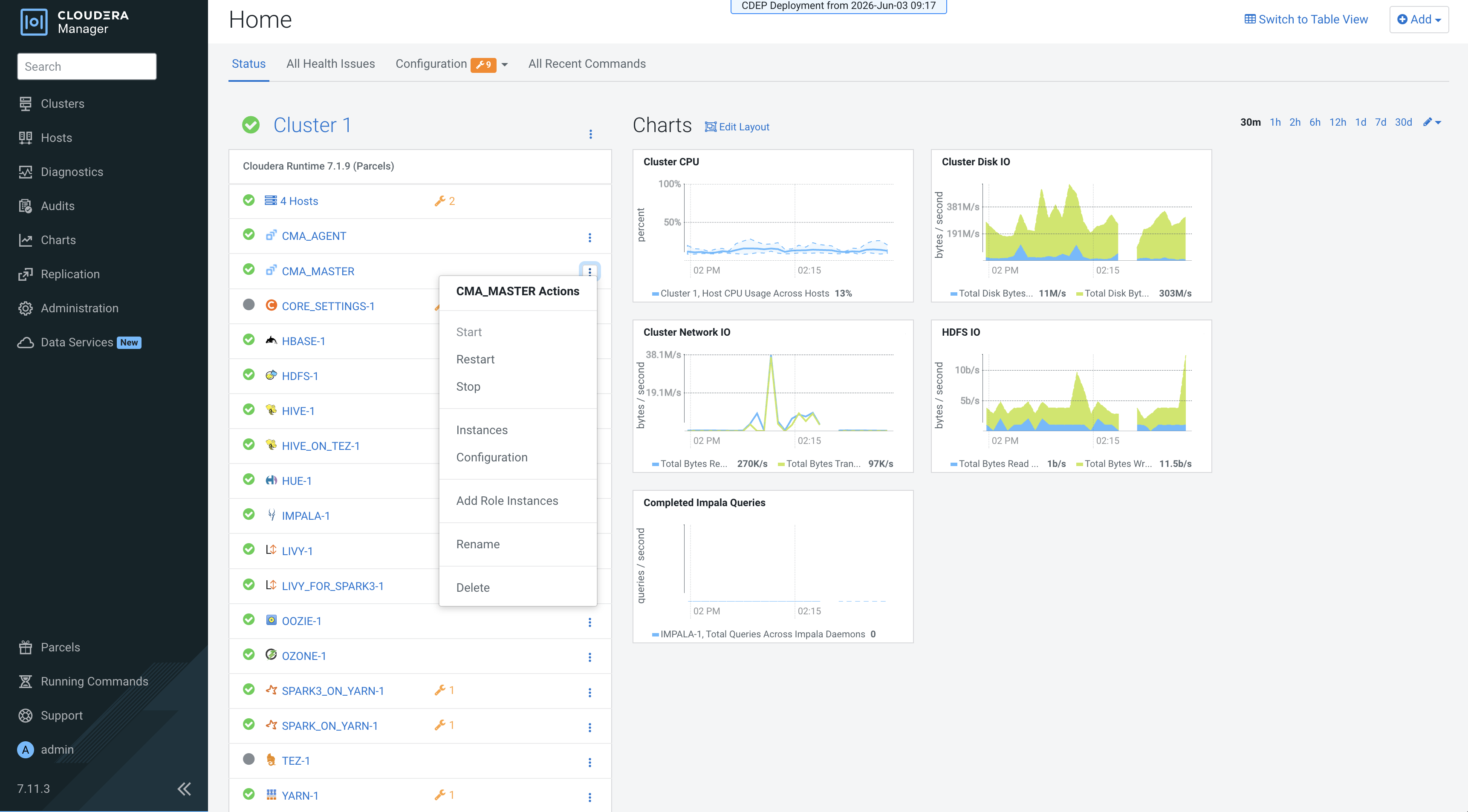

    Figure 3. CMA service started

    Cloudera Manager showing Cloudera Migration Assistant service first run completed
  20. Repeat steps 16–19 to add the other CMA service type if needed (for example, add CMA_AGENT after CMA_MASTER, or vice versa).
  21. Go back to the cluster homepage, open the CMA Master service page, and click the Server UI tab to open the CMA UI.

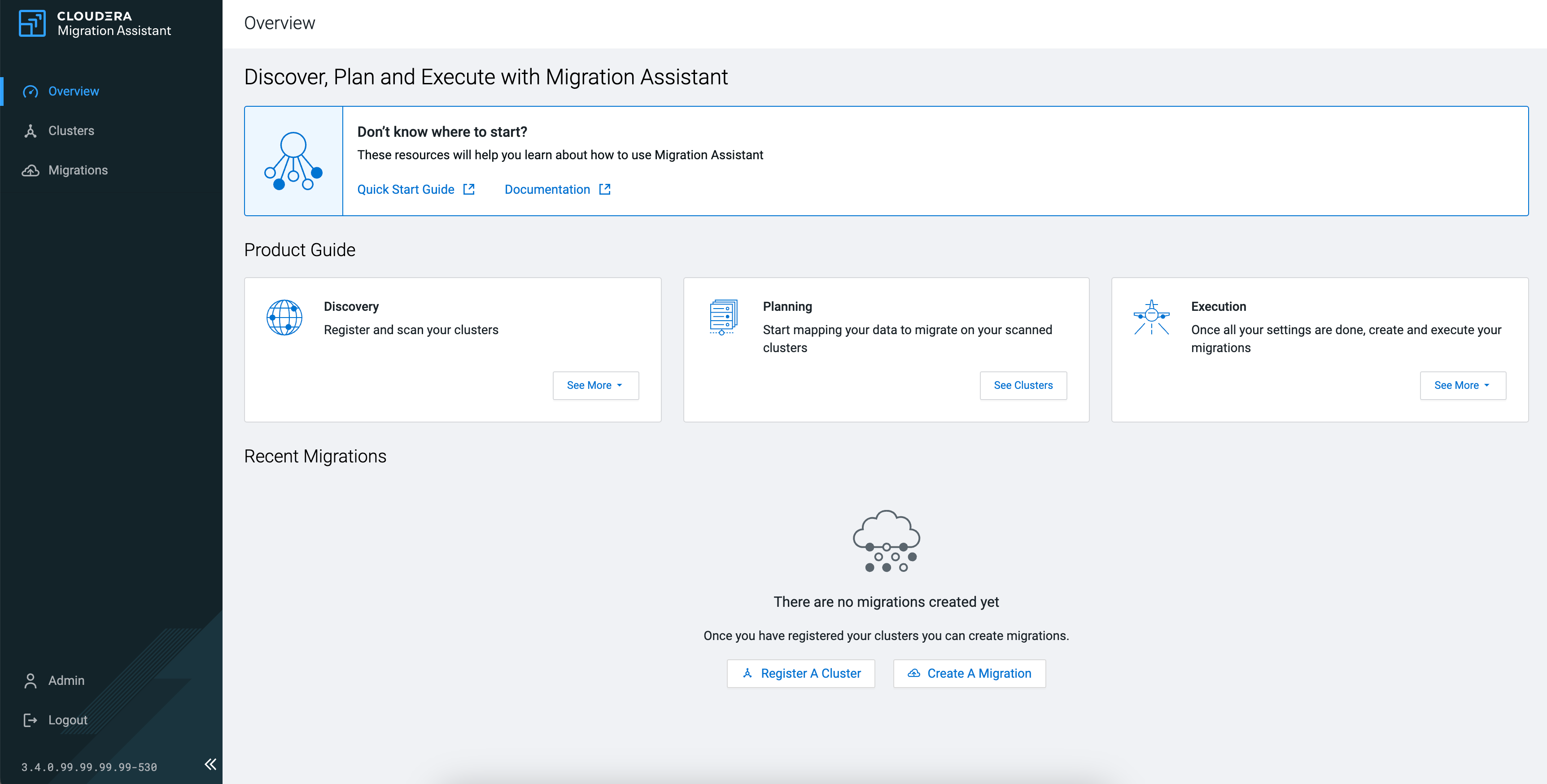

    Figure 4. CMA landing page

    CMA web UI landing page after parcel deployment
  22. Set the CMA Master service dependency to none in the CMA Agent service configuration in Cloudera Manager because Cloudera Manager cannot discover the Master automatically across clusters.
  23. Set the Gateway URL to cma_gateway_url in the CMA Agent service configuration.
    curl -sk https://<master-host>:8093/api/agent/config
Table 2.
Service Description
CMA_MASTER The central control node, including the Gateway Server, Auth Server, Master Server roles. Deploy once, typically on a dedicated host or on the target cluster.
CMA_AGENT The cluster-side executor, including the Agent Server role. Deploy on each source and target cluster that participates in the migration.

You can deploy both services on the same cluster if needed (for example, the target cluster runs both CMA Master and CMA Agent).

Clusters are registered automatically when CMA Agents are deployed and started. For more information, see Registering Clusters.

Agent configuration: When the CMA Agent is deployed on a different cluster from the CMA Master, you must perform the following tasks

The agent uses the Gateway URL to automatically discover the Master host, gRPC port, and Auth Server URI using the discovery endpoint (GET /api/agent/config).

To find the Gateway URL: In Cloudera Manager on the Master's cluster, open the CMA Master service and click the CMA UI link. The URL in your browser (up to the port) is the Gateway URL — typically https://<master-host>:8093 (HTTPS) or http://<master-host>:8090 (HTTP). You can verify it from the agent host with:

You can set up Vault to store secrets. For instructions, see Storing secrets in Vault.

By default, CMA uses an embedded H2 database. A database password is mandatory for all database types, including H2. Cloudera Manager generates credential files (db.properties and auth-db.properties) from the CSD service descriptor at deployment.

For production deployments, CMA supports PostgreSQL as an external database. For setup instructions, see Configuring CMA with PostgreSQL.

CMA uses the following sets of OAuth2 client credentials for trusted communication between its components:

  • Master credentials (cma_client_id / cma_client_secret) — Used by the Gateway Server to authenticate with the Auth Server. Configured on the CMA Master service.

  • Agent credentials (cma_agent_client_id / cma_agent_client_secret) — Used by CMA Agents to authenticate to the Master's gRPC server. These values must match on both the CMA Master and every CMA Agent.

Table 3.
Parameter Default Description
cma_client_id cma OAuth2 client ID for Gateway ↔ Auth Server
cma_client_secret — OAuth2 client secret for Gateway ↔ Auth Server (required)
cma_agent_client_id cma-agent OAuth2 client ID for Agent ↔ Master gRPC
cma_agent_client_secret — OAuth2 client secret for Agent ↔ Master gRPC

Set OAuth credentials in Cloudera Manager under the CMA Master and CMA Agent service configurations. The CSD generates credential files (master-auth.properties, agent-auth.properties) automatically.
