Creating a Cloudera Data Warehouse data connection in Cloudera Data Visualization

Learn how to connect to data when using Cloudera Data Visualization in Cloudera Data Warehouse data service. You can connect Cloudera Data Visualization to a Virtual Warehouse to visualize your data. Similar to using a BI client, you can configure and connect to Virtual Warehouses from different clusters.

You must connect to your data prior to using the data modeling and visualization functions. You make the connection to the Virtual Warehouse when you select your warehouse in the steps below. The Cloudera Data Warehouse URL has the same compute instance ID as your Virtual Warehouse.

When you create a connection, you automatically gain privileges to create and manage datasets associated with this connection, and to build dashboards and visuals within these datasets.

For more information on the Manage data connections privilege, see RBAC permissions.
For instructions on how to define privileges for a specific role, see Setting role privileges.
For instructions on how to assign the administrator role to a user, see Promoting a user to administrator.

When you are creating a Hive or Impala data connection within the same cluster, the connection is considered secure and trusted, and the connection details can be auto-populated with a default authentication user.

Start Cloudera Data Visualization from the left navigation panel in Cloudera Data Warehouse.
On the main navigation bar, click DATA.
The DATA interface appears, open on the Datasets tab.

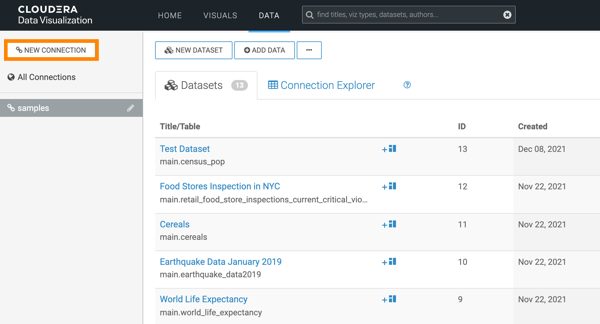

In the side menu bar of DATA, click NEW CONNECTION.

note
The NEW CONNECTION button is only accessible to users assigned to roles with the Manage data connections privilege and to administrators.

The Create New Data Connection modal window appears.

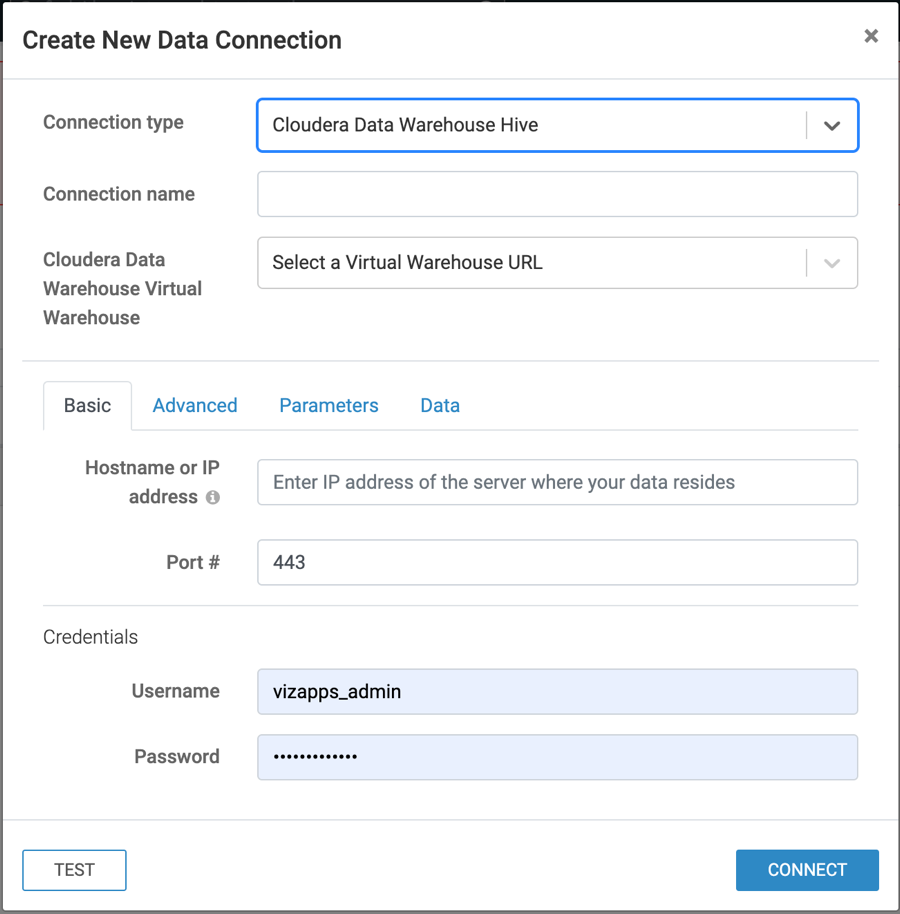

In Connection type, select Cloudera Data Warehouse Hive or Cloudera Data Warehouse Impala, and provide a name for your connection.

note
SQLite connection is not supported in Cloudera Data Warehouse, and the option is disabled in the connection list.
Select a Cloudera Data Warehouse from the list of available warehouses to connect to.
- Data connection within the same cluster
- Data connection outside the cluster
The following fields are auto-populated:

Hostname or IP address

Port #

Username
Enter the following information:

Hostname or IP address

Port #

Username

Password

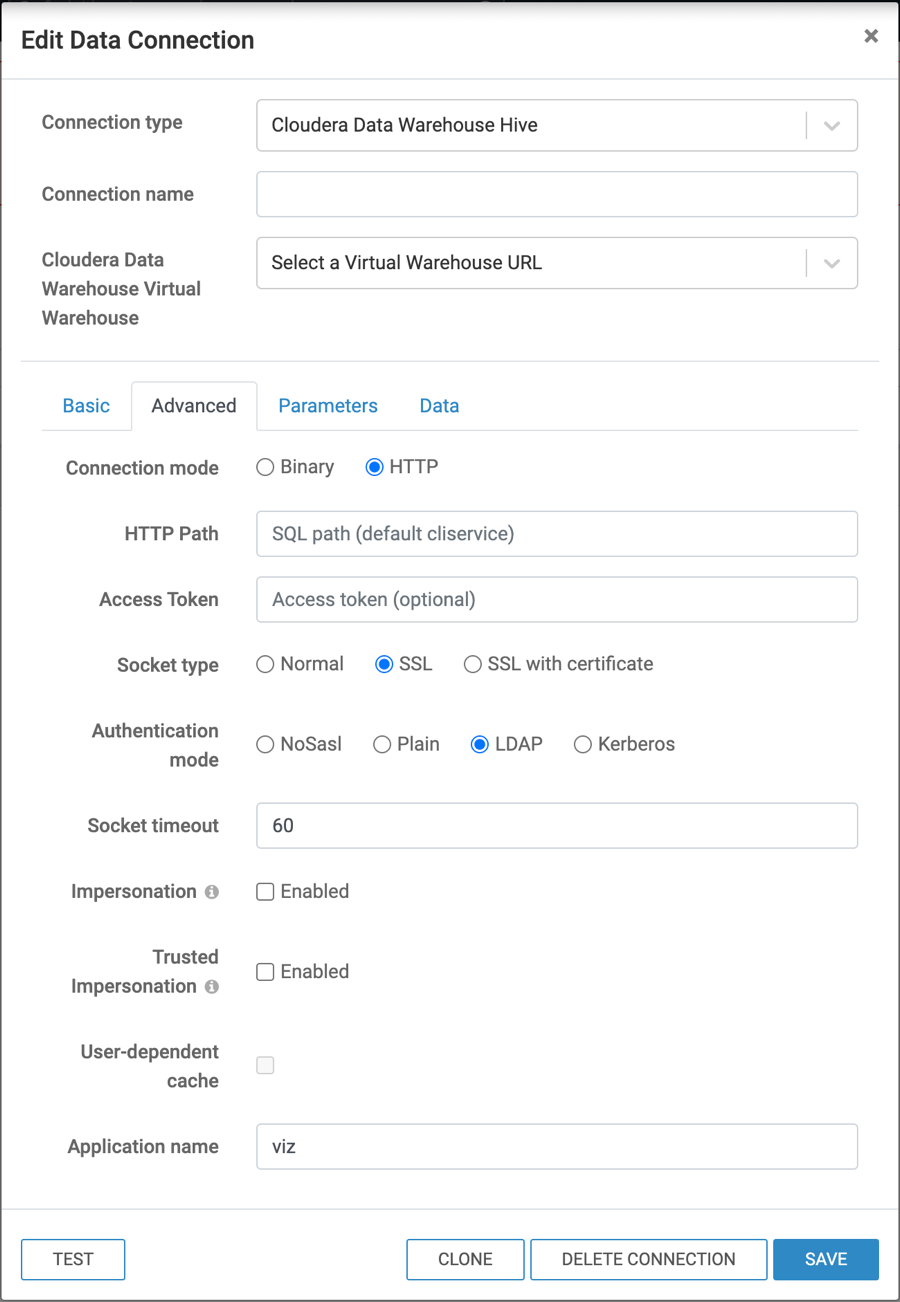

Click the Advanced tab and configure the additional details.

important
Depending on the type of connection you are creating, there can be additional tabs in the Create New Data Connection modal window where you have to adjust further settings.
Click TEST.
If the connection is valid, the system returns a Connection Verified message.
Click CONNECT.

You can create a data set, and then start creating visuals, dashboards, and applications. For more information, see Creating datasets and Creating a visual.
