Provisioning Cloudera Lakehouse Optimizer Data Hub

You can use CDP CLI or Cloudera Management Console to create the Cloudera Lakehouse Optimizer Data Hub.

Consider the following guidelines before you provision the Cloudera Lakehouse Optimizer Data Hub:

Do not provision more than one Cloudera Lakehouse Optimizer Data Hub per environment.
Use Cloudera on cloud 7.3.1.500 and Cloudera Manager 7.13.1.500 and higher versions to create the Cloudera Lakehouse Optimizer Data Hub.
Enable the Ranger authorization for S3 authorization when you create the Cloudera Open Data Lakehouse environment. For more information, see Registering RAZ-enabled AWS environment and Registering RAZ-enable Azure environment.
Assign the DataHubCreator role to the user creating the Data Hub. For more information about roles, see Understanding account roles and resource roles.

Ensure that the environment has the following minimum configuration to support Cloudera Lakehouse Optimizer:
- The AWS environment must have 1x m5.4xLarge (Master Node); 2x r5d.xLarge (Worker Nodes); r5d.xLarge (Compute Nodes - 0 by default).
- The Azure environment must have 1x Standard_D16d_v5 (Master Node)- 2x Standard_E8ds_v5 (Worker Nodes)- 0x Standard_E8ds_v5 (Compute Nodes - 0 by default).
important
Enable autoscaling on the compute node before you use Cloudera Lakehouse Optimizer.

Using the recommended minimum cluster configuration requirements for the Data Hub ensures that the cluster is fully functional and stable to meet the Cloudera Lakehouse Optimizer requirements.
Click the following tabs to view the methods available to you to create a Cloudera Lakehouse Optimizer Data Hub:
- CLI
- UI
CDP CLI: You can use the following sample CDP CLI command to create the Data Hub in an AWS environment:
cdp datahub create-aws-cluster \ --profile default \ --environment-name [***ENVIRONMENT NAME***] \ --cluster-name [***DATA HUB NAME***] \ --cluster-template-name "7.3.1 - Lakehouse Optimizer" \ --instance-groups nodeCount=0,instanceGroupName=compute,instanceGroupType=CORE,instanceType=r5d.xlarge,rootVolumeSize=200,attachedVolumeConfiguration=\[\{volumeSize=150,volumeCount=1,volumeType=ephemeral\}\],recoveryMode=MANUAL,volumeEncryption=\{enableEncryption=true\} nodeCount=0,instanceGroupName=gateway,instanceGroupType=CORE,instanceType=m5.2xlarge,rootVolumeSize=200,attachedVolumeConfiguration=\[\{volumeSize=100,volumeCount=1,volumeType=gp3\}\],recoveryMode=MANUAL,volumeEncryption=\{enableEncryption=true\} nodeCount=1,instanceGroupName=master,instanceGroupType=GATEWAY,instanceType=m5.4xlarge,rootVolumeSize=200,attachedVolumeConfiguration=\[\{volumeSize=100,volumeCount=1,volumeType=gp3\}\],recoveryMode=MANUAL,volumeEncryption=\{enableEncryption=true\} nodeCount=2,instanceGroupName=worker,instanceGroupType=CORE,instanceType=r5d.xlarge,rootVolumeSize=200,attachedVolumeConfiguration=\[\{volumeSize=100,volumeCount=1,volumeType=gp3\}\],recoveryMode=MANUAL,volumeEncryption=\{enableEncryption=true\} \ --cloudera-runtime-version=7.3.1-1.cdh7.3.1.p500.gbn \ --cloudera-manager-version=7.13.1.500-gbn \ --os-version-for-gbn redhat8
You can use the following sample CDP CLI command to create the Data Hub in an Azure environment:
cdp datahub create-azure-cluster \ --profile default \ --environment-name [***ENVIRONMENT NAME***]\ --cluster-name [***DATA HUB NAME***] \ --cluster-template-name "CLO-731-1" \ --instance-groups nodeCount=1,instanceGroupName=master,instanceGroupType=GATEWAY,instanceType=Standard_D16s_v5,rootVolumeSize=300,attachedVolumeConfiguration=\[\{volumeSize=100,volumeCount=1,volumeType=StandardSSD_LRS\}\],recoveryMode=MANUAL nodeCount=2,instanceGroupName=worker,instanceGroupType=CORE,instanceType=Standard_E8ds_v5,rootVolumeSize=200,attachedVolumeConfiguration=\[\{volumeSize=100,volumeCount=1,volumeType=StandardSSD_LRS\}\],recoveryMode=MANUAL nodeCount=0,instanceGroupName=compute,instanceGroupType=CORE,instanceType=Standard_E8ds_v5,rootVolumeSize=200,attachedVolumeConfiguration=\[\{volumeSize=100,volumeCount=1,volumeType=StandardSSD_LRS\}\],recoveryMode=MANUAL nodeCount=0,instanceGroupName=gateway,instanceGroupType=CORE,instanceType=Standard_D8ds_v5,rootVolumeSize=200,attachedVolumeConfiguration=\[\{volumeSize=100,volumeCount=1,volumeType=StandardSSD_LRS\}\],recoveryMode=MANUAL \ --cloudera-runtime-version=7.3.1-1.cdh7.3.1.p500.gbn \ --cloudera-manager-version=7.13.1.500-gbn \ --os-version-for-gbn redhat8
Cloudera Management Console

Ensure that the required AWS environment or Azure environment is available and healthy. For more information about registering an AWS environment or an Azure environment, see Register an AWS environment or Register an Azure environment.

Go to the Cloudera Management Console > Data Hub Clusters page.

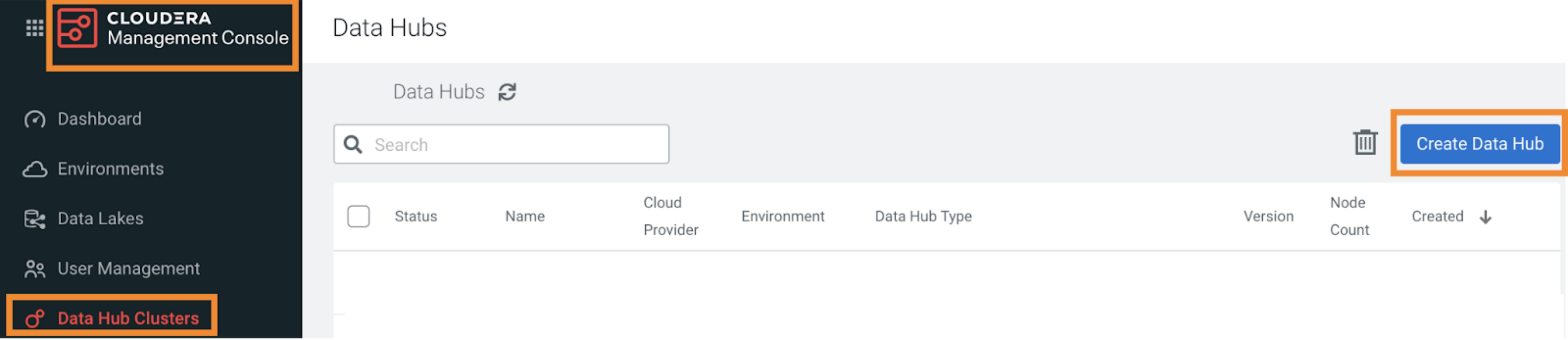

Click Create Data Hub as shown in the following screenshot:

Perform the following steps on the Provision Data Hub page:

Choose the required environment from the Selected Environment with running Data Lake list.

Choose 7.3.1 - Lakehouse Optimizer for AWS or 7.3.1 - Lakehouse Optimizer for Azure from the Cluster Definition list in the Services section.
tip
The Cloudera Lakehouse Optimizer Data Hub is a Spark compute cluster which contains the Cloudera Lakehouse Optimizer service and all its components.
The Data Hub services include HDFS, Hive, Hue, Livy for Spark 3, Oozie, Queue Manager, Spark 3, YARN, Zeppelin, and Zookeeper.
The Data Hub performs the following tasks:

Communicates with the Hive Metastore (HMS) for the required Iceberg tables.

Communicates with Livy and the Spark engine to perform the Spark actions.

Cloudera Lakehouse Optimizer stores service resources to the defined storage location. The service resources consists of the following elements:

Policy resources which include the JEXL script and JSON file.

Association files.

Event logs. The event logs are logged in an append-only file, where each event is a maintenance task.

The sys.task_events Iceberg table into which the event logs are ingested automatically.

Task metadata JSON files which include the maintenance actions, Spark action results, and Spark computation metrics.

When the Cloudera Lakehouse Optimizer service is initiated, it starts to maintain the default namespace. The default namespace is configured in the Cloudera Manager > Clusters > cloudera_lakehouse_optimizer > Configuration > Namespace required by DLM property.

Enter a unique Cluster Name in the General Settings section.
The cluster name must be at least five characters long. It must start with a lowercase letter, end with an alphanumeric character, and must have only lowercase alphanumeric characters and hyphens.

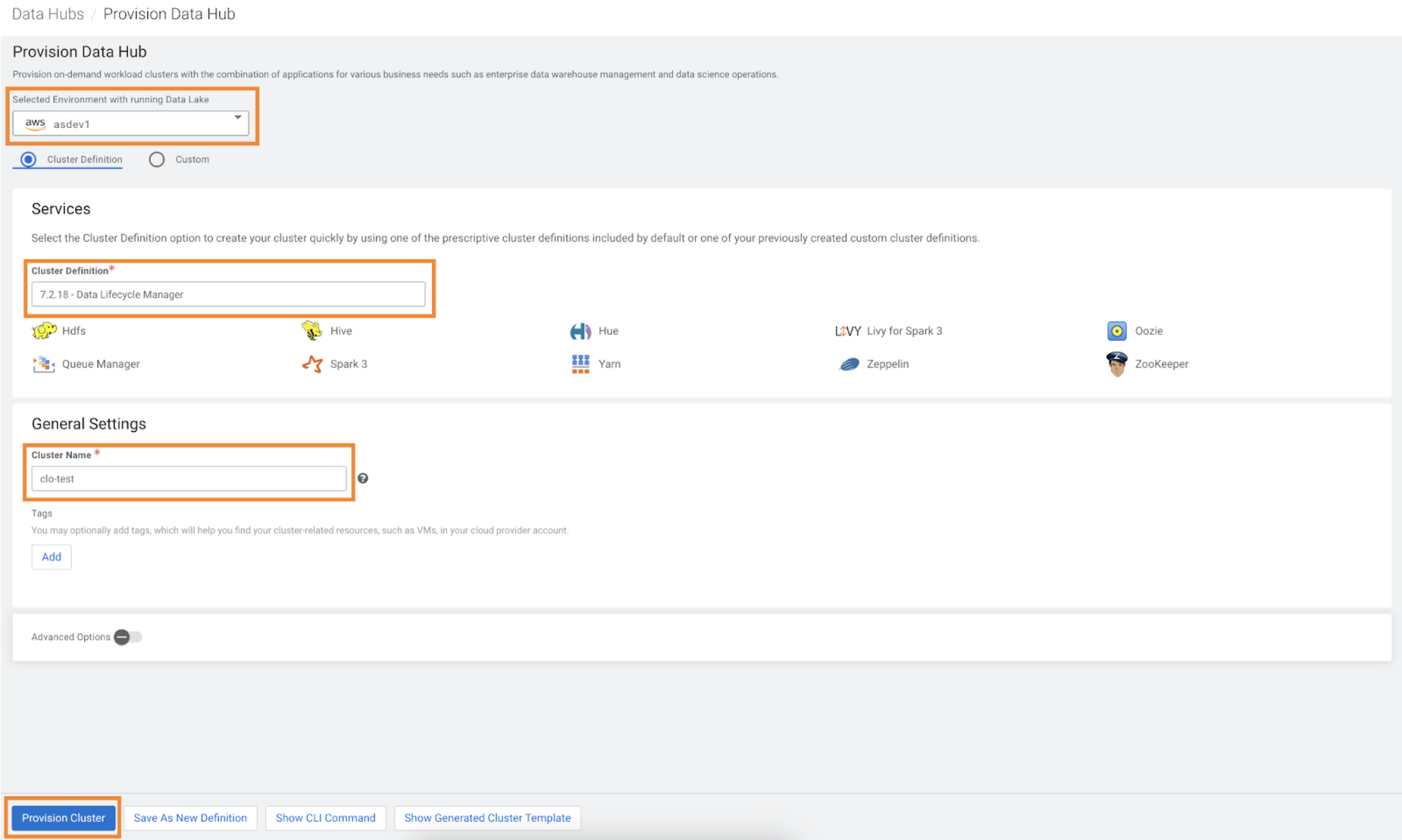

Click Provision Cluster as shown in the following screenshot:

The Data Hub appears on the Data Hub Clusters page. The Data Hub name is the same as the cluster name.
The Data Hub appears on the Data Hub Clusters page. The Data Hub name is the same as the cluster name.
After you create the Data Hub, enable autoscaling for the compute node in Management Console. For more information, see Configuring autoscaling.

Go to the Lakehouse Optimizer page to verify whether the environment is accessible or not.
