Configuring Ozone STS for on premises Data Sharing

Enable the Ozone Security Token Service (STS) and Ranger action-matcher support so that REST Catalog can vend temporary Ozone S3 credentials for on premises Data Sharing.

Data sharing on Cloudera Object Store (powered by Apache Ozone) storage requires Ozone to issue AWS STS-compatible, short-lived credentials (AssumeRole) that the Knox IDBroker exchanges for external clients. This configuration applies only when the data being shared is stored on Ozone S3 in a Cloudera on premises deployment.

  • Complete Configuring Hive Metastore as a REST Catalog for Ozone storage, including the Ozone safety-valve properties.
  • Complete Installing the Metering V2 Service.
    • If Metering V2 is TLS-enabled, import the Metering V2 certificate authority (metering-scm-ca) into the Hive Metastore truststore.
  • Ranger and Ozone must support the ASSUME_ROLE access type and inline-policy grants. This is available in Cloudera Runtime 7.3.2.20000 and later service packs.
  • Ozone STS and the Ranger action-matcher condition for Ozone service definitions must be available in your build.
  1. Enable the S3 STS (AssumeRole) feature.

    A single Cloudera Manager setting turns on both the Ozone STS feature flag (ozone.s3g.sts.http.enabled) and the Ranger action-matcher condition for Ozone service definitions (ranger.servicedef.ozone.enableActionMatcherInPoliciesCondition) at the same time. The action-matcher condition lets Ranger evaluate the ASSUME_ROLE access type when the Ozone S3 Gateway requests a session policy during STS token generation.

    1. In Cloudera Manager, go to Clusters > OZONE-1 > Configuration and search for the word assumeRole.
    2. Select Enable S3 STS (AssumeRole), then click Save Changes.

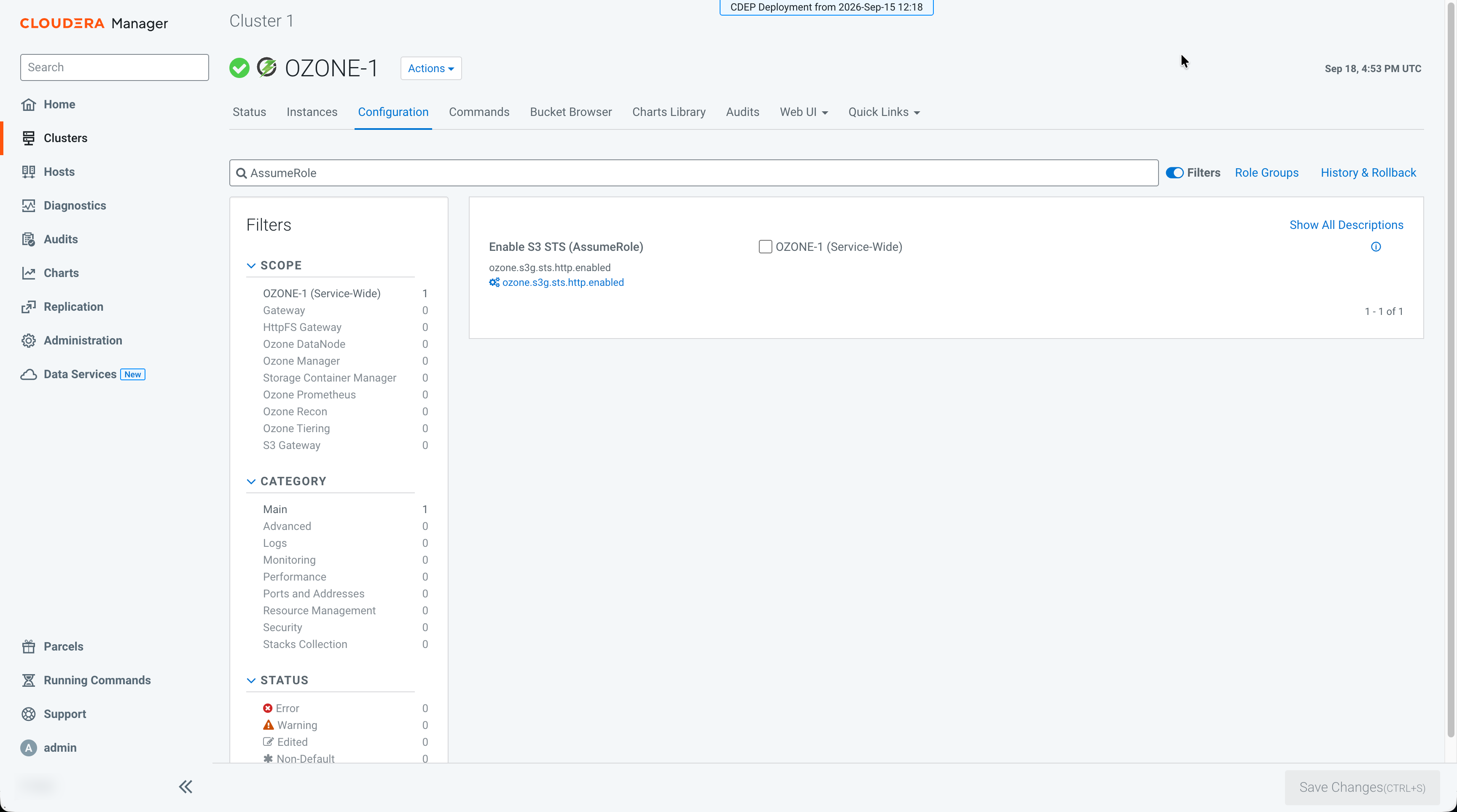

      Figure 1. Enable S3 STS (AssumeRole) in Ozone configuration
    3. Wait about 30 seconds until the stale configuration indicator appears next to the Actions dropdown, and then click the Stale Configuration: Restart needed icon.

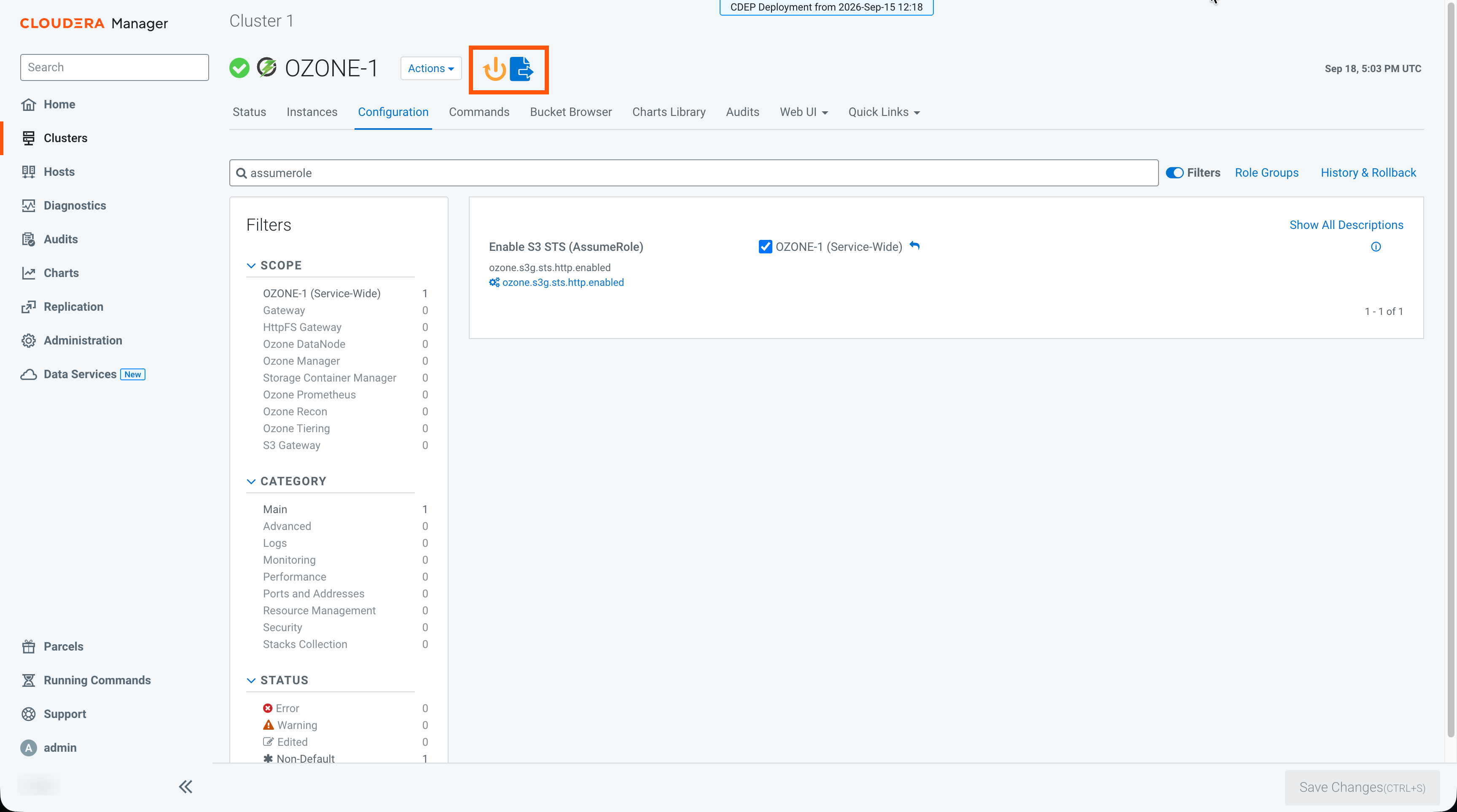

      Figure 2. Stale configuration restart needed after enabling AssumeRole
    4. Click Restart Stale Services, ensure Regular Restart is selected, and then click Continue.
    5. When the restart completes, click Finish.
  2. Create the Ranger role that Ozone STS uses to generate session credentials for the REST Catalog, as described in Creating the Ranger role for Ozone STS.
  3. Configure the Knox IDBroker for the Ozone S3 Gateway, as described in Configuring the Knox IDBroker for Ozone S3 environments.
  4. Declare the cdp-datashare-access and cdp-share-management Knox topologies for Ozone data sharing, as described in Declaring Knox topologies for on premises Data Sharing.
  5. Trust the Ozone STS and S3 Gateway certificate in the IDBroker truststore, as described in Trusting the Ozone STS certificate in the Knox IDBroker truststore.

REST Catalog can now vend temporary Ozone S3 credentials to external clients. For a table stored on Ozone, the /credentials response returns an s3.endpoint for the Ozone S3 Gateway and temporary s3.access-key-id, s3.secret-access-key, and s3.session-token values. Clients use those credentials against the gateway; the vended storage path prefix is s3a:// and matches the translated Ozone link bucket name, not the original ofs:// table location. For a working example, see Supported REST Catalog APIs for accessing the data.

Continue with Creating the Ranger role for Ozone STS.
