Creating a Data Share

Learn how resource owners or Data Share administrators can share Iceberg tables in Cloudera by registering external clients and creating Data Shares using CDP CLI commands in Cloudera on cloud.

Resource owners or Data Share administrators who want to share their Iceberg tables in Cloudera with external clients must first register the external client (Data Consumer) in the Cloudera on cloud environment. This provisions a CLIENT_ID and CLIENT_SECRET for the external user.

After registering the external user, the resource owner can creates a Data Share. A Data Share packages specified data assets (Iceberg tables) into a shareable unit and optionally grants access to registered external users at creation time

Table 1. Setting up Data Shares in AWS and Azure environments
Activity AWS environments Azure Environments
Registering external users (Data Consumers) Use one of the following: Use the following:
Creating a Data Share Use one of the following: Do the following:
  • Creating Ranger groups to represent Data Shares and adjusting access to them
  • For more information, see Managing Ranger policies.
1 For Cloudera on cloud environments registered in AWS, the CDP CLI also provides commands to manage the full Data Share lifecycle, including listing, updating, activating, deactivating, and deleting shares, as well as managing asset membership and external user access. For more information, see Creating a Data Share with CDP CLI.

Managing Ranger policies

Learn how to manage your Ranger policies to authenticate your external users.

The Ranger Administrator must maintain policies for the set of databases and tables for the Ranger role and group to enable read access for these assets.

  1. In the Allow Conditions, a SELECT and SHOW permission has to be maintained for the databases or tables to be shared to provide a READ-only access.

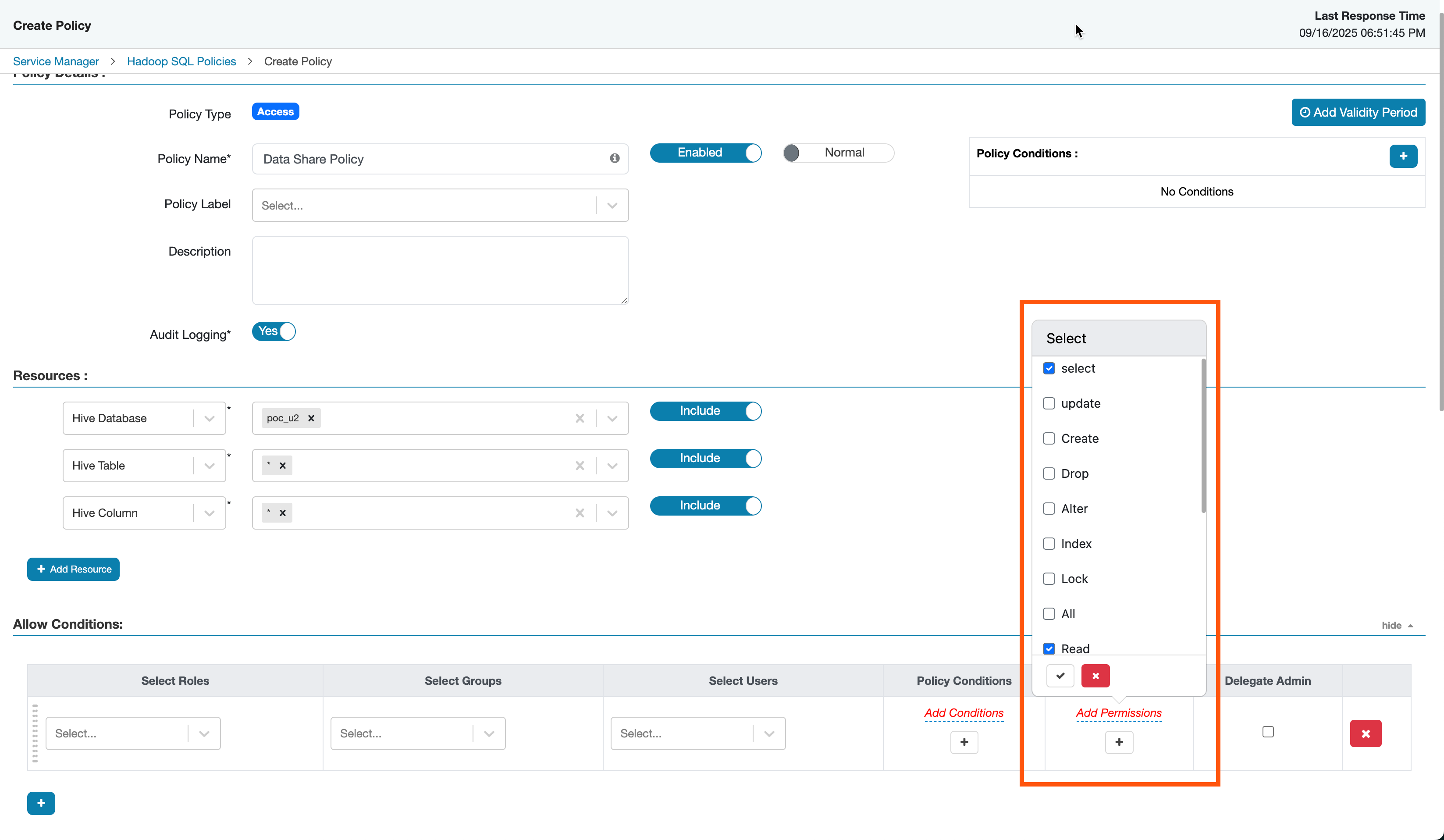

  2. Go to Apache Ranger > Resource Policies > Hadoop SQL and create a policy for the assets to be shared.
Create a Data Share policy in Ranger for the Role created in Creating a Data Share with CDP CLI with the following command
curl -k -u [***CDP_ADMIN_USER***]:[***PASSWORD***] -H "Accept: application/json" -H "Content-Type: application/json" -X POST "https://[***RANGER-HOST-NAME***]:8443/[***DATALAKE-NAME***]/cdp-share-management/ranger/service/public/v2/api/policy/" -d  '{"service":"hive_service_name", "policyType": 0, "name": "Iceberg Table Policy", "description": "Policy for SELECT access to an CLIENT_ID", "isEnabled": true, "resources": { "database": { "values": "[***DATABASE_NAME***]" }, "table": { "values": "[***TABLE_NAME***]" } ,"column": { "values": ["*"] } } , "policyItems": [ { "accesses": [ { "type": "select" } ], "users": [], "groups":[], "roles": "[***CLIENT_ROLE***]", "conditions": [] } ] }'
curl -k -u [***CDP_ADMIN_USER***]:[***PASSWORD***]  -H "Accept: application/json" -H "Content-Type: application/json" -X POST "https://dldanew-vxtt5w-master0.dldanew.svbr-nqvp.int.cldr.work:8443/dldanew-vxtt5w/cdp-share-management/ranger/service/public/v2/api/policy/" -d '{"service":"cm_hive", "policyType": 0, "name": "Hive Table Policy", "description": "Policy for SELECT access to an exteral user", "isEnabled": true, "resources": { "database": { "values": ["emp_data"] }, "table": { "values": ["employees"] } ,"column": { "values": ["*"] } } , "policyItems": [ { "accesses": [ { "type": "select" } ], "users": [], "groups":[], "roles": ["testrole13"], "conditions": [] } ] }'

Registering external clients in Cloudera on cloud

Learn how to register external clients in Cloudera on cloud to provision a CLIENT_ID and CLIENT_SECRET.

Ensure that you have the following information before performing the steps:
Share Admin user and password
Username and password of the Cloudera Administrator. For more information, see Cloudera account administrator.
Knox hostname

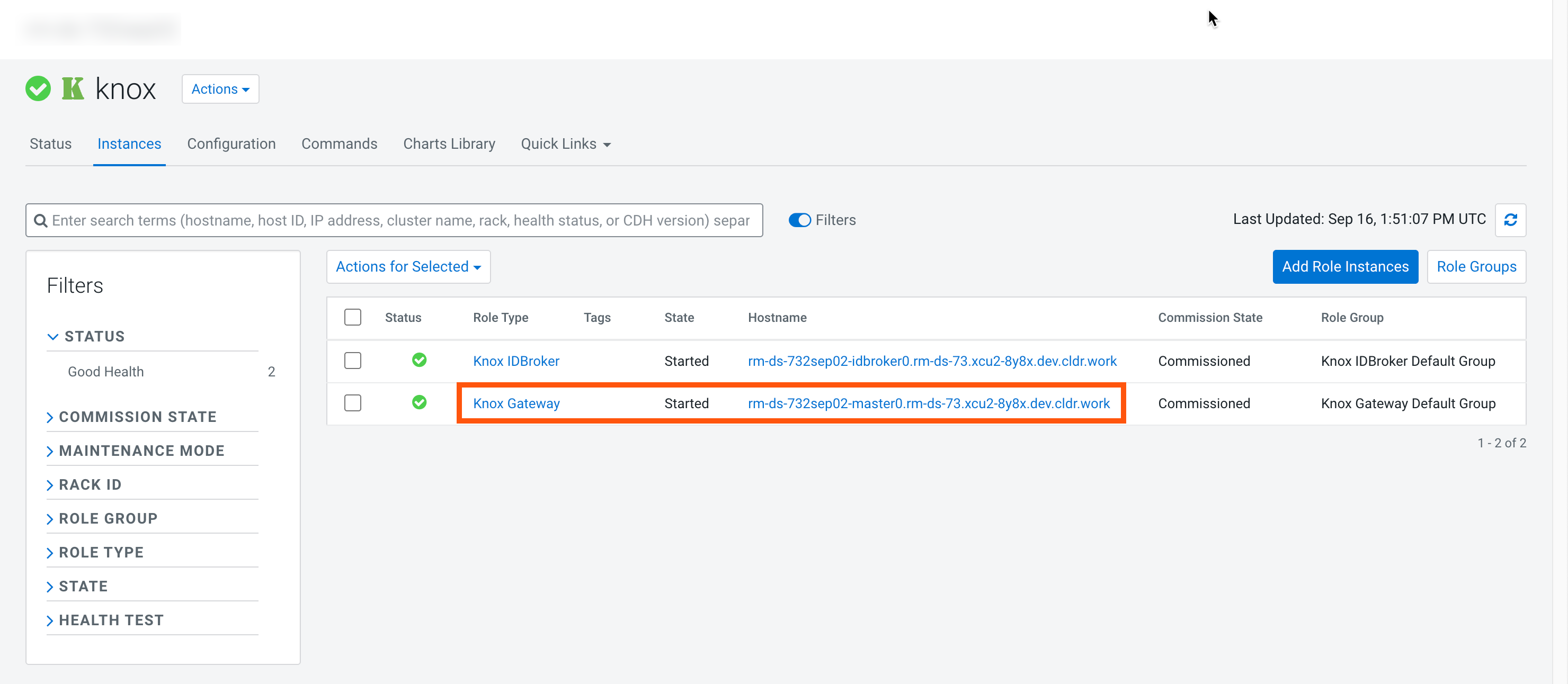

To get the Knox hostname, go to Cloudera Manager > Knox > Instances, and copy the hostname for the Knox Gateway role.
Data Lake name
Go to Management Console > Environments > <***YOUR_ENVIRONMENT_NAME***> > Data Lake Details and copy and make a note of the Data Lake name.
  1. Create the CLIENT_ID and SECRET in Knox by running the following command:
    curl -k -u [***CLOUDERA_ADMIN_USER***]:"[***PASSWORD***] https://[***KNOX-HOST-NAME***]:8443/[***DATALAKE-NAME***]/cdp-share-management/knoxtoken/api/v1/token?doAs=external.user&comment=[***<ADDITION INFO>***]s&md_contact=<[***EMAIL_ID***]>&md_role=<[***ROLE OF THE CLIENT***]> &md_type=[***CLIENT_ID***]" |  jq -r '"CLIENT_ID: \(.token_id) SECRET: \(.passcode)"'
    • doAs=external.user - Sets the value of the external.user
    • comment - Additional comments on the CLIENT
    • md_contact - Client contact metadata, for example, email_id
    • md_role - [***Role for the CLIENT_ID***]
    • md_type - Sets the value of CLIENT_ID
    curl -k -u [***CLOUDERA_ADMIN_USER***]:"[***PASSWORD***] "https://my-datalake-name.int.cldr.work:8443/my-datalake-name/cdp-share-management/knoxtoken/api/v1/token?doAs=external.user&comment=carriers&md_contact=client_name@companay.com&md_role=UnitedAirlinesRole&md_type=[***CLIENT_ID***]" |  jq -r '"CLIENT_ID: \(.token_id) SECRET: \(.passcode)"'

CLIENT_ID : 462babd3-fe5a-4abf-8b47-526897677ad5 SECRET: TkRZeVltRmlaRE10Wm1VMVlTMDBZV0ptTFRoaU5EY3ROVEkyT0RrM05qYzNZV1ExOjpaalV4WWpReFkyWXRObVV6WlMwME4yTm1MVGcyWWpFdE9XSXhZekE0T1RZMU9XTmw='
    By Enterprise Data Lakes, use the following command:
    curl -k -u [***CLOUDERA_ADMIN_USER***]:"[***PASSWORD***]] https://[***LOAD BALANCER***]/[***DATALAKE-NAME***]/cdp-share-management/knoxtoken/api/v1/token?doAs=external.user&comment=[***<ADDITION INFO>***]s&md_contact=[***EMAIL_ID***]&md_role=[***ROLE OF THE CLIENT***] &md_type=[***CLIENT_ID***]" |  jq -r '"CLIENT_ID: \(.token_id) SECRET: \(.passcode)"'
    curl -k -u [***CLOUDERA_ADMIN_USER***]:[***PASSWORD***]:"https://my-loadbalancer-1745504451479-b5765eaee5b22d08.elb.us-west-2.amazonaws.com/dldamedi-28qgc9/cdp-share-management/knoxtoken/api/v1/token?doAs=external.user&comment=carriers&md_contact=client_name@company.com&md_role=UnitedAirlinesRole&md_type=[***CLIENT_ID***]" | jq -r '"CLIENT_ID: \(.token_id) SECRET: \(.passcode)"'
  1. After verifying the Client IDs, you need to create a Ranger group representing the data share. Create a Ranger Group with Client ID as the name of that Group with the following command:
    curl -k -u [***CLOUDERA_ADMIN_USER***]:"[***PASSWORD***] -H "Accept: application/json" -H "Content-Type: application/json" -X POST "https://[***RANGER-HOST-NAME***]:8443/[***DATALAKE-NAME***]/cdp-share-management/ranger/service/xusers/groups/" -d '{"name": "[***CLIENT_ID***]", "description": "group representing a share for a CLIENT_ID"}'
    curl -k -u [***CLOUDERA_ADMIN_USER***]:"[***PASSWORD***] -H "Accept: application/json" -H "Content-Type: application/json" -X POST "https://my-datalake.int.cldr.work:8443/my-datalake-name/cdp-share-management/ranger/service/xusers/groups/" -d '{"name": "462babd3-fe5a-4abf-8b47-526897677ad5", "description": "group representing a share for a CLIENT_ID"}'
    By Enterprise Data Lakes, use the following command:
    curl -k -u [***CLOUDERA_ADMIN_USER***]:"[***PASSWORD***]  -H "Accept: application/json" -H "Content-Type: application/json" -X POST "https://[***RANGER-HOST-NAME***]/[***DATALAKE-NAME***]/cdp-share-management/ranger/service/xusers/groups/" -d '{"name": "[***CLIENT_ID***]", "description": "group representing a share for a CLIENT_ID"}'
    curl -k -u [***CLOUDERA_ADMIN_USER***]:[***PASSWORD***] -H "Accept: application/json" -H "Content-Type: application/json" -X POST "https://my-gateway-hostname.cldr.work:8443/my-datalake-name/cdp-share-management/ranger/service/xusers/groups/" -d '{"name": "462babd3-fe5a-4abf-8b47-526897677ad5", "description": "group representing a share for a CLIENT_ID"}'
  2. Create a new Role and add the created Group to the Role in Ranger with the following command:
    curl -k -u [***CLOUDERA_ADMIN_USER***]:"[***PASSWORD***]  -H "Accept: application/json" -H "Content-Type: application/json" -X POST "https://[***RANGER-HOST-NAME***]:8443/[***DATALAKE-NAME***]/cdp-share-management/ranger/service/public/v2/api/roles/" -d '{ "name": "***CLIENT_ROLE***", "description": "***CLIENT_ROLE DESCRIPTION******", "groups": [ { "name": "***CLIENT_ID CREATED***", "isAdmin": false } ] }'

    curl -k -u [***CLOUDERA_ADMIN_USER***]:"[***PASSWORD***] -H "Accept: application/json" -H "Content-Type: application/json" -X POST "https://my-ranger-hostname.int.cldr.work:8443/my-datalake-name/cdp-share-management/ranger/service/public/v2/api/roles/" -d '{ "name": "SalesDeptRole", "description": "SalesRole description", "groups": [ { "name": "462babd3-fe5a-4abf-8b47-526897677ad5", "isAdmin": false } ] }'
    By Enterprise Data Lakes and, use the following command:
    curl -k -u [***CLOUDERA_ADMIN_USER***]:"[***PASSWORD***]  -H "Accept: application/json" -H "Content-Type: application/json" -X POST "https://[***GATEWAY-HOST-NAME***]/[***DATALAKE-NAME***]/cdp-share-management/ranger/service/public/v2/api/roles/" -d '{ "name": "***CLIENT_ROLE***", "description": "***CLIENT_ROLE DESCRIPTION***", "groups": [ { "name": "***CLIENT_ID CREATED***", "isAdmin": false } ] }'
    curl -k -u [***CLOUDERA_ADMIN_USER***]:[***PASSWORD***] -H "Accept: application/json" -H "Content-Type: application/json" -X POST "https://my-gateway-hostname.int.cldr.work:8443/my-datalake-name/cdp-share-management/ranger/service/public/v2/api/roles/" -d '{ "name": "TestRole1", "description": "TestRole1 description", "groups": [ { "name": "test-group1", "isAdmin": false } ] }'

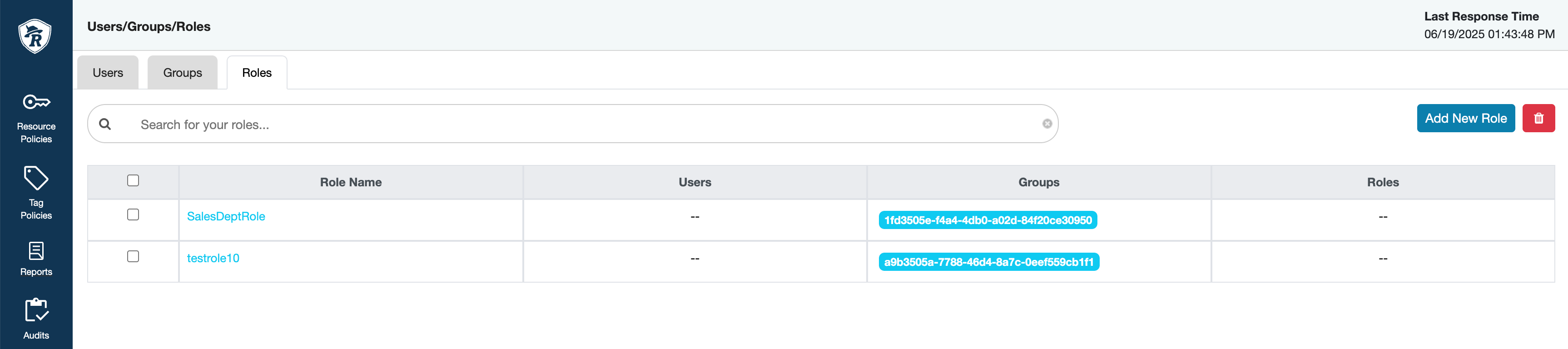

    After running the commands, you can see the roles in Ranger:

    Figure 1. Cloudera Management Console > Environments > ***YOUR_ENVIRONMENT**** > > Apache Ranger > Settings > Roles
  3. Optional: Add the Group to an existing Role with the following commands:

    • Get the RoleId for the RoleName from Ranger Admin via API:

      curl -k -u [***CLOUDERA_ADMIN_USER***]:"[***PASSWORD***] -H "Accept: application/json" -H "Content-Type: application/json" -X GET "https://[***RANGER-HOST-NAME***]:8443/[***DATALAKE-NAME***]/cdp-share-management/ranger/service/public/v2/api/roles/name/<name>"| jq -r '"RoleId: \(.id)"'

    • Add the Group to the Role using RoleId

      curl -k -u [***CLOUDERA_ADMIN_USER***]:"[***PASSWORD***] -H "Accept: application/json" -H "Content-Type: application/json" -X PUT "https://[***RANGER-HOST-NAME***]:8443/[***DATALAKE-NAME***]/cdp-share-management/ranger/service/public/v2/api/roles/<RoleId>" -d '{ "name": "***CLIENT_ROLE***", "description": "***CLIENT_ROLE DESCRIPTION***", "groups": [ { "name": "***CLIENT_ID CREATED***", "isAdmin": false } ] }'

The registration process results in provisioning a CLIENT_ID and CLIENT_SECRET followed by creating Ranger ROLE and adding CLIENT_ID as a Group to the ROLE. You can verify the creation of your Ranger groups and users in Cloudera Management Console > Environments > ***YOUR_ENVIRONMENT**** > > Apache Ranger > Audits > Admin
