Start a New Session

The first step to run a project in the workbench is to start a new session.

  1. Navigate to your project's Overview page.
  2. Click New Session.
    The information presented on this page will depend on which default engine you have chosen for your project: Runtime or Legacy Engines. You can change the default engine later in this task.

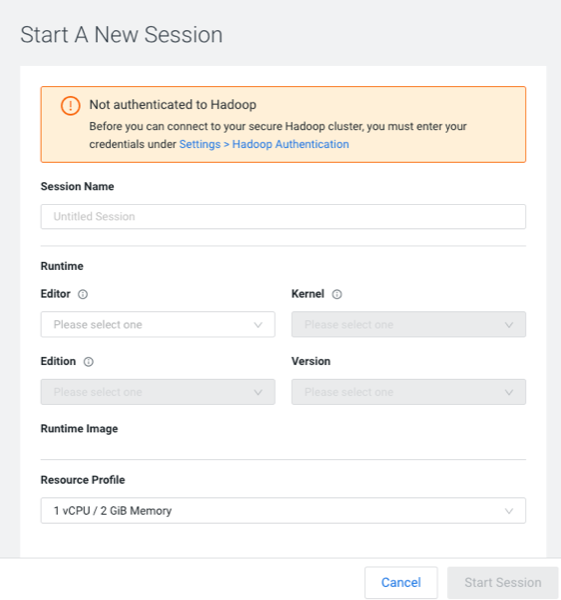

    The Start A New Session dialog box opens.
  3. Check the settings for your session:
    If your project is using ML Runtimes, you will see the following settings:
    Editor
    Selects the Editor; currently only Workbench is supported and therefore the selector is static.
    Kernel
    Selects the Kernel, for example Python 3.7, R4.0.
    Edition
    Selects the Runtime Edition. Initially only Standard variants are supported.
    Version
    Selects the ML Runtimes version.
    If your project is using Legacy Engines, you will see the following settings:
    Editor
    Selects the Editor; currently only Workbench is supported and therefore the selector is static.
    Kernel
    Selects the Kernel. Initially only Python Runtimes are supported.
    Engine Image
    Selects the engine image. Click Configure to display the Project Setting > Advanced window to modify your environment variables and shared memory limit.
    Resource Profile
    The shared memory limit.
