Understanding YARN architecture

YARN allows you to use various data processing engines for batch, interactive, and real-time stream processing of data stored in HDFS or cloud storage like S3 and ADLS. You can use different processing frameworks for different use-cases, for example, you can run Hive for SQL applications, Spark for in-memory applications, and Storm for streaming applications, all on the same Hadoop cluster.

YARN extends the power of Hadoop to new technologies found within the data center so that you can take advantage of cost-effective linear-scale storage and processing. It provides independent software vendors and developers a consistent framework for writing data access applications that run in Hadoop.

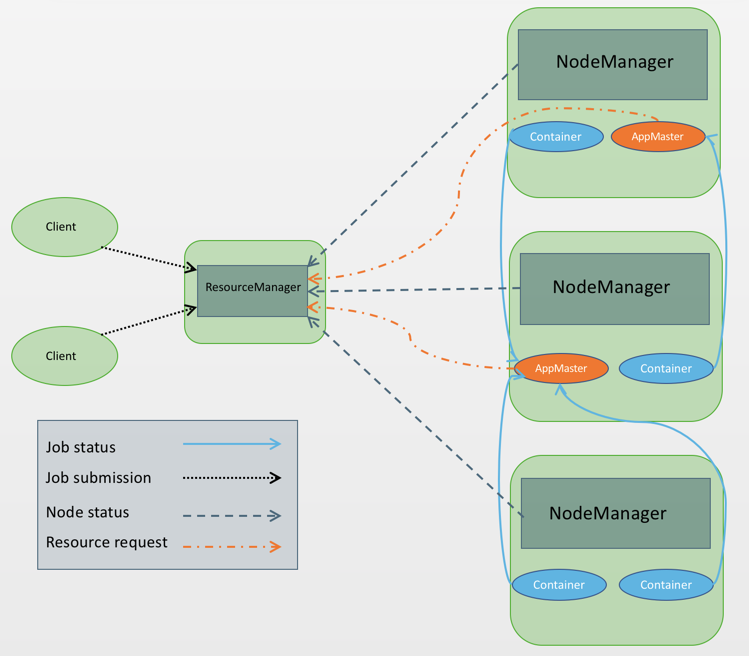

YARN architecture and workflow
YARN has three main components:
  • ResourceManager: Allocates cluster resources using a Scheduler and ApplicationManager.

  • ApplicationMaster: Manages the life-cycle of a job by directing the NodeManager to create or destroy a container for a job. There is only one ApplicationMaster for a job.

  • NodeManager: Manages jobs or workflow in a specific node by creating and destroying containers in a cluster node.
